RM35X0E _58 Vehicle Interior _079257 SUPPLEMENTAL RESTRAINT SYSTEMS _0385034 AIRBAG SYSTEM(for Type B) C

SUPPLEMENTAL RESTRAINT SYSTEMS AIRBAG SYSTEM(for Type B) B167B Lost Communication with Front Door Pressure Sensor LH B167C Front Door Pressure Sensor LH Initialization Incomplete

DESCRIPTION

The side collision sensor LH circuit consists of the airbag sensor assembly, side airbag pressure sensor LH and No. 3 side airbag sensor LH.

The side airbag pressure sensor LH detects impacts to the vehicle and sends signals to the airbag sensor assembly to determine if the SRS should be deployed.

These DTCs are stored when a malfunction is detected in the side collision sensor LH circuit.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Test Mode / Check Mode
B167B	Lost Communication with Front Door Pressure Sensor LH	One of the following conditions is met: · The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side collision sensor LH for 2 seconds. · A side airbag pressure sensor LH malfunction. · A No. 3 side airbag sensor LH malfunction. · An airbag sensor assembly malfunction.	· Floor wire · No. 2 rear door wire · Instrument panel wire · Front door wire LH · Side airbag pressure sensor LH · No. 3 side airbag sensor LH · Airbag sensor assembly	Comes on	Not applicable
B167C	Front Door Pressure Sensor LH Initialization Incomplete	One of the following conditions is met: · The airbag sensor assembly detects a line short circuit signal, open circuit signal, short circuit to ground signal or short circuit to B+ signal in the circuit for the side collision sensor LH for 2 seconds. · A side airbag pressure sensor LH malfunction. · A No. 3 side airbag sensor LH malfunction. · An airbag sensor assembly malfunction.	· Floor wire · No. 2 rear door wire · Instrument panel wire · Front door wire LH · Side airbag pressure sensor LH · No. 3 side airbag sensor LH · Airbag sensor assembly	Comes on	Not applicable

WIRING DIAGRAM

4.042,2.094 5.656,2.656 1.615,0.563 10 false Airbag Sensor Assembly 4.052,1.927 4.885,2.125 0.833,0.198 10 false V1 4.146,0.875 4.979,1.073 0.833,0.198 10 false BBL+ 4.156,1.458 4.99,1.656 0.833,0.198 10 false BBL- 3.833,0.75 4.833,1.167 1,0.417 10 false 32 3.813,1.354 4.771,1.823 0.958,0.469 10 false 31 1.615,0.75 2.448,0.948 0.833,0.198 10 false 4 1.635,1.313 2.469,1.51 0.833,0.198 10 false 3 1.115,0.854 1.948,1.052 0.833,0.198 10 false BBL+ 1.125,1.469 1.958,1.667 0.833,0.198 10 false BBL- 1.115,2.698 1.948,2.896 0.833,0.198 10 false BDL+ 1.135,3.438 1.969,3.635 0.833,0.198 10 false BDL- 1.615,2.594 2.448,2.792 0.833,0.198 10 false 1 1.625,3.313 2.458,3.51 0.833,0.198 10 false 2 5.688,2.698 6.521,2.896 0.833,0.198 10 false BDL+ 5.698,3.469 6.531,3.667 0.833,0.198 10 false BDL- 0.552,4.021 2.469,4.354 1.917,0.333 10 false No. 3 Side Airbag Sensor LH 0.542,3.823 1.302,4.156 0.76,0.333 10 false T1 5.594,4.063 6.917,4.667 1.323,0.604 10 false Side Airbag Pressure Sensor LH 5.583,3.833 6.344,4.167 0.76,0.333 10 false R15 2.385,3.458 3.146,3.792 0.76,0.333 10 false TV2 2.396,2.698 3.156,3.031 0.76,0.333 10 false TV2 2.469,3.24 3.302,3.438 0.833,0.198 10 false 3 2.781,0.625 3.615,0.823 0.833,0.198 10 false 2 2.344,2.938 3.177,3.135 0.833,0.198 10 false BDL+ 2.375,3.708 3.208,3.906 0.833,0.198 10 false BDL- 5.427,2.573 6.26,2.771 0.833,0.198 10 false 2 5.438,3.323 6.271,3.521 0.833,0.198 10 false 1 2.698,0.865 3.458,1.198 0.76,0.333 10 false TV2 2.698,1.469 3.458,1.802 0.76,0.333 10 false TV2 4.583,2.479 4.74,2.677 0.156,0.198 10 false 1 3.542,2.49 3.698,2.688 0.156,0.198 10 false 2 3.531,3.26 3.688,3.458 0.156,0.198 10 false 1 4.594,3.25 4.75,3.448 0.156,0.198 10 false 2 2.792,1.25 2.948,1.448 0.156,0.198 10 false 1 2.469,2.469 3.865,3.094 1.396,0.625 10 false 4 3.448,2.698 3.906,2.896 0.458,0.198 10 false NV1 3.448,3.458 3.906,3.656 0.458,0.198 10 false NV1 4.51,2.698 4.969,2.896 0.458,0.198 10 false RN6 4.5,3.458 4.958,3.656 0.458,0.198 10 false RN6 3.406,2.938 4.021,3.135 0.615,0.198 10 false BDL+ 4.469,2.948 5.083,3.146 0.615,0.198 10 false BDL+ 3.406,3.719 4.021,3.917 0.615,0.198 10 false BDL- 4.479,3.729 5.094,3.927 0.615,0.198 10 false BDL- 2.677,1.083 3.51,1.281 0.833,0.198 10 false BDL+ 2.688,1.708 3.521,1.906 0.833,0.198 10 false BDL-

CAUTION / NOTICE / HINT

NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY201902,999999,_V1,_081196,_0393338,RM100000001HX6Q,

When disconnecting and reconnecting the battery

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201902,201906,_V1,_081196,_0393338,RM100000001HX6R,201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201902,201906,_V1,_081196,_0393338,RM100000001HX6S,201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

After replacing the airbag sensor assembly, refer to initialization.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE201902,201906,_V1,_081196,_0393339,RM100000001HX6U,201906,202005,_V1,_081196,_0393339,RM100000001IWEZ,202005,202107,_V1,_081196,_0393339,RM100000001M43S,202107,202208,_V1,_081196,_0393339,RM100000001WMAF,202208,999999,_V1,_081196,_0393339,RM1000000024IQN,

PROCEDURE

1.CHECK CONNECTION OF CONNECTORS

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Check that the connectors are properly connected to the No. 3 side airbag sensor LH and side airbag pressure sensor LH.

Result:

Proceed to
The connectors are properly connected
The connectors are not properly connected

The connectors are properly connected

2.CHECK CONNECTORS

The connectors are not properly connected

CONNECT CONNECTORS PROPERLY

2.CHECK CONNECTORS

0.438,1.615 0.75,1.771 0.313,0.156 10 false *1 2.833,1.615 3.146,1.771 0.313,0.156 10 false *2 1.083,1.281 1.396,1.438 0.313,0.156 10 false *3 2.281,1.292 2.594,1.448 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor LH
*2	No. 3 Side Airbag Sensor LH
*3	Front Door Wire LH
*4	No. 2 Rear Door Wire

Disconnect the connectors from the No. 3 side airbag sensor LH and side airbag pressure sensor LH.

Check that the connectors (on the No. 3 side airbag sensor LH side and side airbag pressure sensor LH side) are not damaged.

Result:

Proceed to
The connectors are not deformed or damaged
The connectors are deformed or damaged

The connectors are not deformed or damaged

3.CHECK SIDE AIRBAG PRESSURE SENSOR LH CIRCUIT

The connectors are deformed or damaged

REPLACE FRONT DOOR WIRE LH OR NO. 2 REAR DOOR WIRE

3.CHECK SIDE AIRBAG PRESSURE SENSOR LH CIRCUIT

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

3.365,1.802 3.688,2.01 0.323,0.208 2.635,1.781 2.99,2.01 0.354,0.229 1.688,2.396 1.854,2.396 1.854,2.396 1.979,1.938 true 2.5,2.396 2.333,2.396 2.333,2.396 2.24,1.948 true 4.25,1.948 4.385,2.406 4.385,2.406 4.552,2.406 true 4.094,1.927 3.927,2.375 3.927,2.375 3.76,2.375 true 4.5,2.583 4.333,2.583 4.333,2.583 4.26,2.344 true 0.823,1.042 1.135,1.24 0.313,0.198 10 false *1 5.521,1.042 5.833,1.24 0.313,0.198 10 false *2 1.896,0.719 2.208,0.917 0.313,0.198 10 false *3 2.75,0.719 3.063,0.917 0.313,0.198 10 false *4 3.635,0.708 3.948,0.906 0.313,0.198 10 false *5 4.51,0.688 4.823,0.885 0.313,0.198 10 false *6 5.26,0.448 5.417,0.646 0.156,0.198 10 false A 4.885,0.458 5.156,0.823 0.271,0.365 10 false B 4.208,0.448 4.542,0.698 0.333,0.25 10 false C 4.021,0.448 4.375,1.021 0.354,0.573 10 false D 3.344,0.458 4,0.99 0.656,0.531 10 false E 3.167,0.458 3.417,0.854 0.25,0.396 10 false F 2.469,0.448 2.698,0.854 0.229,0.406 10 false G 2.281,0.448 2.594,0.854 0.313,0.406 10 false H 1.646,0.438 2.01,0.771 0.365,0.333 10 false I 1.229,0.448 1.677,0.854 0.448,0.406 10 false J 1.333,2.302 1.948,2.5 0.615,0.198 10 false BDL- 2.552,2.323 3.167,2.521 0.615,0.198 10 false BDL+ 3.448,1.833 3.906,2.031 0.458,0.198 10 false T1 1.313,1.406 1.625,1.604 0.313,0.198 10 false *a 3.438,1.406 3.75,1.604 0.313,0.198 10 false *b 2.698,1.823 3.156,2.021 0.458,0.198 10 false R15 4.625,2.323 5.24,2.521 0.615,0.198 10 false BDL- 3.375,2.313 3.99,2.51 0.615,0.198 10 false BDL+ 4.583,2.521 4.896,2.719 0.313,0.198 10 false *7

*1	Side Airbag Pressure Sensor LH	*2	No. 3 Side Airbag Sensor LH
*3	Front Door Wire LH	*4	Instrument Panel Wire
*5	Floor Wire	*6	No. 2 Rear Door Wire
*7	Service Wire	-	-
*a	Front view of wire harness connector (to Side Airbag Pressure Sensor LH)	*b	Front view of wire harness connector (to No. 3 Side Airbag Sensor LH)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
R15-2 (BDL+) - Body ground	Ignition switch ON	Below 1 V
R15-1 (BDL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
R15-2 (BDL+) - R15-1 (BDL-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
R15-2 (BDL+) - R15-1 (BDL-)	Always	1 MΩ or higher
R15-2 (BDL+) - Body ground	Always	1 MΩ or higher
R15-1 (BDL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

4.CHECK SIDE AIRBAG PRESSURE SENSOR LH

6.CHECK CONNECTORS

4.CHECK SIDE AIRBAG PRESSURE SENSOR LH

0.427,1.563 0.698,1.74 0.271,0.177 10 false *1 2.833,1.552 3.146,1.76 0.313,0.208 10 false *2

*1	Side Airbag Pressure Sensor RH
*2	No. 3 Side Airbag Sensor LH

Connect the connector to the No. 3 side airbag sensor LH.

Interchange the side airbag pressure sensor LH with RH and connect the connectors to them.

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the ignition switch off.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B167B or B167C is output
DTC B166D or B166E is output
DTCs B166D, B166E, B167B and B167C are not output

HINT:: Codes other than DTC B166D, B166E, B167B and B167C may be output at this time, but they are not related to this check.

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Return the side airbag pressure sensor RH and LH to their original positions and connect the connectors to them.

DTC B167B or B167C is output

5.CHECK NO. 3 SIDE AIRBAG SENSOR LH

DTC B166D or B166E is output

REPLACE SIDE AIRBAG PRESSURE SENSOR LH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Front Door)>REMOVAL201902,201906,_58,_079257,_0384944,RM100000001GJ94,201906,999999,_58,_079257,_0384944,RM100000001IWA5,

DTCs B166D, B166E, B167B and B167C are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

5.CHECK NO. 3 SIDE AIRBAG SENSOR LH

Interchange the No. 3 side airbag sensor LH with RH and connect the connectors to them.

0.51,1.365 0.823,1.563 0.313,0.198 10 false *1 2.552,1.719 2.865,1.917 0.313,0.198 10 false *2

*1	No. 3 Side Airbag Sensor RH
*2	Airbag Sensor Assembly

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Clear the DTCs stored in memory.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Clear DTCs: 50002 188

Turn the ignition switch off.

Turn the ignition switch to ON, and wait for at least 60 seconds.

Check for DTCs.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Body Electrical > SRS Airbag > Trouble Codes: 50001 188

Result:

Proceed to
DTC B167B or B167C is output
DTC B166D or B166E is output
DTCs B166D, B166E, B167B and B167C are not output

HINT:: Codes other than DTC B166D, B166E, B167B and B167C may be output at this time, but they are not related to this check.

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Return the No. 3 side airbag sensor RH and LH to their original positions and connect the connectors to them.

DTC B167B or B167C is output

REPLACE AIRBAG SENSOR ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL201902,201906,_58,_079257,_0384942,RM100000001GJ8V,201906,999999,_58,_079257,_0384942,RM100000001IN22,

DTC B166D or B166E is output

REPLACE NO. 3 SIDE AIRBAG SENSOR LH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SIDE AIRBAG SENSOR (for Rear Door)>REMOVAL201902,201906,_58,_079257,_0384946,RM100000001GJ9D,201906,999999,_58,_079257,_0384946,RM100000001IIRF,

DTCs B166D, B166E, B167B and B167C are not output

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING201902,999999,_V1,_078841,_0386803,RM100000001GTWY,

6.CHECK CONNECTORS

0.385,1.594 0.698,1.75 0.313,0.156 10 false *1 2.885,1.604 3.198,1.76 0.313,0.156 10 false *2 1.823,1.292 2.135,1.448 0.313,0.156 10 false *3 2.323,1.292 2.635,1.448 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor LH
*2	No. 3 Side Airbag Sensor LH
*3	Floor Wire
*4	No. 2 Rear Door Wire

Disconnect the No. 2 rear door wire connector from the floor wire.

Check that the connectors (on the No. 2 rear door wire side and floor wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

7.CHECK NO. 2 REAR DOOR WIRE

The connector is deformed or damaged

REPLACE NO. 2 REAR DOOR WIRE OR FLOOR WIRE

7.CHECK NO. 2 REAR DOOR WIRE

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

5.854,1.406 6.188,1.625 0.333,0.219 3.771,1.708 4.177,1.906 0.406,0.198 2.938,2.49 3.104,2.49 3.104,2.49 3.26,2.063 true 3.792,2.51 3.625,2.51 3.625,2.51 3.427,2.073 true 5.656,2.313 5.49,2.313 5.49,2.313 5.229,1.917 true 4.771,2.302 4.938,2.302 4.938,2.302 5.073,1.917 true 5.427,2.51 5.24,2.51 5.24,2.51 5.135,2.333 true 0.75,1 1.063,1.198 0.313,0.198 10 false *1 5.833,0.99 6.146,1.188 0.313,0.198 10 false *2 3.313,0.677 3.625,0.875 0.313,0.198 10 false *3 5.938,1.448 6.396,1.646 0.458,0.198 10 false T1 3.854,2.427 4.469,2.625 0.615,0.198 10 false BDL+ 2.573,2.406 3.188,2.604 0.615,0.198 10 false BDL- 5.729,2.24 6.344,2.438 0.615,0.198 10 false BDL- 4.396,2.219 5.01,2.417 0.615,0.198 10 false BDL+ 5.594,0.427 5.75,0.625 0.156,0.198 10 false A 5.24,0.438 5.406,0.656 0.167,0.219 10 false B 4.094,0.438 4.26,0.656 0.167,0.219 10 false C 3.719,0.438 4.052,0.833 0.333,0.396 10 false D 3.052,0.438 3.385,0.833 0.333,0.396 10 false E 2.885,0.427 3.219,0.823 0.333,0.396 10 false F 2.219,0.427 2.552,0.823 0.333,0.396 10 false G 2.042,0.427 2.198,0.625 0.156,0.198 10 false H 1.417,0.438 1.573,0.635 0.156,0.198 10 false I 1.125,0.438 1.281,0.635 0.156,0.198 10 false J 4.625,0.688 4.938,0.885 0.313,0.198 10 false *4 2.458,1.365 2.771,1.563 0.313,0.198 10 false *a 4.438,1.375 4.75,1.573 0.313,0.198 10 false *b 5.521,2.448 5.833,2.646 0.313,0.198 10 false *5 3.854,1.729 4.313,1.927 0.458,0.198 10 false TV2

*1	Side Airbag Pressure Sensor LH	*2	No. 3 Side Airbag Sensor LH
*3	Floor Wire	*4	No. 2 Rear Door Wire
*5	Service Wire	-	-
*a	Front view of wire harness connector (to Floor Wire)	*b	Front view of wire harness connector (to No. 3 Side Airbag Sensor LH)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
TV2-4 (BDL+) - Body ground	Ignition switch ON	Below 1 V
TV2-3 (BDL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 1 (BDL+) and 2 (BDL-) of connector B.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
TV2-4 (BDL+) - TV2-3 (BDL-)	Always	Below 1 Ω

Disconnect the service wire from connector B.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
TV2-4 (BDL+) - TV2-3 (BDL-)	Always	1 MΩ or higher
TV2-4 (BDL+) - Body ground	Always	1 MΩ or higher
TV2-3 (BDL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

8.CHECK CONNECTORS

REPLACE NO. 2 REAR DOOR WIRE

8.CHECK CONNECTORS

0.385,1.573 0.698,1.729 0.313,0.156 10 false *1 2.896,1.604 3.208,1.76 0.313,0.156 10 false *2 1.427,1.292 1.74,1.448 0.313,0.156 10 false *3 1.896,1.292 2.208,1.448 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor LH
*2	No. 3 Side Airbag Sensor LH
*3	Instrument Panel Wire
*4	Floor Wire

Disconnect the floor wire connector from the instrument panel wire.

Check that the connectors (on the floor wire side and instrument panel wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

9.CHECK FLOOR WIRE

The connector is deformed or damaged

REPLACE FLOOR WIRE OR INSTRUMENT PANEL WIRE

9.CHECK FLOOR WIRE

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

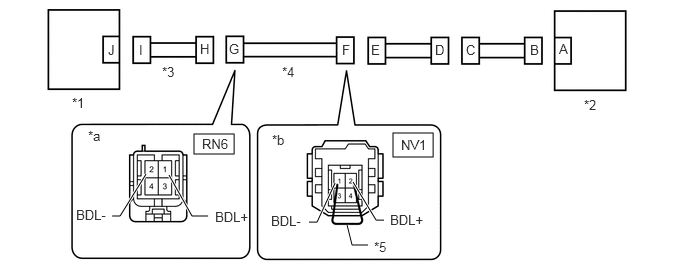

3.688,1.49 4.104,1.688 0.417,0.198 5.625,1.417 6.042,1.615 0.417,0.198 2.75,2.417 2.917,2.417 2.917,2.417 3.104,1.802 true 3.583,2.417 3.5,2.417 3.5,2.417 3.281,1.792 true 5.49,2.417 5.406,2.417 5.406,2.417 5.229,1.917 true 4.771,2.406 4.854,2.406 4.854,2.406 5.021,1.927 true 5.333,2.5 5.167,2.5 5.167,2.5 5.104,2.302 true 0.75,1 1.063,1.198 0.313,0.198 10 false *1 5.854,1 6.167,1.198 0.313,0.198 10 false *2 2.531,0.667 2.844,0.865 0.313,0.198 10 false *3 4.365,2.323 4.979,2.521 0.615,0.198 10 false BDL+ 5.573,2.323 6.188,2.521 0.615,0.198 10 false BDL- 2.385,2.333 3,2.531 0.615,0.198 10 false BDL+ 3.656,2.333 4.271,2.531 0.615,0.198 10 false BDL- 5.594,0.427 5.75,0.625 0.156,0.198 10 false A 5.323,0.438 5.49,0.656 0.167,0.219 10 false B 4.677,0.438 4.844,0.656 0.167,0.219 10 false C 4.354,0.438 4.688,0.833 0.333,0.396 10 false D 3.208,0.427 3.542,0.823 0.333,0.396 10 false E 2.896,0.427 3.229,0.823 0.333,0.396 10 false F 2.24,0.427 2.573,0.823 0.333,0.396 10 false G 2.052,0.427 2.208,0.625 0.156,0.198 10 false H 1.438,0.438 1.594,0.635 0.156,0.198 10 false I 1.125,0.438 1.281,0.635 0.156,0.198 10 false J 3.75,0.667 4.063,0.865 0.313,0.198 10 false *4 2.396,1.365 2.708,1.563 0.313,0.198 10 false *a 4.406,1.375 4.719,1.573 0.313,0.198 10 false *b 5.385,2.469 5.698,2.667 0.313,0.198 10 false *5 5.719,1.438 6.177,1.635 0.458,0.198 10 false TV2 3.771,1.521 4.229,1.719 0.458,0.198 10 false NV1

*1	Side Airbag Pressure Sensor LH	*2	No. 3 Side Airbag Sensor LH
*3	Instrument Panel Wire	*4	Floor Wire
*5	Service Wire	-	-
*a	Front view of wire harness connector (to Instrument Panel Wire)	*b	Front view of wire harness connector (to No. 2 Rear Door Wire)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
NV1-2 (BDL+) - Body ground	Ignition switch ON	Below 1 V
NV1-1 (BDL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 4 (BDL+) and 3 (BDL-) of connector D.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
NV1-2 (BDL+) - NV1-1 (BDL-)	Always	Below 1 Ω

Disconnect the service wire from connector D.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
NV1-2 (BDL+) - NV1-1 (BDL-)	Always	1 MΩ or higher
NV1-2 (BDL+) - Body ground	Always	1 MΩ or higher
NV1-1 (BDL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

10.CHECK CONNECTORS

REPLACE FLOOR WIRE

10.CHECK CONNECTORS

0.385,1.573 0.698,1.729 0.313,0.156 10 false *1 2.896,1.604 3.208,1.76 0.313,0.156 10 false *2 0.969,1.292 1.281,1.448 0.313,0.156 10 false *3 1.458,1.292 1.771,1.448 0.313,0.156 10 false *4

*1	Side Airbag Pressure Sensor LH
*2	No. 3 Side Airbag Sensor LH
*3	Front Door Wire LH
*4	Instrument Panel Wire

Disconnect the front door wire LH connector from the instrument panel wire.

Check that the connectors (on the front door wire LH side and instrument panel wire side) are not damaged.

Result:

Proceed to
The connector is not deformed or damaged
The connector is deformed or damaged

The connector is not deformed or damaged

11.CHECK INSTRUMENT PANEL WIRE

The connector is deformed or damaged

REPLACE INSTRUMENT PANEL WIRE OR FRONT DOOR WIRE LH

11.CHECK INSTRUMENT PANEL WIRE

Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

4.094,1.385 4.51,1.635 0.417,0.25 2.021,1.396 2.438,1.604 0.417,0.208 1.167,2.25 1.25,2.25 1.25,2.25 1.521,1.813 true 2.167,2.25 2,2.25 2,2.25 1.76,1.823 true 4,2.292 3.917,2.292 3.917,2.292 3.677,1.896 true 3.219,2.313 3.302,2.313 3.302,2.313 3.49,1.906 true 3.833,2.552 3.667,2.552 3.667,2.552 3.615,2.344 true 0.75,0.99 1.063,1.188 0.313,0.198 10 false *1 6.083,1.01 6.396,1.208 0.313,0.198 10 false *2 1.688,0.667 2,0.865 0.313,0.198 10 false *3 0.792,2.156 1.406,2.354 0.615,0.198 10 false BDL- 2.24,2.177 2.854,2.375 0.615,0.198 10 false BDL+ 2.823,2.219 3.438,2.417 0.615,0.198 10 false BDL- 4.063,2.208 4.677,2.406 0.615,0.198 10 false BDL+ 5.823,0.427 5.979,0.625 0.156,0.198 10 false A 5.521,0.438 5.688,0.656 0.167,0.219 10 false B 4.854,0.438 5.021,0.656 0.167,0.219 10 false C 4.531,0.438 4.865,0.833 0.333,0.396 10 false D 3.865,0.438 4.198,0.833 0.333,0.396 10 false E 3.563,0.438 3.896,0.833 0.333,0.396 10 false F 2.385,0.427 2.719,0.823 0.333,0.396 10 false G 2.083,0.427 2.24,0.625 0.156,0.198 10 false H 1.448,0.438 1.604,0.635 0.156,0.198 10 false I 1.125,0.438 1.281,0.635 0.156,0.198 10 false J 2.938,0.667 3.25,0.865 0.313,0.198 10 false *4 0.917,1.333 1.229,1.531 0.313,0.198 10 false *a 2.833,1.375 3.146,1.573 0.313,0.198 10 false *b 3.896,2.49 4.208,2.688 0.313,0.198 10 false *5 4.177,1.427 4.635,1.625 0.458,0.198 10 false NV1 2.104,1.417 2.563,1.615 0.458,0.198 10 false RN6

*1	Side Airbag Pressure Sensor LH	*2	No. 3 Side Airbag Sensor LH
*3	Front Door Wire LH	*4	Instrument Panel Wire
*5	Service Wire	-	-
*a	Front view of wire harness connector (to Front Door Wire LH)	*b	Front view of wire harness connector (to Floor Wire)

Turn the ignition switch to ON.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Switch Condition	Specified Condition
RN6-1 (BDL+) - Body ground	Ignition switch ON	Below 1 V
RN6-2 (BDL-) - Body ground	Ignition switch ON	Below 1 V

Turn the ignition switch off.

Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.

Using a service wire, connect terminals 2 (BDL+) and 1 (BDL-) of connector F.

NOTICE:: Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
RN6-1 (BDL+) - RN6-2 (BDL-)	Always	Below 1 Ω

Disconnect the service wire from connector F.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
RN6-1 (BDL+) - RN6-2 (BDL-)	Always	1 MΩ or higher
RN6-1 (BDL+) - Body ground	Always	1 MΩ or higher
RN6-2 (BDL-) - Body ground	Always	1 MΩ or higher

Result:

Proceed to
OK
NG

REPLACE FRONT DOOR WIRE LH

REPLACE INSTRUMENT PANEL WIRE
