RM35X0E _59 Vehicle Exterior _079318 WINDOW / GLASS _0384706 POWER WINDOW CONTROL SYSTEM J

WINDOW / GLASS  POWER WINDOW CONTROL SYSTEM  Front Passenger Side Power Window does not Operate with Front Passenger Side Power Window Switch


DESCRIPTION

When the ignition switch is ON, the power window regulator motor assembly RH (for LHD) or power window regulator motor assembly LH (for RHD) is operated by the power window regulator switch assembly. The power window regulator motor assembly RH (for LHD) or power window regulator motor assembly LH (for RHD) has motor, regulator and ECU functions.

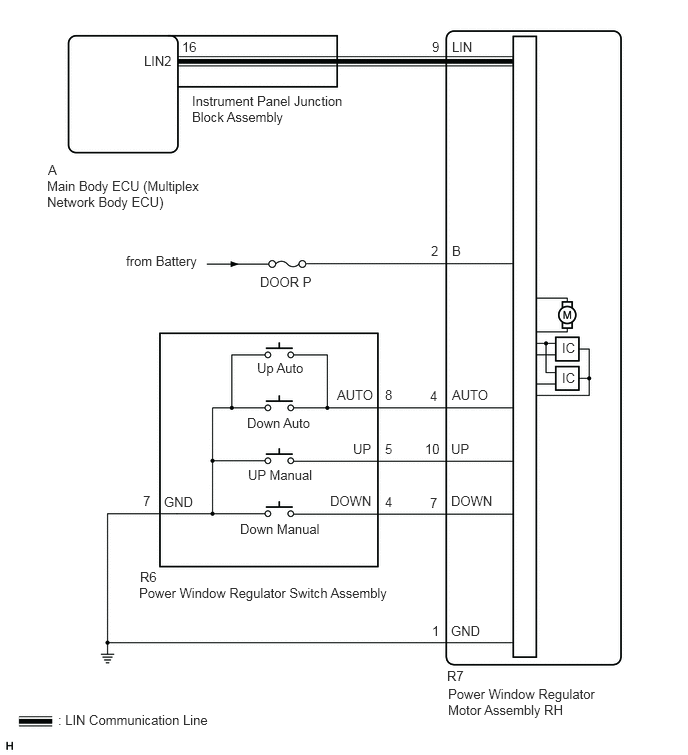

WIRING DIAGRAM

for LHD:



E415551E01
1.5,0.552 2.115,0.75 0.615,0.198 10 false LIN2 1.896,0.406 2.208,0.604 0.313,0.198 10 false 16 4.5,0.406 4.656,0.604 0.156,0.198 10 false 9 4.708,0.406 4.99,0.635 0.281,0.229 10 false LIN 2,0.969 3.615,1.344 1.615,0.375 10 false Instrument Panel Junction Block Assembly 0.49,1.854 2.135,2.208 1.646,0.354 10 false Main Body ECU (Multiplex Network Body ECU) 0.5,1.688 0.656,1.885 0.156,0.198 10 false A 1.313,2.635 2.125,2.865 0.813,0.229 10 false from Battery 2.708,2.854 3.479,3.073 0.771,0.219 10 false DOOR P 4.49,2.531 4.646,2.729 0.156,0.198 10 false 2 4.708,2.531 4.865,2.729 0.156,0.198 10 false B 5.854,3.542 6.167,3.74 0.313,0.198 10 false IC 5.854,3.854 6.167,4.052 0.313,0.198 10 false IC 2.677,3.75 3.26,3.979 0.583,0.229 10 false Up Auto 2.573,4.323 3.292,4.542 0.719,0.219 10 false Down Auto 3.51,4.031 4.125,4.229 0.615,0.198 10 false AUTO 3.677,4.594 3.99,4.792 0.313,0.198 10 false UP 2.583,4.865 3.333,5.094 0.75,0.229 10 false UP Manual 2.5,5.427 3.365,5.646 0.865,0.219 10 false Down Manual 1.448,6.094 4.177,6.354 2.729,0.26 10 false Power Window Regulator Switch Assembly 1.458,5.927 1.771,6.125 0.313,0.198 10 false R6 0.604,7.417 2.198,7.635 1.594,0.219 10 false : LIN Communication Line 3.438,5.135 4.052,5.333 0.615,0.198 10 false DOWN 1.708,5.146 2.167,5.344 0.458,0.198 10 false GND 4.698,6.49 5.156,6.688 0.458,0.198 10 false GND 4.698,5.135 5.313,5.333 0.615,0.198 10 false DOWN 4.698,4.594 5.01,4.792 0.313,0.198 10 false UP 4.708,4.031 5.323,4.229 0.615,0.198 10 false AUTO 4.656,6.958 4.969,7.156 0.313,0.198 10 false R7 4.667,7.146 6.219,7.521 1.552,0.375 10 false Power Window Regulator Motor Assembly RH 4.01,4.031 4.167,4.229 0.156,0.198 10 false 8 4.01,4.594 4.167,4.792 0.156,0.198 10 false 5 4.01,5.146 4.167,5.344 0.156,0.198 10 false 4 4.479,4.042 4.635,4.24 0.156,0.198 10 false 4 4.427,4.594 4.74,4.792 0.313,0.198 10 false 10 4.479,5.156 4.635,5.354 0.156,0.198 10 false 7 1.49,5.135 1.646,5.333 0.156,0.198 10 false 7 4.5,6.49 4.656,6.688 0.156,0.198 10 false 1

for RHD:


E415551E02
1.5,0.552 2.115,0.75 0.615,0.198 10 false LIN2 1.896,0.406 2.208,0.604 0.313,0.198 10 false 16 4.5,0.406 4.656,0.604 0.156,0.198 10 false 9 4.708,0.406 4.99,0.635 0.281,0.229 10 false LIN 1.99,0.979 3.583,1.344 1.594,0.365 10 false Instrument Panel Junction Block Assembly 0.49,1.854 2.135,2.208 1.646,0.354 10 false Main Body ECU (Multiplex Network Body ECU) 0.5,1.688 0.656,1.885 0.156,0.198 10 false A 1.313,2.635 2.125,2.865 0.813,0.229 10 false from Battery 2.708,2.854 3.479,3.073 0.771,0.219 10 false DOOR P 4.49,2.531 4.646,2.729 0.156,0.198 10 false 2 4.708,2.531 4.865,2.729 0.156,0.198 10 false B 5.854,3.542 6.167,3.74 0.313,0.198 10 false IC 5.854,3.854 6.167,4.052 0.313,0.198 10 false IC 2.677,3.75 3.26,3.979 0.583,0.229 10 false Up Auto 2.573,4.323 3.292,4.542 0.719,0.219 10 false Down Auto 3.51,4.031 4.125,4.229 0.615,0.198 10 false AUTO 3.677,4.594 3.99,4.792 0.313,0.198 10 false UP 2.583,4.865 3.333,5.094 0.75,0.229 10 false UP Manual 2.5,5.427 3.365,5.646 0.865,0.219 10 false Down Manual 1.448,6.094 4.177,6.354 2.729,0.26 10 false Power Window Regulator Switch Assembly 1.438,5.927 1.75,6.125 0.313,0.198 10 false R16 0.604,7.417 2.198,7.635 1.594,0.219 10 false : LIN Communication Line 3.438,5.135 4.052,5.333 0.615,0.198 10 false DOWN 1.708,5.146 2.167,5.344 0.458,0.198 10 false GND 4.698,6.49 5.156,6.688 0.458,0.198 10 false GND 4.698,5.135 5.313,5.333 0.615,0.198 10 false DOWN 4.698,4.594 5.01,4.792 0.313,0.198 10 false UP 4.708,4.031 5.323,4.229 0.615,0.198 10 false AUTO 4.615,6.958 4.927,7.156 0.313,0.198 10 false R17 4.615,7.146 6.188,7.552 1.573,0.406 10 false Power Window Regulator Motor Assembly LH 4.01,4.031 4.167,4.229 0.156,0.198 10 false 8 4.01,4.594 4.167,4.792 0.156,0.198 10 false 5 4.01,5.146 4.167,5.344 0.156,0.198 10 false 4 4.479,4.042 4.635,4.24 0.156,0.198 10 false 4 4.427,4.594 4.74,4.792 0.313,0.198 10 false 10 4.479,5.156 4.635,5.354 0.156,0.198 10 false 7 1.49,5.135 1.646,5.333 0.156,0.198 10 false 7 4.49,6.5 4.646,6.698 0.156,0.198 10 false 1


CAUTION / NOTICE / HINT

NOTICE:
·

The power window control system uses the LIN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the power window control system after confirming that the communication system is functioning properly.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING

·

If the power window regulator motor assembly has been replaced with a new one, initialize the power window control system.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>INITIALIZATION

·

Check that the window lock switch is off before performing the following procedure.

·

Inspect the fuse for circuits related to this system before performing the following procedure.



PROCEDURE

1.READ VALUE USING GTS (P-DOOR MOTOR)
a.

Using the GTS, read the data for the condition when the power window regulator switch assembly was operated.

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW CONTROL SYSTEM>DATA LIST / ACTIVE TEST

Body Electrical > P-Door Motor > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
P Door P/W Up SW Front passenger door power window manual up switch signal OFF or ON OFF: Front passenger door power window manual up switch not being operated
ON: Front passenger door power window manual up switch being operated 		-
P Door P/W Down SW Front passenger door power window manual down switch signal OFF or ON OFF: Front passenger door power window manual down switch not being operated
ON: Front passenger door power window manual down switch being operated 		-
Body Electrical > P-Door Motor > Data List
Tester Display
P Door P/W Up SW
P Door P/W Down SW
50003 144 2,3
OK:

On the GTS screen, ON or OFF is displayed accordingly.



Result:
Result Proceed to
OK (for LHD) A
OK (for RHD) B
NG C



A

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR>REMOVAL


B

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR>REMOVAL


C

2.INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
2.INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
a.

Remove the power window regulator switch assembly.

Click hereVehicle Exterior>WINDOW / GLASS>FRONT PASSENGER SIDE POWER WINDOW SWITCH>REMOVAL


b.

Inspect the power window regulator switch assembly.

Click hereVehicle Exterior>WINDOW / GLASS>FRONT PASSENGER SIDE POWER WINDOW SWITCH>INSPECTION


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY)

NG

REPLACE POWER WINDOW REGULATOR SWITCH ASSEMBLY

Click hereVehicle Exterior>WINDOW / GLASS>FRONT PASSENGER SIDE POWER WINDOW SWITCH>REMOVAL


3.CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR SWITCH ASSEMBLY - POWER WINDOW REGULATOR MOTOR ASSEMBLY)

*1: for LHD

*2: for RHD


a.

Disconnect the R6*1 or R16*2 power window regulator switch assembly connector.


b.

Disconnect the R7*1 or R17*2 power window regulator motor assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
for LHD
Tester Connection Condition Specified Condition
R6-5 (UP) - R7-10 (UP) Always Below 1 Ω
R6-4 (DOWN) - R7-7 (DOWN) Always Below 1 Ω
R6-8 (AUTO) - R7-4 (AUTO) Always Below 1 Ω
R6-5 (UP) or R7-10 (UP) - Body ground Always 10 kΩ or higher
R6-4 (DOWN) or R7-7 (DOWN) - Body ground Always 10 kΩ or higher
R6-8 (AUTO) or R7-4 (AUTO) - Body ground Always 10 kΩ or higher


for RHD
Tester Connection Condition Specified Condition
R16-5 (UP) - R17-10 (UP) Always Below 1 Ω
R16-4 (DOWN) - R17-7 (DOWN) Always Below 1 Ω
R16-8 (AUTO) - R17-4 (AUTO) Always Below 1 Ω
R16-5 (UP) or R17-10 (UP) - Body ground Always 10 kΩ or higher
R16-4 (DOWN) or R17-7 (DOWN) - Body ground Always 10 kΩ or higher
R16-8 (AUTO) or R17-4 (AUTO) - Body ground Always 10 kΩ or higher


Result:
Result Proceed to
OK (for LHD) A
OK (for RHD) B
NG C



A

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR>REMOVAL


B

REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR>REMOVAL


C

REPAIR OR REPLACE HARNESS OR CONNECTOR
