Vehicle Exterior
_079318
WINDOW / GLASS
_0384708
FRONT PASSENGER SIDE POWER WINDOW SWITCH
G
WINDOW / GLASS FRONT PASSENGER SIDE POWER WINDOW SWITCH INSPECTION
CAUTION / NOTICE / HINT
- HINT:
-
Use the same procedure as for the LHD and RHD vehicles.
PROCEDURE
84810
1.INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
a.
2.219,1.823 1.854,1.333
true
1.677,1.823 1.635,1.333
true
1.146,1.823 1.177,1.333
true
0.646,1.813 0.979,1.323
true
0.083,0.073 0.396,0.271
0.313,0.198
10
false
*a
0.406,1.854 1.021,2.052
0.615,0.198
10
false
AUTO
1.021,1.854 1.635,2.052
0.615,0.198
10
false
GND
1.615,1.854 2.229,2.052
0.615,0.198
10
false
UP
2.042,1.854 2.656,2.052
0.615,0.198
10
false
DOWN

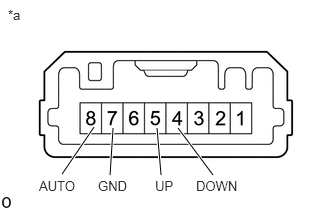

| *a | Component without harness connected
(Power Window Regulator Switch Assembly) |
Inspect the power window regulator switch assembly.
i.
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Switch Condition Specified Condition 5 (UP) - 7 (GND) UP (MANUAL) → OFF Below 1 Ω → 10 kΩ or higher 4 (DOWN) - 7 (GND) DOWN (MANUAL) → OFF Below 1 Ω → 10 kΩ or higher 5 (UP) - 7 (GND)
8 (AUTO) - 7 (GND)UP (AUTO) → OFF Below 1 Ω → 10 kΩ or higher 4 (DOWN) - 7 (GND)
8 (AUTO) - 7 (GND)DOWN (AUTO) → OFF Below 1 Ω → 10 kΩ or higher
If the result is not as specified, replace the power window regulator switch assembly.
b.
2.052,1.813 2.052,1.354
true
2.521,1.344 2.677,1.823
true
0.125,0.125 0.438,0.323
0.313,0.198
10
false
*a
1.958,1.865 2.573,2.063
0.615,0.198
10
false
ILL+
2.635,1.865 3.25,2.063
0.615,0.198
10
false
ILL-

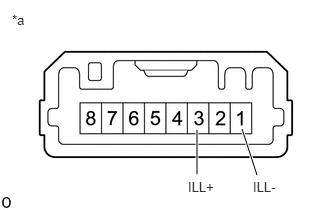

| *a | Component without harness connected
(Power Window Regulator Switch Assembly) |
Apply battery voltage to the connector and check the illumination conditions.
- OK:
Battery Connection Specified Condition Battery positive (+) - 3 (ILL+)
Battery negative (-) - 1 (ILL-)Illuminates
If the result is not as specified, replace the power window regulator switch assembly.
