WINDOW / GLASS POWER WINDOW REGULATOR MOTOR REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during power window regulator motor removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
| Disconnect cable from negative (-) battery terminal | Memorize steering angle neutral point | Parking assist monitor system | ( 201902,999999,_56,_079315,_0385736,RM100000001GNRA,)
|
| Panoramic view monitor system | (201906,999999,_56,_079315,_0396274,RM100000001IGR3,)
|
||
·
Power window regulator motor assembly LH ·
Power window regulator motor assembly RH ·
Front door window regulator assembly LH ·
Front door window regulator assembly RH ·
Front door glass sub-assembly LH ·
Front door glass sub-assembly RH ·
Front door glass run LH ·
Front door glass run RH |
Initialize power window control system | ·
Auto up and down function ·
Jam protection function ·
Catch protection function ·
Remote control function ·
Key-linked function ·
Wireless transmitter-linked function ·
Key-off operation function |
(201906,999999,_59,_079318,_0384706,RM100000001II57,)
|
- HINT:
-
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the systems is used.
- ·
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link *: w/ Stop and start system
Stop and start system* Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). ( 201902,999999,_51,_078825,_0382334,RM100000001GBQ1,)
Lane control system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. ( 201902,999999,_58,_078886,_0382740,RM100000001G6XB,)
Pre-collision system
·Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link Power slide door system Fully close the slide door by hand.
- HINT:
-
Initialization is not necessary if the above procedures are performed while the slide door is closed.
( 201902,999999,_59,_078503,_0381017,RM100000001FWXM,)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -
·Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·Use the same procedure for the RH and LH sides.
·The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
- CAUTION:
-
-
Be sure to read Precaution thoroughly before servicing.
- ··
- NOTICE:
-
After turning the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) battery terminal.
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- CAUTION:
-
- ·
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.
·If the airbag deploys for any reason, it may cause a serious accident.
69278B
3.REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH
4.REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)
5.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)
67602
6.REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH
68172A
7.REMOVE FRONT DOOR INNER GLASS WEATHERSTRIP LH
68195B
8.REMOVE FRONT DOOR REAR BELT SEAL LH
68193C
9.REMOVE FRONT DOOR FRONT BELT SEAL LH
86160
10.REMOVE FRONT NO. 1 SPEAKER ASSEMBLY
67626A
11.REMOVE NO. 2 DOOR TRIM BRACKET
67832
12.REMOVE FRONT DOOR SERVICE HOLE COVER LH
67838F
13.REMOVE FRONT DOOR NO. 4 SERVICE HOLE COVER LH (w/ Curtain Shield Airbag)
68151D
14.DISCONNECT FRONT DOOR GLASS RUN LH
67402F
15.REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY LH
68102
16.REMOVE FRONT DOOR GLASS SUB-ASSEMBLY LH
68151D
17.REMOVE FRONT DOOR GLASS RUN LH
67834
18.REMOVE FRONT DOOR NO. 2 SERVICE HOLE COVER LH
69820
19.REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY LH
85720C
20.REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

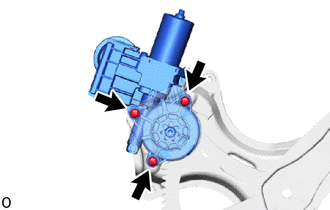

Using a T25 "TORX" socket wrench, remove the 3 "TORX" screws and power window regulator motor assembly LH from the front door window regulator sub-assembly LH.
