RM35X0E _59 Vehicle Exterior _079318 WINDOW / GLASS _0384708 FRONT PASSENGER SIDE POWER WINDOW SWITCH A

WINDOW / GLASS FRONT PASSENGER SIDE POWER WINDOW SWITCH REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure as for the LHD and RHD vehicles.

·

The procedure listed below is for the LHD vehicles.

Hide Display 1.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

Hide Display 84810 2.REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY

0,0 0,0 false

Protective Tape

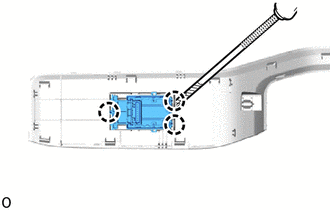

Using a thin-bladed screwdriver, detach the claw and remove the power window regulator switch assembly from the front door armrest base panel RH.
