AXLE AND DIFFERENTIAL  REAR DIFFERENTIAL CARRIER ASSEMBLY(for Type A)  REMOVAL


CAUTION / NOTICE / HINT

CAUTION:
·

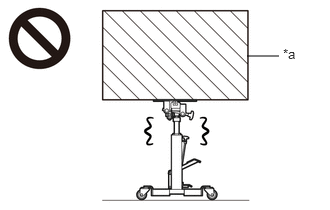

C313282C03
2.573,0.583 2.906,0.583 false 2.948,0.479 3.26,0.677 0.313,0.198 10 false *a
*a Object Exceeding Weight Limit of Transmission Jack


Be sure to perform this procedure with several people as the rear differential carrier assembly is very heavy.

·

Be sure to follow the procedure described in the repair manual, or the transmission jack may suddenly drop or a part may fall.



HINT:

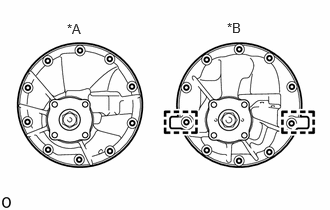

C541540C01
0.698,0.219 1.01,0.375 0.313,0.156 10 false *A 2.365,0.208 2.677,0.365 0.313,0.156 10 false *B
*A for Type A
*B for Type B


Look at the differential carrier to identify the differential type.


PROCEDURE

Hide 5.REMOVE REAR AXLE SHAFT WITH BACKING PLATE RH

HINT:

Use the same procedure described for the LH side.


Hide 41196 6.REMOVE REAR DIFFERENTIAL DYNAMIC DAMPER

a.

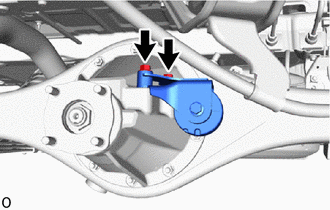

C409605

Remove the 2 bolts and rear differential dynamic damper from the rear differential carrier assembly.


Hide 41110 7.REMOVE REAR DIFFERENTIAL CARRIER ASSEMBLY

a.
C409606

Remove the 10 nuts, 10 washers and rear differential carrier assembly from the rear axle housing.

CAUTION:

The rear differential carrier assembly is a heavy component. Make sure that it is supported securely.


NOTICE:
·

Securely support the rear differential carrier assembly while performing this step to avoid excessively tilting or dropping the rear differential carrier assembly.

·

The remaining oil may leak out when removing the rear differential carrier assembly.

·

Do not damage the installation surface when removing the rear differential carrier assembly.

·

Remove the bolts with the rear differential carrier assembly secured.




Hide 42181 8.REMOVE REAR DIFFERENTIAL CARRIER GASKET
