RM35X0E _52 Drivetrain _079136 DRIVE SHAFT / PROPELLER SHAFT _0383776 PROPELLER SHAFT ASSEMBLY(for High Roof) A

DRIVE SHAFT / PROPELLER SHAFT PROPELLER SHAFT ASSEMBLY(for High Roof) REMOVAL

PROCEDURE

Hide Display 51569 1.REMOVE PROPELLER SHAFT GUARD

1.573,0.938 1.573,0.354 1.573,0.354 1.906,0.354 true 1.781,0.917 1.781,0.667 1.781,0.667 2.031,0.667 true 1.948,0.271 2.26,0.427 0.313,0.156 10 true *a 2.094,0.583 2.406,0.74 0.313,0.156 10 true *b

*a	Identification Number
*b	Arrow

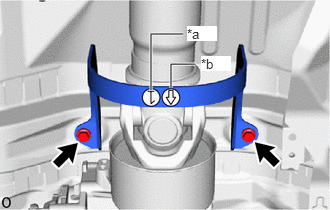

for Transmission Side:

Remove the 2 bolts and propeller shaft guard.

NOTICE:: ·

Make sure that the identification number of the propeller shaft guard is "1".

·

Make sure that the arrow of the propeller shaft guard faces the front of the vehicle.

1.781,1.75 1.781,1.417 1.781,1.417 1.948,1.417 true 1.604,1.75 1.604,1.083 1.604,1.083 1.938,1.083 true 1.938,1 2.25,1.156 0.313,0.156 10 true *a 1.979,1.344 2.292,1.5 0.313,0.156 10 true *b

*a	Identification Number
*b	Arrow

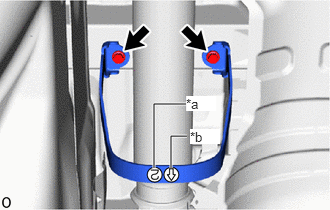

for Center Bearing Side:

Remove the 2 bolts and propeller shaft guard.

NOTICE:: ·

Make sure that the identification number of the propeller shaft guard is "2".

·

Make sure that the arrow of the propeller shaft guard faces the front of the vehicle.

1.625,1.75 1.625,1.167 1.625,1.167 1.875,1.167 true 1.771,1.75 1.771,1.417 1.771,1.417 1.896,1.417 true 1.906,1.094 2.219,1.25 0.313,0.156 10 true *a 1.917,1.344 2.229,1.5 0.313,0.156 10 true *b

*a	Identification Number
*b	Arrow

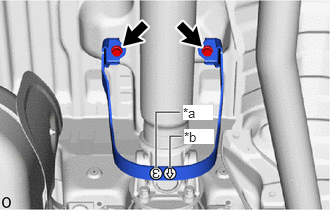

for Differential Side:

Remove the 2 bolts and propeller shaft guard.

NOTICE:: ·

Make sure that the identification number of the propeller shaft guard is "3".

·

Make sure that the arrow of the propeller shaft guard faces the front of the vehicle.

Hide Display 37100 2.REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

1.667,1.5 2.031,1.896 2.031,1.896 1.677,1.406 true 1.979,3.854 2.5,4.281 2.5,4.281 1.969,3.76 true 2.031,1.917 2.344,2.073 0.313,0.156 10 true *a 2.563,4.281 2.875,4.438 0.313,0.156 10 true *a

Matchmark

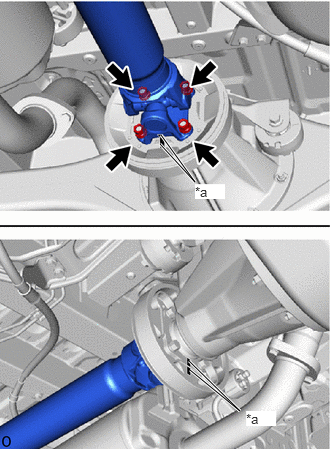

for 1GD-FTV (AC60E):

Place matchmarks on the propeller shaft flange, differential torsional damper and differential flange.

ii.

Remove the 4 nuts and 4 washers and disconnect the propeller shaft with center bearing assembly.

1.708,1.563 2.031,1.823 2.031,1.823 1.708,1.5 true 2.052,1.781 2.365,1.979 0.313,0.198 10 true *a

Matchmark

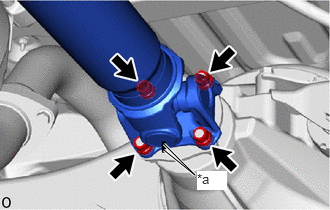

except 1GD-FTV (AC60E):

Place matchmarks on the propeller shaft flange and differential flange.

ii.

Remove the 4 nuts and 4 washers and disconnect the propeller shaft with center bearing assembly.

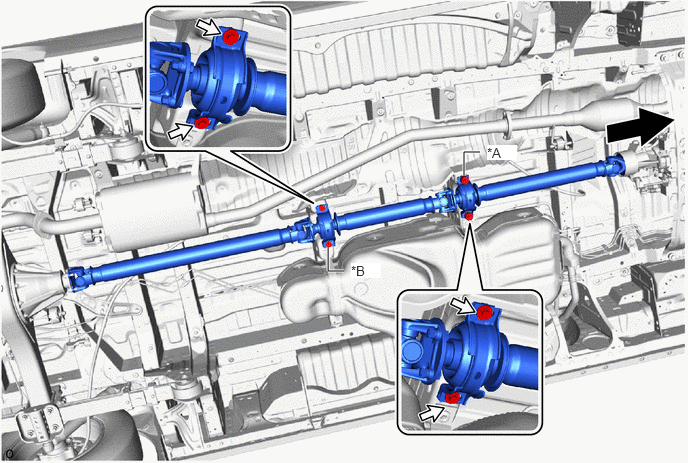

for Automatic Transmission:

4.833,1.833 4.833,1.583 4.833,1.583 5,1.583 true 3.417,2.573 3.417,2.823 3.417,2.823 3.583,2.823 true 5.073,1.51 5.385,1.667 0.313,0.156 10 true *A 3.656,2.74 3.969,2.896 0.313,0.156 10 true *B

*A	for Transmission Side	*B	for Differential Side
	Front Side	-	-

for Transmission Side:

Remove the 2 set bolts and 2 washers of the center No. 1 support bearing assembly from the frame crossmember.

ii.

for Differential Side:

Remove the 2 set bolts and 2 washers of the center No. 1 support bearing assembly from the frame crossmember.

for Manual Transmission:

3.583,2.813 3.417,2.813 3.417,2.813 3.417,2.563 true 4.833,1.844 4.833,1.594 4.833,1.594 5,1.594 true 5.063,1.51 5.375,1.667 0.313,0.156 10 true *A 3.667,2.74 3.979,2.896 0.313,0.156 10 true *B

*A	for Transmission Side	*B	for Differential Side
	Front Side	-	-

Remove the 2 center No. 1 bearing bolts and 2 washers of the center No. 1 support bearing assembly from the frame crossmember.

ii.

Remove the 2 set bolts and 2 washers of the center No. 1 support bearing assembly from the frame crossmember.

Pull out the propeller shaft with center bearing assembly.

NOTICE:: When pulling out the propeller shaft with center bearing assembly, make sure that transmission fluid does not leak from the extension housing.

HINT:: Transmission fluid may leak from the extension housing. Therefore, use a container to catch the fluid.

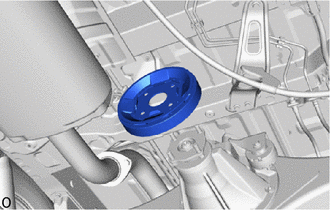

for 1GD-FTV (AC60E):

Remove the differential torsional damper.
