RM35X0E _52 Drivetrain _079136 DRIVE SHAFT / PROPELLER SHAFT _0383777 PROPELLER SHAFT ASSEMBLY(for Standard Roof) A

DRIVE SHAFT / PROPELLER SHAFT  PROPELLER SHAFT ASSEMBLY(for Standard Roof)  REMOVAL


PROCEDURE

Hide 51569 1.REMOVE PROPELLER SHAFT GUARD

C408845C01
1.771,0.677 1.771,0.177 1.771,0.177 2.188,0.177 true 1.99,0.688 2,0.417 2,0.417 2.417,0.417 true 2.26,0.104 2.573,0.26 0.313,0.156 10 true *a 2.479,0.354 2.792,0.51 0.313,0.156 10 true *b
*a Identification Number
*b Arrow


a.

for Transmission Side:

Remove the 2 bolts and propeller shaft guard.

NOTICE:
·

Make sure that the identification number of the propeller shaft guard is "1".

·

Make sure that the arrow of the propeller shaft guard faces the front of the vehicle.




b.
C408846C01
1.656,1.51 1.656,1.177 1.656,1.177 1.823,1.177 true 1.469,1.531 1.469,0.948 1.469,0.948 1.719,0.948 true 1.75,0.865 2.063,1.021 0.313,0.156 10 true *a 1.854,1.104 2.167,1.26 0.313,0.156 10 true *b
*a Identification Number
*b Arrow


for Center Support Bearing Side:

Remove the 2 bolts and propeller shaft guard.

NOTICE:
·

Make sure that the identification number of the propeller shaft guard is "2".

·

Make sure that the arrow of the propeller shaft guard faces the front of the vehicle.




Hide 37100 2.REMOVE PROPELLER SHAFT WITH CENTER BEARING ASSEMBLY

a.

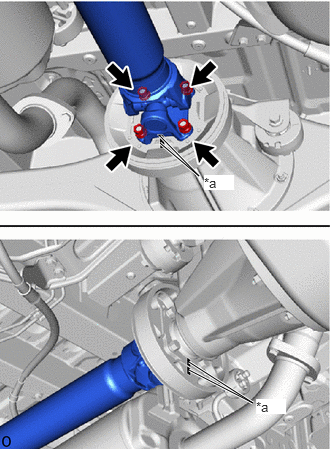

C408848C01
1.667,1.417 2.073,1.833 2.073,1.833 1.667,1.49 true 1.969,3.854 2.635,4.198 2.635,4.198 1.969,3.771 true 2.125,1.823 2.438,1.979 0.313,0.156 10 true *a 2.667,4.156 2.979,4.313 0.313,0.156 10 true *a
*a Matchmark


for 1GD-FTV (AC60E):

i.

Place matchmarks on the propeller shaft flange, differential torsional damper and differential flange.


ii.

Remove the 4 nuts and 4 washers and disconnect the propeller shaft with center bearing assembly.



b.
C408847C01
1.698,1.458 2.021,1.833 2.021,1.833 1.698,1.542 true 2.104,1.813 2.417,1.969 0.313,0.156 10 true *a
*a Matchmark


except 1GD-FTV (AC60E):

i.

Place matchmarks on the propeller shaft flange and differential flange.


ii.

Remove the 4 nuts and 4 washers and disconnect the propeller shaft with center bearing assembly.



c.

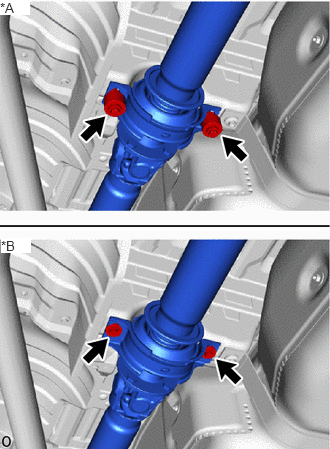

C408849C01
0,0 0.313,0.156 0.313,0.156 10 true *A 0.01,2.479 0.323,2.635 0.313,0.156 10 true *B
*A for Manual Transmission
*B for Automatic Transmission


for Automatic Transmission:

Remove the 2 set bolts and 2 washers of the propeller shaft with center bearing assembly from the frame crossmember.


d.

for Manual Transmission:

Remove the 2 center No. 1 bearing bolts and 2 washers of the propeller shaft with center bearing assembly from the frame crossmember.


e.

Pull out the propeller shaft with center bearing assembly.

NOTICE:

When pulling out the propeller shaft with center bearing assembly, make sure that transmission fluid does not leak from the extension housing.


HINT:

Transmission fluid may leak from the extension housing. Therefore, use a container to catch the fluid.



f.
C408863

for 1GD-FTV (AC60E):

Remove the differential torsional damper.
