RM35X0E _51 Engine / Hybrid System _079024 7GR-FKS FUEL _0383268 FUEL SENDER GAUGE ASSEMBLY A

7GR-FKS FUEL FUEL SENDER GAUGE ASSEMBLY INSTALLATION

PROCEDURE

Hide Display 83320 1.INSTALL FUEL SENDER GAUGE ASSEMBLY

0,0 0,0 false

Slide

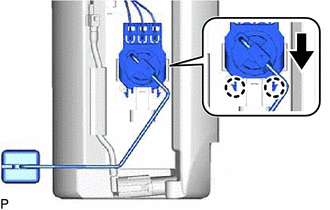

Set the fuel sender gauge assembly on the No. 1 fuel sub-tank. Then slide the fuel sender gauge assembly downward until the 2 claws attach to install it.

Attach the 2 clamps and connect the wire harness.

Connect the fuel sender gauge assembly connector.

Hide Display 77020A 2.INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

Click hereEngine / Hybrid System>7GR-FKS (FUEL)>FUEL PUMP>INSTALLATION201902,201906,_51,_079024,_0383264,RM100000001G9WR,201906,999999,_51,_079024,_0383264,RM100000001IZVQ,

Hide Display 3.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

Hide Display 4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE201902,201906,_V1,_081196,_0393339,RM100000001HX6U,201906,202005,_V1,_081196,_0393339,RM100000001IWEZ,202005,202107,_V1,_081196,_0393339,RM100000001M43S,202107,202208,_V1,_081196,_0393339,RM100000001WMAF,202208,999999,_V1,_081196,_0393339,RM1000000024IQN,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201902,201906,_V1,_081196,_0393338,RM100000001HX6S,201906,999999,_V1,_081196,_0393338,RM100000001IWEY,
