RM35X0E _56 Audio / Visual / Telematics _078377 AUDIO / VIDEO _0380011 ROOF SPEAKER A

AUDIO / VIDEO ROOF SPEAKER INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 1.INSTALL SCREW GROMMET (for High Roof, 6 Speakers)

Attach the claw to install the 2 screw grommets.

Hide Display 86160Q 2.INSTALL ROOF SPEAKER ASSEMBLY (for High Roof, 6 Speakers)

Install the roof speaker assembly with 2 screws for No. 1 speaker mounting bracket.

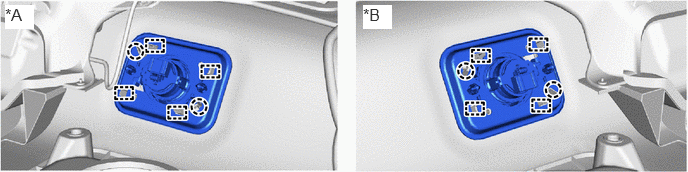

Hide Display 3.INSTALL ROOF SPEAKER WITH BRACKET (for High Roof, 6 Speakers)

Attach the guide and claw to install the roof speaker with bracket.

0.052,0.052 0.354,0.302 0.302,0.25 12 true *A 3.781,0.052 4.083,0.302 0.302,0.25 12 true *B

for LH Side

for RH Side

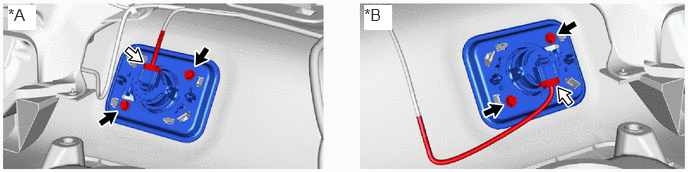

Install the 2 screws.

Connect the connector.

0.083,0.052 0.375,0.313 0.292,0.26 12 true *A 3.792,0.052 4.083,0.313 0.292,0.26 12 true *B

*A	for LH Side	*B	for RH Side
	Screw		Connector

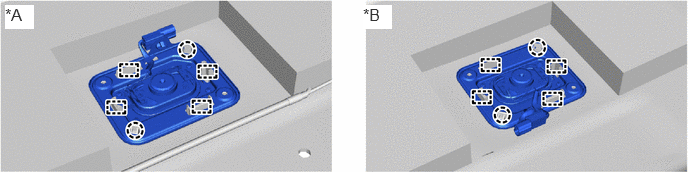

Hide Display 86160Q 4.INSTALL ROOF SPEAKER ASSEMBLY (for Standard Roof, 6 Speakers)

Attach the guide and claw to install the roof speaker assembly.

0.052,0.052 0.354,0.302 0.302,0.25 12 true *A 3.781,0.052 4.083,0.302 0.302,0.25 12 true *B

for LH Side

for RH Side

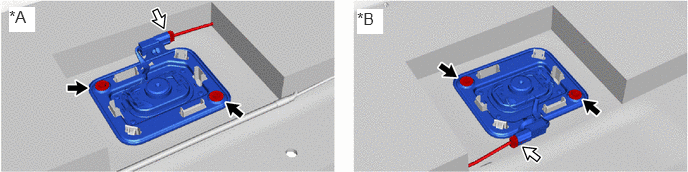

Install the 2 screws.

Connect the connector.

0.094,0.073 0.365,0.333 0.271,0.26 12 true *A 3.719,0.094 3.99,0.354 0.271,0.26 12 true *B

*A	for LH Side	*B	for RH Side
	Screw		Connector

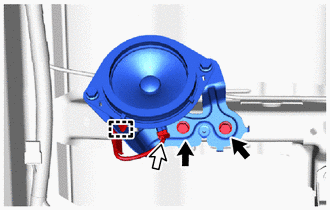

Hide Display 86160Q 5.INSTALL ROOF SPEAKER ASSEMBLY

for Standard Roof:

Install the roof speaker assembly with the 2 bolts.

for High Roof:

Install the roof speaker assembly with the 2 bolts.

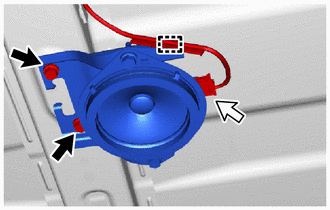

Hide Display 6.INSTALL ROOF SPEAKER WITH BRACKET

for Standard Roof:

Attach the guide and clip and install the roof speaker with bracket.

ii.

0,0 0,0 false

	Bolt
	Connector

Install the 2 bolts.

iii.

Connect the connector and attach the clamp.

for High Roof:

Attach the guide and install the roof speaker with bracket.

ii.

0,0 0,0 false

	Bolt
	Connector

Install the 2 bolts.

iii.

Connect the connector and attach the clamp.

Hide Display 7.INSTALL ROOF HEADLINING ASSEMBLY

for Semi-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Semi-trim)>INSTALLATION201902,201906,_58,_078375,_0380060,RM100000001FZ65,201906,202208,_58,_078375,_0380060,RM100000001IXV3,202208,999999,_58,_078375,_0380060,RM1000000024I17,

for Full-trim:

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING (for Full-trim)>INSTALLATION201902,201906,_58,_078375,_0381233,RM100000001FZ75,201906,202208,_58,_078375,_0381233,RM100000001IXV5,202208,999999,_58,_078375,_0381233,RM1000000024I1A,

Hide Display 8.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (w/ Airbag System)

for 7GR-FKS:

Click hereGeneral>MAINTENANCE>7GR-FKS BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387105,RM100000001GV7O,

for 1GD-FTV:

Click hereGeneral>MAINTENANCE>1GD-FTV BATTERY>INSTALLATION201902,999999,_V1,_078672,_0387106,RM100000001H6FS,

Hide Display 9. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Airbag System)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE201902,201906,_V1,_081196,_0393338,RM100000001HX6R,201906,999999,_V1,_081196,_0393338,RM100000001JBY9,

HINT:: When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART201902,201906,_V1,_081196,_0393338,RM100000001HX6S,201906,999999,_V1,_081196,_0393338,RM100000001IWEY,

Hide Display 10. PERFORM DIAGNOSTIC SYSTEM CHECK (w/ Airbag System)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0387732,RM100000001H9LE,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>DTC CHECK / CLEAR201902,999999,_58,_079257,_0385034,RM100000001GJPZ,

Hide Display 11.CHECK SRS WARNING LIGHT (w/ Airbag System)

for Type A:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type A)>OPERATION CHECK201902,201906,_58,_079257,_0387732,RM100000001H9LC,201906,999999,_58,_079257,_0387732,RM100000001IMNC,

for Type B:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for Type B)>OPERATION CHECK201902,999999,_58,_079257,_0385034,RM100000001GJPW,

Hide Display 12.INSPECT SEAT BELT WARNING SYSTEM (w/ Seat Belt Warning System)

Click hereVehicle Interior>SEAT BELT>SEAT BELT WARNING SYSTEM>OPERATION CHECK201902,201906,_58,_078602,_0385912,RM100000001GPAS,201906,999999,_58,_078602,_0385912,RM100000001IZZ0,
