RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0384880 REAR BLOWER MOTOR(for Rear Cooler) A

HEATING / AIR CONDITIONING  REAR BLOWER MOTOR(for Rear Cooler)  INSTALLATION


PROCEDURE

Hide 87103D 1.INSTALL REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY

a.

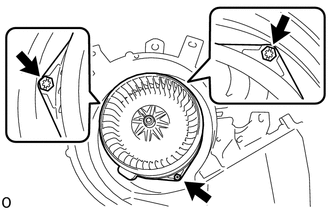

E415145

Install the rear blower with fan motor sub-assembly with the 3 screws.

HINT:

Use the same procedure for the other side.



b.

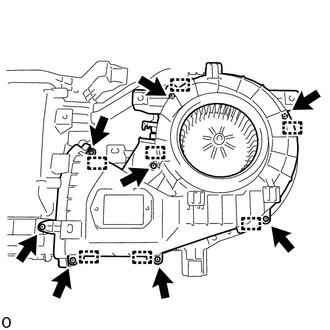

E415144

Attach the guide to install the rear cooling unit case RH with the 8 screws.


c.

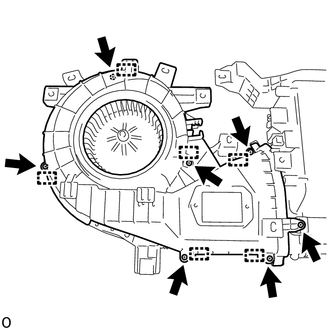

E415143

Attach the guide to install the rear cooling unit case LH with the 7 screws.


d.

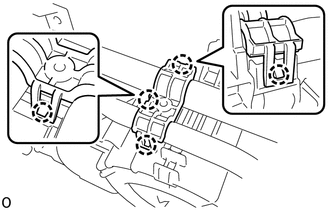

E415135

Attach the claw to install the pipe clamp.


e.

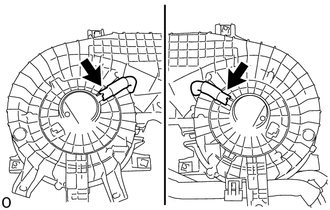

E415142

Install each hose.


f.

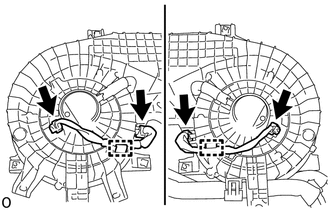

E415141

Connect each connector and attach the clamp to install the cool wiring.


Hide 4. INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL (w/ Front Seat Side Airbag)

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>WORK PROCEDURE

HINT:

When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART
