| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Warning Indicate | Test Mode / Check Mode |
|---|---|---|---|---|---|
| B00301A | Second Row Left Side Airbag Deployment Control Circuit Resistance Below Threshold | One of the following conditions is met:
·
The airbag ECU assembly detects a line short in the rear side squib LH circuit for 2 seconds during the primary check. ·
Rear side squib LH (rear seat airbag assembly LH) malfunction ·
Airbag ECU assembly malfunction |
·
Harness or connector ·
Rear side squib LH (Rear seat airbag assembly LH) ·
Airbag ECU assembly |
Comes on | Applies to check mode |
| Vehicle Condition | ||||
|---|---|---|---|---|
| Pattern 1 | Pattern 2 | Pattern 3 | ||
| Diagnosis Condition | During the primary check | ○ | ○ | ○ |
| Malfunction Status | The airbag ECU assembly detects a line short in the rear side squib LH circuit | ○ | - | - |
| Rear side squib LH (rear seat airbag assembly LH) malfunction | - | ○ | - | |
| Airbag ECU assembly malfunction | - | - | ○ | |
| Detection Time | 2 seconds | 2 seconds | 2 seconds | |
| Number of Trips | 1 trip | 1 trip | 1 trip | |
DTC will be output when conditions for either of the patterns in the table above are met.

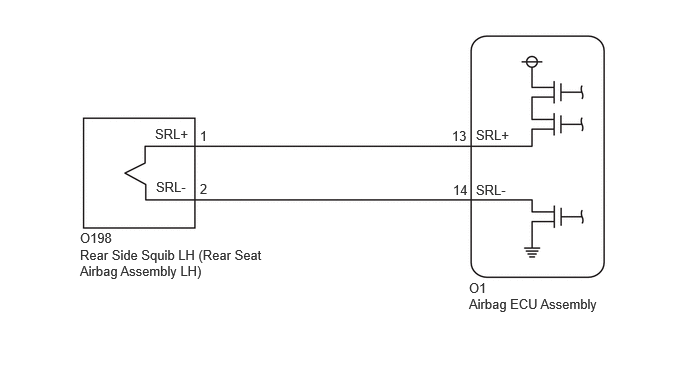

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.
When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.
To perform the simulation method, select Check Mode with the GTS.
Perform the simulation method while checking the Data List.
Turn the ignition switch to ON, and wait for at least 60 seconds.
Check for DTCs.
| Result | Proceed to |
|---|---|
| Current B00301A is output | A |
| Current B00301A is not output | B |
A
B
Perform the simulation method by selecting Check Mode using the GTS.
Perform the simulation method while checking the Data List.
Turn the ignition switch off.
Disconnect the cable from the negative (-) auxiliary battery terminal.
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
Check that the connectors are properly connected to the rear seat airbag assembly LH and airbag ECU assembly.
The connectors are properly connected.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
Disconnect the connectors from the rear seat airbag assembly LH and airbag ECU assembly.
| *1 | Rear Seat Airbag Assembly LH |
| *2 | Airbag ECU Assembly |
| *3 | Wire Harness |
Check that the terminals of the connectors are not deformed or damaged.
The terminals of the connectors are not deformed or damaged.
Check that the short springs of the activation prevention mechanism of the wire harness connector are not deformed or damaged.
The short springs are not deformed or damaged.
| Proceed to |
|---|
| OK |
| NG |
OK
NG
| *1 | Rear Seat Airbag Assembly LH |
| *2 | Airbag ECU Assembly |
| *3 | Wire Harness |
| *a | Front view of wire harness connector
(to Rear Seat Airbag Assembly LH) |
Connect the connector to the airbag ECU assembly.

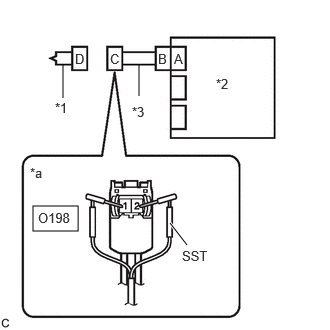

Connect the red wire side of SST (resistance 2.1 Ω) to connector C.
Never connect a tester to the rear seat airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.
Do not forcibly insert SST into the terminals of the connector when connecting it.
Insert SST straight into the terminals of the connector.
Connect the cable to the negative (-) auxiliary battery terminal.
Turn the ignition switch to ON, and wait for at least 60 seconds.
Clear the DTCs stored in memory.
Turn the ignition switch off.
| Proceed to |
|---|
| NEXT |
NEXT
Turn the ignition switch to ON, and wait for at least 60 seconds.
Check for DTCs.
| Result | Proceed to |
|---|---|
| B00301A is not output | A |
| B00301A is output | B |
Codes other than DTC B00301A may be output at this time, but they are not related to this check.
Turn the ignition switch off.
Disconnect the cable from the negative (-) auxiliary battery terminal.
Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
Disconnect SST from connector C.
A
B
Disconnect the connector from the airbag ECU assembly.
| *1 | Rear Seat Airbag Assembly LH |
| *2 | Airbag ECU Assembly |
| *3 | Wire Harness |

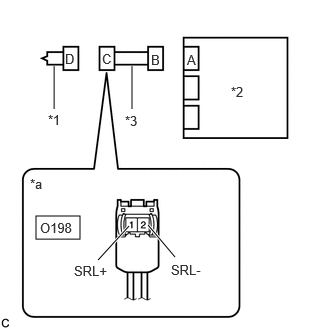

| *a | Front view of wire harness connector
(to Rear Seat Airbag Assembly LH) |
Check for a short in the circuit.
Release the activation prevention mechanism built into connector B.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| O198-1 (SRL+) - O198-2 (SRL-) | Always | 1 MΩ or higher |
| Proceed to |
|---|
| OK |
| NG |
Restore the released activation prevention mechanism of connector B to the original condition.
OK
NG
| *1 | Rear Seat Airbag Assembly LH |
| *2 | Airbag ECU Assembly |
Connect the connectors to the rear seat airbag assembly LH and airbag ECU assembly.
Connect the cable to the negative (-) auxiliary battery terminal.
Turn the ignition switch to ON, and wait for at least 60 seconds.
Clear the DTCs stored in memory.
Turn the ignition switch off.
| Proceed to |
|---|
| NEXT |
NEXT
Turn the ignition switch to ON, and wait for at least 60 seconds.
Check for DTCs.
| Result | Proceed to |
|---|---|
| B00301A is not output | A |
| B00301A is output | B |
Codes other than DTC B00301A may be output at this time, but they are not related to this check.
A
Perform the simulation method by selecting Check Mode using the GTS.
Perform the simulation method while checking the Data List.
B
