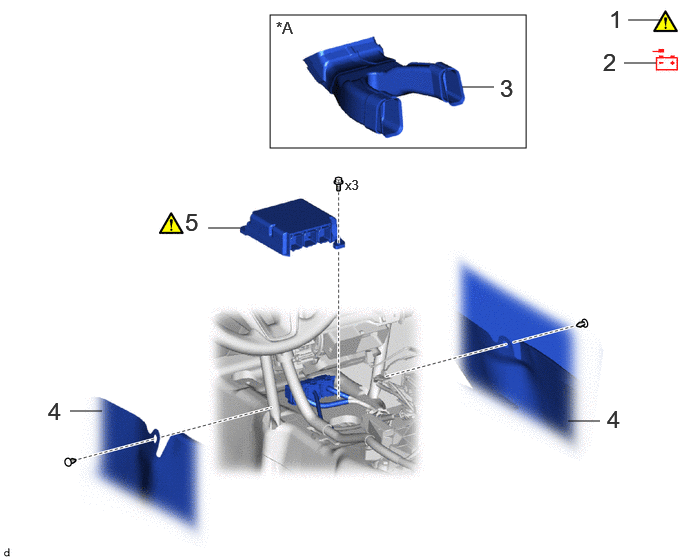

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | ( 202307,999999,_58,_115188,_0510630,RM100000002BZXJ_01_0233,)
|
- | - |
| 2 | DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL | - | - | - | - |
| 3 | NO. 1 CONSOLE BOX DUCT | 58861B | - | - | - |
| 4 | FRONT FLOOR CARPET ASSEMBLY | 58510D | - | - | - |
| 5 | AIRBAG ECU ASSEMBLY | 89170A | ( 202307,999999,_58,_115188,_0510630,RM100000002BZXJ_01_0001,)
|
- | - |
| *A | w/ Rear Air Duct | - | - |
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during airbag ECU assembly removal/installation are shown below.
| Replacement Part or Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Yaw rate and acceleration sensor (airbag ECU assembly) | for HEV Model:
·
Perform "Reset Memory" ·
Perform "Calibration" for Gasoline Model:
·
Calibration |
for HEV Model:
·
DTCs are stored ·
ABS warning light illuminates ·
Brake system warning light (yellow indicator) illuminates ·
Slip indicator light illuminates ·
Electronically controlled brake system disabled or malfunctions for Gasoline Model:
·
DTCs are stored ·
ABS warning light illuminates ·
Slip indicator light illuminates ·
VSC disabled or malfunctions |
for HEV Model:
( 202307,999999,_54,_112606,_0608077,RM100000002C79U,)
for Gasoline Model: ( 202307,999999,_54,_112606,_0608078,RM100000002C7D1,)
|
| Airbag ECU assembly*1 | Write the VIN/Vehicle Identification Number | - | ( 202307,999999,_58,_115188,_0511913,RM100000002CU5U,)
|
| Switch the specification information | |||
| ECU configuration | Vehicle control history (RoB) are stored | ( 202307,202405,_V1,_106911,_0485801,RM100000002CEL1,202405,999999,_V1,_106911,_0485801,RM100000002NHZU,)
|
|
| Update ECU security key | ( 202201,202405,_V1,_106911,_0485801,RM100000001XG8S,202405,999999,_V1,_106911,_0485801,RM100000002NHZW,)
|
||
After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.
When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
|
*1: for Gasoline Model |
||
| Front camera system | Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more. | ( 202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
|
| Stop and start system*1 | Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). | ( 202307,999999,_51,_115233,_0510781,RM100000002CS0B,)
|
Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power door lock control system
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
|
| Power back door system | Fully close the back door by hand.
|
( 202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
1. PRECAUTION
|
|
2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
|
|
for M20A-FKS, M20C-FKS, M20E-FKS:
for M20F-FXS, M20G-FXS:
58861B
3.REMOVE NO. 1 CONSOLE BOX DUCT (w/ Rear Air Duct)
58510D

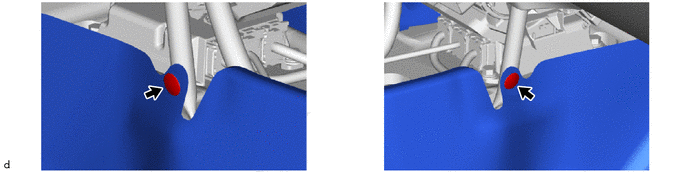

4.REMOVE FRONT FLOOR CARPET ASSEMBLY
89170A
5.REMOVE AIRBAG ECU ASSEMBLY
| *A | w/ Smart Entry and Start System | *B | w/o Smart Entry and Start System |
| *a | Illumination off | - | - |
Check that the ignition switch is off.
Check that the cable is disconnected from the negative (-) auxiliary battery terminal.
Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
If the airbag deploys for any reason, it may cause a serious accident.
|

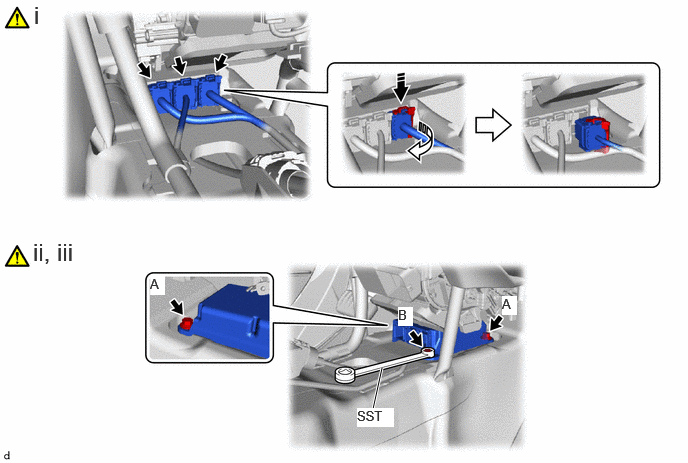

Push the Connector Lock |
|
Pull Out the Lock Lever |
Pull out each connector with its connector lock pushed to disconnect the 3 connectors.
When disconnecting any airbag connector, take care not to damage the airbag wire harness.
Remove the 2 bolts (A).
Using SST, remove the bolt (B) and airbag ECU assembly.
If the airbag ECU assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the airbag ECU assembly with a new one.
