RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0511913 AIRBAG SYSTEM D

SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  SYSTEM DESCRIPTION


FUNCTION OF SRS CONNECTORS


a.

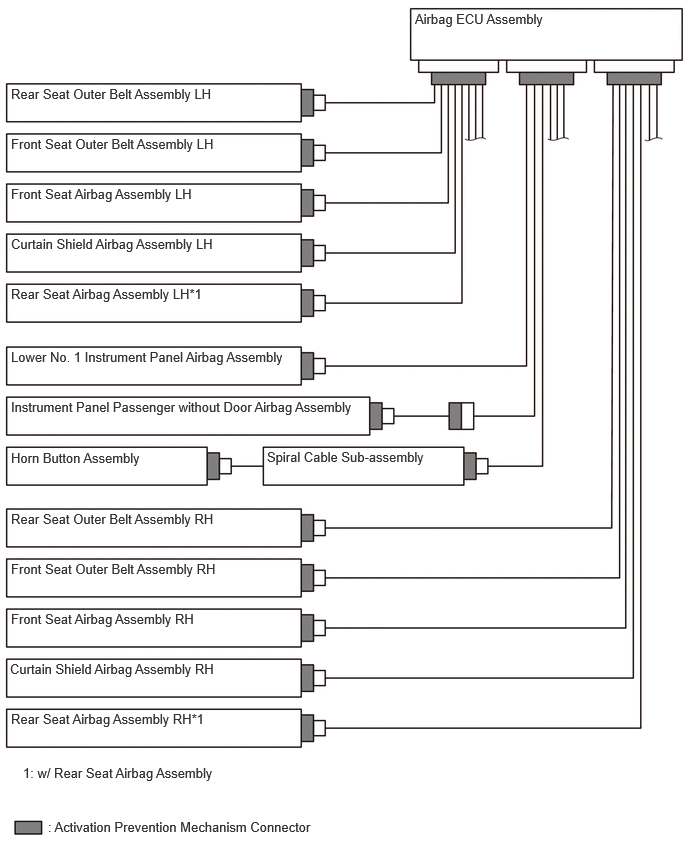

Location of activation prevention mechanism

C465699E02
0.115,0.896 2.667,1.146 2.552,0.25 10 false Rear Seat Outer Belt Assembly LH 0.115,1.417 2.667,1.667 2.552,0.25 10 false Front Seat Outer Belt Assembly LH 0.115,1.938 2.667,2.188 2.552,0.25 10 false Front Seat Airbag Assembly LH 0.115,2.458 2.667,2.708 2.552,0.25 10 false Curtain Shield Airbag Assembly LH 0.115,2.979 2.667,3.229 2.552,0.25 10 false Rear Seat Airbag Assembly LH*1 0.115,3.635 3.167,3.917 3.052,0.281 10 false Lower No. 1 Instrument Panel Airbag Assembly 0.115,4.156 3.917,4.417 3.802,0.26 10 false Instrument Panel Passenger without Door Airbag Assembly 0.115,4.688 2.667,4.938 2.552,0.25 10 false Horn Button Assembly 2.781,4.677 5.333,4.927 2.552,0.25 10 false Spiral Cable Sub-assembly 0.115,5.323 2.667,5.573 2.552,0.25 10 false Rear Seat Outer Belt Assembly RH 0.115,5.844 2.667,6.094 2.552,0.25 10 false Front Seat Outer Belt Assembly RH 0.115,6.365 2.667,6.615 2.552,0.25 10 false Front Seat Airbag Assembly RH 0.104,6.885 2.656,7.135 2.552,0.25 10 false Curtain Shield Airbag Assembly RH 0.115,7.406 2.667,7.656 2.552,0.25 10 false Rear Seat Airbag Assembly RH*1 0.5,8.531 3.781,8.771 3.281,0.24 10 false : Activation Prevention Mechanism Connector 4.323,0.115 6.875,0.365 2.552,0.25 10 false Airbag ECU Assembly 0.24,7.969 2.656,8.167 2.417,0.198 10 false 1: w/ Rear Seat Airbag Assembly


b.

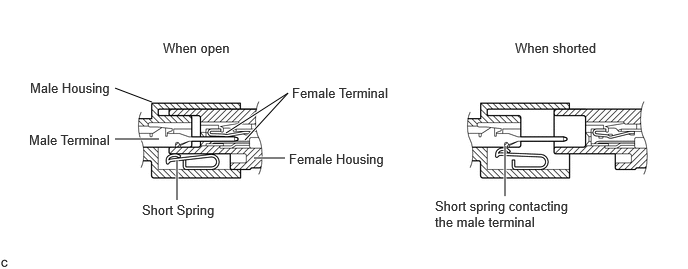

Function of activation prevention mechanism

C238382E23
1.583,1.063 1.198,0.917 true 5.26,1.521 5.26,2.042 true 1.844,1.667 1.844,2.083 true 1.656,1.448 1.198,1.448 true 2.646,1.646 2.969,1.646 true 2.354,1.385 3,0.969 3,0.969 2.552,1.458 true 1.698,0.417 2.583,0.75 0.885,0.333 10 false When open 0.313,0.833 1.208,1.146 0.896,0.313 10 false Male Housing 3.042,0.885 4.115,1.229 1.073,0.344 10 false Female Terminal 0.302,1.375 1.198,1.698 0.896,0.323 10 false Male Terminal 3.01,1.573 4.073,1.938 1.063,0.365 10 false Female Housing 1.479,2.104 2.667,2.448 1.188,0.344 10 false Short Spring 5.365,0.417 6.333,0.75 0.969,0.333 10 false When shorted 4.531,2.063 6.01,2.573 1.479,0.51 10 false Short spring contacting the male terminal

i.

This mechanism is designed to create a short circuit automatically between the positive (+) and negative (-) terminals of a squib power source connector when disconnected.


ii.

The short spring contained in the connector creates a closed circuit on the squib side (no potential difference can occur between both terminals), preventing accidental squib deployment when servicing.



c.

Releasing of activation prevention mechanism

i.

To release the activation prevention mechanism, insert a piece of paper with the same thickness as the male terminal (approximately 0.5 mm (0.0197 in.)) between the terminals and short spring to break the connection.


ii.

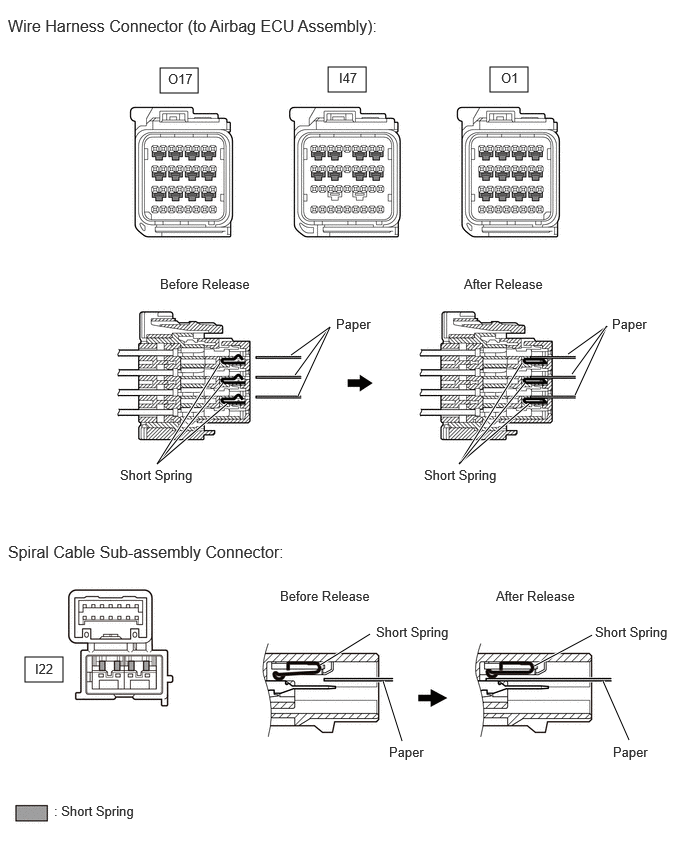

Refer to the following illustrations concerning connectors utilizing the activation prevention mechanism and its release method.

CAUTION:

Never release the activation prevention mechanism on the squib connector even when inspecting with the squib disconnected.


NOTICE:
·

Do not release the activation prevention mechanism unless specified by the troubleshooting procedure.

·

To prevent the terminals and short spring from being damaged, always use a piece of paper with the same thickness as the male terminal.



HINT:

To prevent improper operation due to static electricity, etc., the connector of the SRS airbag squib circuit has a short mechanism, and the airbag terminal is shorted while the connector is disconnected.


C423641E02
1.667,0.708 2.063,0.969 0.396,0.26 3.417,0.698 3.813,0.958 0.396,0.26 5.104,0.698 5.5,0.958 0.396,0.26 0.26,6.844 0.656,7.104 0.396,0.26 3.073,3.906 3.427,3.417 true 5.438,3.781 4.781,4.833 4.781,4.833 5.51,4.208 true 1.656,4.813 2.323,3.99 true 2.292,3.781 1.635,4.833 1.635,4.833 2.365,4.208 true 4.802,4.813 5.469,3.99 true 3.854,6.604 3.333,6.927 true 5.563,6.938 6.167,6.615 true 4.188,7.719 3.99,7.094 true 6.552,7.708 6.281,7.094 true 3.031,3.698 3.438,3.406 3.438,3.406 3.104,4.125 true 5.917,3.688 6.323,3.396 6.323,3.396 5.99,4.115 true 5.958,3.896 6.313,3.406 true 0.083,0.167 4.583,0.583 4.5,0.417 12 false Wire Harness Connector (to Airbag ECU Assembly): 0.083,5.646 3.104,6.052 3.021,0.406 12 false Spiral Cable Sub-assembly Connector: 1.667,2.875 2.75,3.167 1.083,0.292 10 false Before Release 2.917,6.125 3.969,6.417 1.052,0.292 10 false Before Release 4.833,2.875 5.833,3.167 1,0.292 10 false After Release 5.167,6.125 6.146,6.417 0.979,0.292 10 false After Release 1.25,4.865 2.333,5.198 1.083,0.333 10 false Short Spring 4.417,4.865 5.5,5.198 1.083,0.333 10 false Short Spring 0.563,8.365 2.313,8.698 1.75,0.333 10 false : Short Spring 6.198,6.5 7.083,6.781 0.885,0.281 10 false Short Spring 3.917,6.5 4.844,6.802 0.927,0.302 10 false Short Spring 4.052,7.75 4.583,8 0.531,0.25 10 false Paper 3.5,3.292 4,3.583 0.5,0.292 10 false Paper 6.375,3.292 6.875,3.583 0.5,0.292 10 false Paper 6.385,7.75 6.917,8.052 0.531,0.302 10 false Paper 1.75,0.74 2.083,0.948 0.333,0.208 10 false O17 3.531,0.729 3.865,0.938 0.333,0.208 10 false I47 5.219,0.729 5.521,0.938 0.302,0.208 10 false O1 0.365,6.885 0.698,7.135 0.333,0.25 10 false I22
