RM38T0EC _58 Vehicle Interior _115188 SUPPLEMENTAL RESTRAINT SYSTEMS _0510629 REAR SEAT SIDE AIRBAG ASSEMBLY A

SUPPLEMENTAL RESTRAINT SYSTEMS REAR SEAT SIDE AIRBAG ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

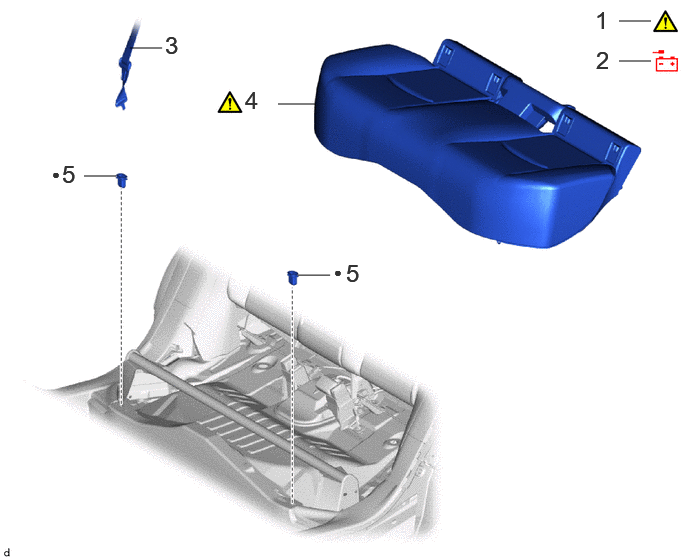

6.448,0.219 6.781,0.219 false 6.448,0.635 6.781,0.635 false 2.896,1.083 3.281,1.083 false 1.354,0.5 1.688,0.5 false 0.875,1.833 1.208,1.833 false 3.104,2.865 3.438,2.865 false 3.479,2.75 3.635,2.948 0.156,0.198 10 false ● 3.604,2.698 3.927,3.031 0.323,0.333 18 false 5 0.542,1.729 0.698,1.927 0.156,0.198 10 false ● 0.646,1.667 0.969,2 0.323,0.333 18 false 5 2.552,0.896 2.875,1.229 0.323,0.333 18 false 4 1.719,0.323 2.042,0.656 0.323,0.333 18 false 3 6.198,0.063 6.521,0.396 0.323,0.333 18 false 1 6.208,0.479 6.635,0.75 0.427,0.271 18 false 2

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_58,_115188,_0510629,RM100000002BZXE_01_0077,)	-	-
2	DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-
3	REAR CENTER SEAT OUTER BELT ASSEMBLY	-	-	-	-
4	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	(202307,999999,_58,_115188,_0510629,RM100000002BZXE_01_0096,)	-	-
5	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-

●

Non-reusable part

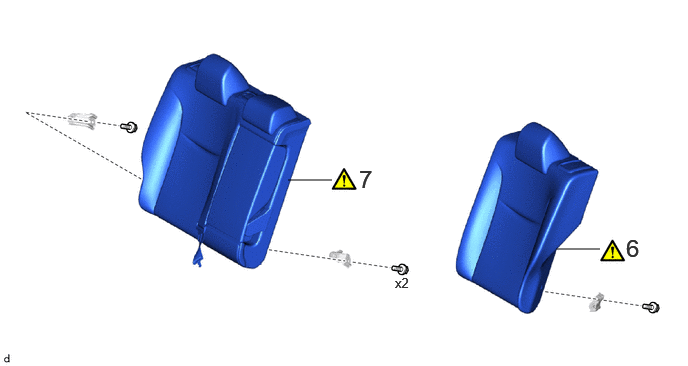

3,1.875 3.458,1.875 false 5.792,2.594 6.25,2.594 false 3.74,1.719 4.021,2.073 0.281,0.354 18 false 7 6.521,2.438 6.802,2.792 0.281,0.354 18 false 6 4.115,2.865 4.469,3.073 0.354,0.208 10 false x2

Procedure		Part Name Code
6	REAR SEATBACK ASSEMBLY LH	-	(202307,999999,_58,_115188,_0510629,RM100000002BZXE_01_0093,)	-	-
7	REAR SEATBACK ASSEMBLY RH	-	(202307,999999,_58,_115188,_0510629,RM100000002BZXE_01_0092,)	-	-

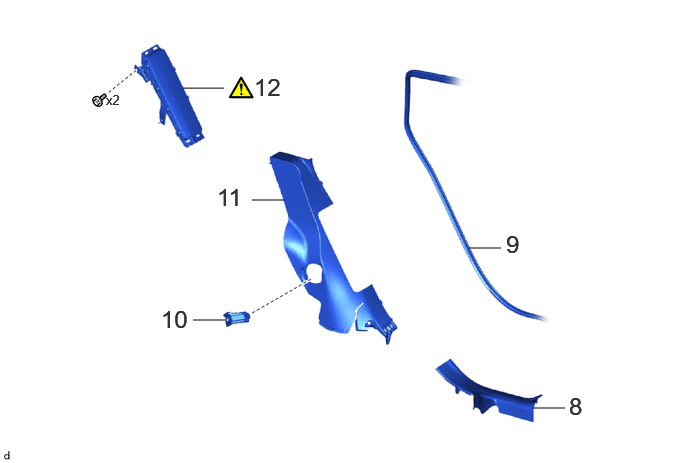

1.906,0.917 2.333,0.917 false 2.625,2.083 2.958,2.083 false 2.01,3.333 2.344,3.333 false 4.885,2.583 5.219,2.583 false 5.552,4.25 5.885,4.25 false 2.646,0.76 3.021,1.125 0.375,0.365 18 false 12 2.26,1.906 2.698,2.281 0.438,0.375 18 false 11 5.271,2.396 5.792,2.792 0.521,0.396 18 false 9 5.927,4.083 6.208,4.438 0.281,0.354 18 false 8 1.677,3.177 2.177,3.604 0.5,0.427 18 false 10 1.104,0.958 1.354,1.125 0.25,0.167 10 false x2

Procedure		Part Name Code
8	REAR DOOR SCUFF PLATE LH	67918A	-	-	-
9	REAR DOOR OPENING TRIM WEATHERSTRIP	62332A	-	-	-
10	REAR SEAT BACK HINGE SUB-ASSEMBLY LH	71304C	-	-	-
11	REAR SEAT SIDE GARNISH LH	62552F	-	-	-
12	REAR SEAT SIDE AIRBAG ASSEMBLY	-	(202307,999999,_58,_115188,_0510629,RM100000002BZXE_01_0099,)	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear seat side airbag assembly removal/installation are shown below.

NOTICE:: After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

HINT:

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*1: for Gasoline Model
Front camera system	Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
Stop and start system*1	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202307,999999,_51,_115233,_0510781,RM100000002CS0B,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; (202201,202405,_58,_115188,_0511913,RM1000000020FQM,202405,999999,_58,_115188,_0511913,RM100000002MT79,)

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.; (202307,999999,_V1,_106911,_0485800,RM100000002CEKY,)

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.; ·

If the airbag deploys for any reason, it may cause a serious accident.

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0505262,RM100000002CKOR,

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL202307,999999,_V1,_104397,_0604345,RM100000002BTXA,

Hide Display 3.DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

Click here(

202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0030,)

Hide Display 4.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

for Gasoline Model:

Click here(202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0022,)

for HEV Model:

Click here(202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0032,)

Hide Display 72693 5.REMOVE REAR SEAT CUSHION LOCK HOOK

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY>REMOVAL202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0001,

Hide Display 6.REMOVE REAR SEATBACK ASSEMBLY LH

Click here(

202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0012,)

Hide Display 7.REMOVE REAR SEATBACK ASSEMBLY RH

Click here(

202307,999999,_58,_114203,_0509293,RM100000002BZXZ_01_0011,)

Hide Display 67918A 8.REMOVE REAR DOOR SCUFF PLATE LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0002,

Hide Display 62332A 9.DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP

Click hereVehicle Interior>SEAT BELT>REAR SEAT OUTER BELT ASSEMBLY>REMOVAL202307,999999,_58,_114202,_0509303,RM100000002BZYK_01_0263,

Hide Display 71304C 10.REMOVE REAR SEAT BACK HINGE SUB-ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0311,

Hide Display 62552F 11.REMOVE REAR SEAT SIDE GARNISH LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0195,

Hide Display 12.REMOVE REAR SEAT SIDE AIRBAG ASSEMBLY

CAUTION:: ·

When storing the horn button assembly, keep the airbag deployment side facing upward.

·

If the airbag deploys for any reason, it may cause a serious accident.

1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B

*A	w/ Smart Entry and Start System	*B	w/o Smart Entry and Start System
*a	illumination off	-	-

Check that the ignition switch is off.

ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:: ·

Wait at least 90 seconds after disconnecting the cable from the negative (-)auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

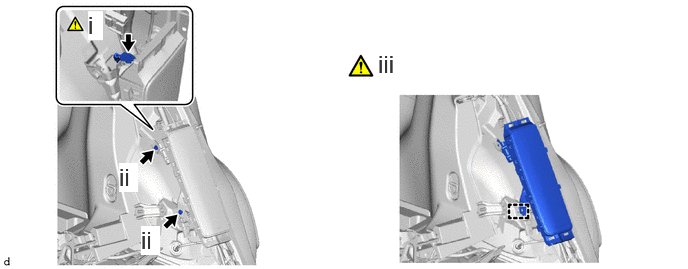

3.938,0.521 4.24,0.823 0.302,0.302 18 false iii 0.917,0.115 1.073,0.417 0.156,0.302 18 true i 1.24,1.698 1.438,2 0.198,0.302 18 true ii 1.469,2.354 1.667,2.656 0.198,0.302 18 true ii

Disconnect the airbag connector.

NOTICE:: When disconnecting any airbag connector, take care not to damage the airbag wire harness.

HINT:: Refer to How to Connect or Disconnect Airbag Connector:; Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR202201,999999,_58,_115188,_0511913,RM1000000020FQX,

ii.

Remove the 2 bolts.

iii.

Disengage the claw to remove the rear seat side airbag assembly.
