SUPPLEMENTAL RESTRAINT SYSTEMS  AIRBAG SYSTEM  B000211  Driver Frontal Stage 2 Deployment Control Circuit Short to Ground


DESCRIPTION

DTC No. Detection Item DTC Detection Condition Trouble Area Warning Indicate Test Mode / Check Mode
B000211 Driver Frontal Stage 2 Deployment Control Circuit Short to Ground One of the following conditions is met:
·

The airbag ECU assembly detects a short to ground in the driver side 2nd squib circuit for 0.5 seconds.

·

Spiral cable sub-assembly malfunction

·

Driver side 2nd squib (horn button assembly) malfunction

·

Airbag ECU assembly malfunction


·

Harness or connector

·

Spiral cable sub-assembly

·

Driver side 2nd squib (Horn button assembly)

·

Airbag ECU assembly


Comes on Applies to check mode

DTC Detection Conditions:
Vehicle Condition
Pattern 1 Pattern 2 Pattern 3 Pattern 4
Diagnosis Condition Ignition switch ON ○ ○ ○ ○
Malfunction Status The airbag ECU assembly detects a short to ground in the driver side 2nd squib circuit ○ - - -
Spiral cable sub-assembly malfunction - ○ - -
Driver side 2nd squib (horn button assembly) malfunction - - ○ -
Airbag ECU assembly malfunction - - - ○
Detection Time 0.5 seconds 0.5 seconds 0.5 seconds 0.5 seconds
Number of Trips 1 trip 1 trip 1 trip 1 trip

HINT:

DTC will be output when conditions for either of the patterns in the table above are met.

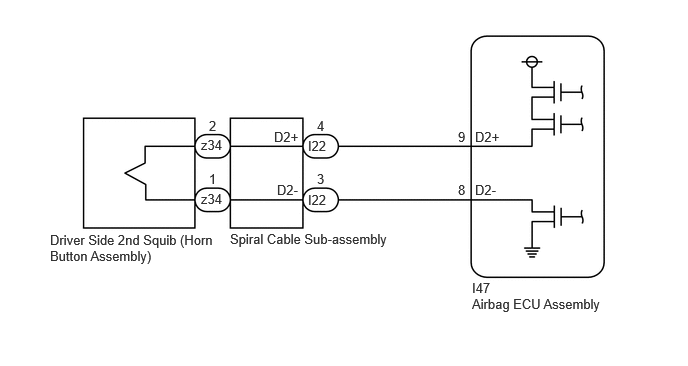

WIRING DIAGRAM

B475053E99
4.948,1.344 5.333,1.625 0.385,0.281 10 false D2+ 4.948,1.896 5.333,2.177 0.385,0.281 10 false D2- 4.771,1.344 5.156,1.625 0.385,0.281 10 false 9 4.771,1.896 5.156,2.177 0.385,0.281 10 false 8 4.917,2.917 5.49,3.104 0.573,0.188 10 false I47 4.917,3.083 6.594,3.427 1.677,0.344 10 false Airbag ECU Assembly 3.208,1.438 3.719,1.74 0.51,0.302 10 false I22 3.208,2 3.719,2.302 0.51,0.302 10 false I22 3.302,1.229 3.813,1.531 0.51,0.302 10 false 4 3.302,1.781 3.813,2.083 0.51,0.302 10 false 3 2.396,2.406 4.146,2.833 1.75,0.427 10 false Spiral Cable Sub-assembly 2.854,1.344 3.24,1.625 0.385,0.281 10 false D2+ 2.885,1.896 3.271,2.177 0.385,0.281 10 false D2- 2.094,1.427 2.604,1.729 0.51,0.302 10 false z34 2.094,1.99 2.604,2.292 0.51,0.302 10 false z34 0.521,2.417 2.229,3.375 1.708,0.958 10 false Driver Side 2nd Squib (Horn Button Assembly) 2.177,1.229 2.688,1.531 0.51,0.302 10 false 2 2.177,1.781 2.688,2.083 0.51,0.302 10 false 1

CAUTION / NOTICE / HINT

NOTICE:
·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART




HINT:
·

To perform the simulation method, select Check Mode with the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DATA LIST / ACTIVE TEST



PROCEDURE

1.CHECK CURRENT DTC
a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444

Result:
Result Proceed to
Current B000211 is output A
Current B000211 is not output B



A

2.CHECK CONNECTION OF CONNECTORS

B

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
·

Perform the simulation method by selecting Check Mode using the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DATA LIST / ACTIVE TEST




2.CHECK CONNECTION OF CONNECTORS
a.

Turn the ignition switch off.


b.

Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



c.

Check that the connectors are properly connected to the horn button assembly, spiral cable sub-assembly and airbag ECU assembly.

OK:

The connectors are properly connected.



Result:
Proceed to
OK
NG



OK

3.CHECK CONNECTORS

NG

CONNECT CONNECTORS PROPERLY

3.CHECK CONNECTORS
a.

Disconnect the connectors from the horn button assembly, spiral cable sub-assembly and airbag ECU assembly.


b.
C371112C08
2.031,1.177 2.031,1.563 false 0.271,1.177 0.271,1.563 false 0.208,1.583 0.75,1.917 0.542,0.333 10 false *1 1.073,1.031 1.333,1.25 0.26,0.219 10 false *2 2.833,1.031 3.167,1.25 0.333,0.219 10 false *3 1.958,1.583 2.417,1.854 0.458,0.271 10 false *4
*1 Horn Button Assembly
*2 Spiral Cable Sub-assembly
*3 Airbag ECU Assembly
*4 Wire Harness


Check that the terminals of the connectors are not deformed or damaged.

OK:

The terminals of the connectors are not deformed or damaged.



c.

Check that the short springs of the activation prevention mechanisms of the wire harness connector and spiral cable sub-assembly connector are not deformed or damaged.

OK:

The short springs are not deformed or damaged.



d.

Check that the spiral cable sub-assembly connector (on the horn button assembly side) is not loose, deformed or damaged.

OK:

The airbag connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.



Result:
Proceed to
OK
NG



OK

4.CLEAR DTC

NG

REPLACE SPIRAL CABLE SUB-ASSEMBLY OR REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CLEAR DTC
a.
C361088C46

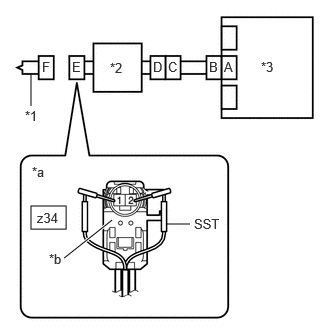

0.323,2.146 0.688,2.385 0.365,0.24 0.323,1.104 0.323,0.771 false 1.979,2.333 1.729,2.333 false 1.167,2.292 0.667,2.688 true 0.26,1.125 0.594,1.417 0.333,0.292 10 false *1 1.146,0.625 1.531,0.948 0.385,0.323 10 false *2 2.719,0.615 3.104,1 0.385,0.385 10 false *3 0.333,1.708 0.708,2.198 0.375,0.49 10 false *a 0.51,2.615 0.938,3 0.427,0.385 10 false *b 2.333,0.615 2.719,1 0.385,0.385 10 false A 2.177,0.615 2.563,1 0.385,0.385 10 false B 1.75,0.615 2.135,1 0.385,0.385 10 false C 1.594,0.615 1.979,1 0.385,0.385 10 false D 0.75,0.615 1.135,1 0.385,0.385 10 false E 0.438,0.615 0.823,1 0.385,0.385 10 false F 0.385,2.188 0.688,2.385 0.302,0.198 10 false z34 2.021,2.25 2.448,2.635 0.427,0.385 10 false SST
*1 Horn Button Assembly
*2 Spiral Cable Sub-assembly
*3 Airbag ECU Assembly
*a Front view of wire harness connector
(to Horn Button Assembly)
*b Color: Black


Connect the connectors to the airbag ECU assembly and spiral cable sub-assembly.


b.

Connect the white wire side of SST (resistance 2.1 Ω) to connector E (black connector).

CAUTION:

Never connect a tester to the horn button assembly for measurement, as this may lead to a serious injury due to airbag deployment.


NOTICE:
·

Do not forcibly insert SST into the terminals of the connector when connecting it.

·

Insert SST straight into the terminals of the connector.




SST
09843-18061

c.

Connect the cable to the negative (-) auxiliary battery terminal.


d.

Turn the ignition switch to ON, and wait for at least 60 seconds.


e.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444

f.

Turn the ignition switch off.


Result:
Proceed to
NEXT



NEXT

5.CHECK HORN BUTTON ASSEMBLY
5.CHECK HORN BUTTON ASSEMBLY
a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444
Result:
Result Proceed to
B000211 is not output A
B000211 is output B


HINT:

Codes other than DTC B000211 may be output at this time, but they are not related to this check.



c.

Turn the ignition switch off.


d.

Disconnect the cable from the negative (-) auxiliary battery terminal.

CAUTION:

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



e.

Disconnect SST from connector E.



A

REPLACE HORN BUTTON ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>STEERING PAD>REMOVAL


B

6.CHECK DRIVER SIDE 2ND SQUIB CIRCUIT
6.CHECK DRIVER SIDE 2ND SQUIB CIRCUIT
a.

Disconnect the connector from the airbag ECU assembly.


b.
C361089C45

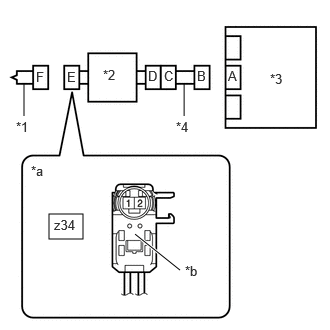

0.51,2.229 0.865,2.49 0.354,0.26 0.25,1.208 0.25,0.875 false 1.875,2.813 1.406,2.438 true 1.917,1.208 1.917,0.875 false 1.833,1.24 2.125,1.5 0.292,0.26 10 false *4 1.073,0.698 1.375,1.042 0.302,0.344 10 false *2 2.813,0.74 3.146,1.229 0.333,0.49 10 false *3 0.323,1.698 0.625,2.042 0.302,0.344 10 false *a 2.375,0.708 2.708,1.198 0.333,0.49 10 false A 2.052,0.708 2.385,1.198 0.333,0.49 10 false B 1.708,0.708 2.042,1.198 0.333,0.49 10 false C 1.542,0.708 1.698,1.188 0.156,0.479 10 false D 0.698,0.719 0.865,1 0.167,0.281 10 false E 0.375,0.719 0.573,1.063 0.198,0.344 10 false F 0.563,2.26 0.854,2.5 0.292,0.24 10 false z34 1.927,2.74 2.271,3.021 0.344,0.281 10 false *b 0.167,1.24 0.458,1.5 0.292,0.26 10 false *1
*1 Horn Button Assembly
*2 Spiral Cable Sub-assembly
*3 Airbag ECU Assembly
*4 Wire Harness
*a Front view of wire harness connector
(to Horn Button Assembly)
*b Color: Black


Check for a short to ground in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
z34-2 - Body ground Always 1 MΩ or higher
z34-1 - Body ground Always 1 MΩ or higher




Result:
Proceed to
OK
NG



OK

7.CLEAR DTC

NG

9.CHECK HARNESS AND CONNECTOR
7.CLEAR DTC
a.
C238334C01
0.313,1.01 0.313,0.344 0.313,0.344 0.563,0.344 false 0.594,0.26 1.063,0.521 0.469,0.26 10 false *1 0.427,1.01 1.031,1.688 0.604,0.677 10 false F 0.583,1.01 1.021,1.573 0.438,0.563 10 false E 1.51,1.01 1.729,1.385 0.219,0.375 10 false D 1.667,1.01 1.917,1.375 0.25,0.365 10 false C 2.094,1.01 2.49,1.354 0.396,0.344 10 false B 2.25,1.01 2.542,1.292 0.292,0.281 10 false A 1,1.01 1.49,1.656 0.49,0.646 10 false *2 2.667,1.021 2.979,1.365 0.313,0.344 10 false *3
*1 Horn Button Assembly
*2 Spiral Cable Sub-assembly
*3 Airbag ECU Assembly


Connect the connectors to the horn button assembly and airbag ECU assembly.


b.

Connect the cable to the negative (-) auxiliary battery terminal.


c.

Turn the ignition switch to ON, and wait for at least 60 seconds.


d.

Clear the DTCs stored in memory.

Body Electrical > SRS Airbag > Clear DTCs
50002 444

e.

Turn the ignition switch off.


Result:
Proceed to
NEXT



NEXT

8.CHECK DTC
8.CHECK DTC
a.

Turn the ignition switch to ON, and wait for at least 60 seconds.


b.

Check for DTCs.

Body Electrical > SRS Airbag > Trouble Codes
50001 444

Result:
Result Proceed to
B000211 is not output A
B000211 is output B


HINT:

Codes other than DTC B000211 may be output at this time, but they are not related to this check.



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING

HINT:
·

Perform the simulation method by selecting Check Mode using the GTS.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>CHECK MODE PROCEDURE

·

Perform the simulation method while checking the Data List.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>DATA LIST / ACTIVE TEST




B

REPLACE AIRBAG ECU ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CENTER AIRBAG SENSOR ASSEMBLY>REMOVAL


9.CHECK HARNESS AND CONNECTOR
a.

Disconnect the connector from the spiral cable sub-assembly.


b.
C238335C73

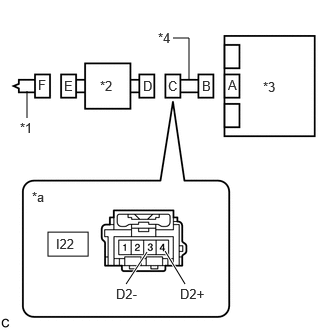

0.5,2.417 0.917,2.667 0.417,0.25 0.281,0.948 0.281,1.229 false 1.531,2.625 1.313,2.958 true 1.719,2.615 1.927,2.958 true 1.969,0.823 1.969,0.396 1.969,0.396 1.802,0.396 false 0.583,2.458 0.958,2.875 0.375,0.417 10 false I22 0.396,0.802 0.615,1.115 0.219,0.313 10 false F 0.667,0.813 0.927,1.156 0.26,0.344 10 false E 1.49,0.813 1.771,1.083 0.281,0.271 10 false D 1.75,0.813 2,1.094 0.25,0.281 10 false C 2.104,0.813 2.344,1.083 0.24,0.271 10 false B 2.375,0.802 2.677,1.156 0.302,0.354 10 false A 1.042,0.813 1.375,1.177 0.333,0.365 10 false *2 0.208,1.25 0.49,1.563 0.281,0.313 10 false *1 2.74,0.823 3.094,1.167 0.354,0.344 10 false *3 0.333,1.969 0.604,2.188 0.271,0.219 10 false *a 1.208,2.979 1.646,3.198 0.438,0.219 10 false D2- 1.646,0.313 1.948,0.583 0.302,0.271 10 false *4 1.875,2.979 2.302,3.198 0.427,0.219 10 false D2+
*1 Horn Button Assembly
*2 Spiral Cable Sub-assembly
*3 Airbag ECU Assembly
*4 Wire Harness
*a Front view of wire harness connector
(to Spiral Cable Sub-assembly)


Check for a short to ground in the circuit.

i.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I22-4 (D2+) - Body ground Always 1 MΩ or higher
I22-3 (D2-) - Body ground Always 1 MΩ or higher




Result:
Proceed to
OK
NG



OK

REPLACE SPIRAL CABLE SUB-ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
