SUPPLEMENTAL RESTRAINT SYSTEMS  STEERING PAD  REMOVAL


CAUTION / NOTICE / HINT

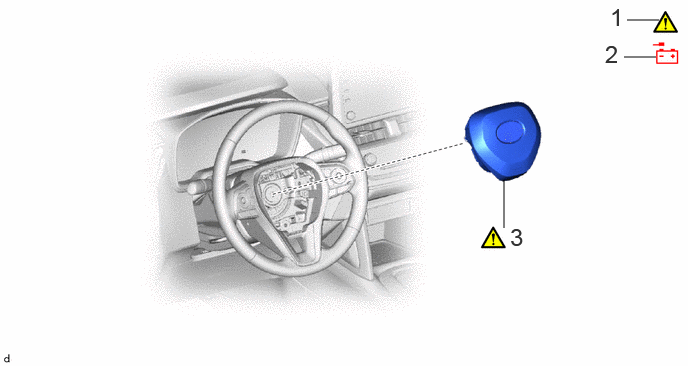

COMPONENTS (REMOVAL)
B605424N01
6.531,0.208 6.865,0.208 false 6.5,0.594 6.833,0.594 false 5.25,1.875 5.25,2.375 false 6.354,0.031 6.635,0.385 0.281,0.354 18 false 1 6.302,0.417 6.583,0.771 0.281,0.354 18 false 2 5.313,2.323 5.594,2.677 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
3 HORN BUTTON ASSEMBLY 45130 (Click here) - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the horn button assembly removal/installation are shown below.

NOTICE:

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.


HINT:

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*1: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more. (Click here)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 1. PRECAUTION

Z101186

CAUTION:
B475753

Be sure to read Precaution thoroughly before servicing.

(Click here)


NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

(Click here)



Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Z101186

CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


·

If the airbag deploys for any reason, it may cause a serious accident.





Hide 45130 3.REMOVE HORN BUTTON ASSEMBLY

Z101186

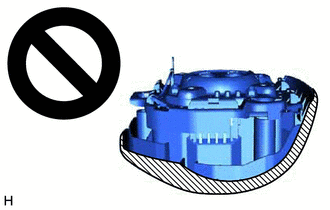

CAUTION:
B417753

·

When storing the horn button assembly, keep the airbag deployment side facing upward.


·

If the airbag deploys for any reason, it may cause a serious accident.




a.
B593996C01
1.417,0.583 0.417,0.583 true 0.219,0.49 0.531,0.646 0.313,0.156 10 false *a 4.083,0.104 4.365,0.458 0.281,0.354 18 false ii 0.167,0.104 0.448,0.458 0.281,0.354 18 false i 2.646,1.802 3.021,2.042 0.375,0.24 12 false *A 1.313,1.792 1.688,2.031 0.375,0.24 12 false *B
*A w/ Smart Entry and Start System *B w/o Smart Entry and Start System
*a Illumination off - -


i.

Check that the ignition switch is off.


ii.

Check that the cable is disconnected from the negative (-) auxiliary battery terminal.

CAUTION:
·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.


·

If the airbag deploys for any reason, it may cause a serious accident.





b.
B625665C01
0.354,0.042 0.635,0.396 0.281,0.354 18 false i 5.573,2.063 5.76,2.323 0.188,0.26 18 true ii 4.833,1.208 5.052,1.469 0.219,0.26 18 true iii 5.24,0.875 5.458,1.135 0.219,0.26 18 true iii 5.75,1.719 5.927,1.969 0.177,0.25 18 true v 5.885,1.375 6.135,1.635 0.25,0.26 18 true iv
V113147

Release in this Direction
V113148

Remove in this Direction

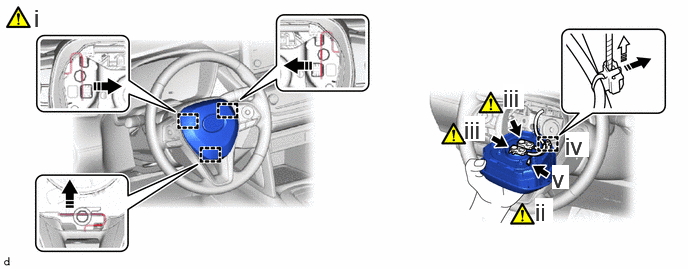

i.

Using a screwdriver, push in the torsion springs to disengage the pins as shown in the illustration.

NOTICE:

Do not drop the horn button assembly.



ii.

Tilt the horn button assembly toward the seat and support it with one hand.

NOTICE:

When disconnecting the horn button assembly, do not pull the airbag wire harness.



iii.

Disconnect the airbag connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR



iv.

Using a screwdriver with its tip wrapped with protective tape, release the lock and remove the wire harness clamp.


v.

Disconnect the horn connector.
