METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM  B132187  Lost Communication with EMV Missing Message


DESCRIPTION

After the combination meter assembly has started, the combination meter assembly attempts to detect the radio and display receiver assembly by performing communication via local bus.

This DTC is stored when the radio and display receiver assembly has been detected but communication between the combination meter assembly and radio and display receiver assembly is interrupted.

DTC No. Detection Item DTC Detection Condition Trouble Area
B132187 Lost Communication with EMV Missing Message
Diagnosis Condition:
·

The combination meter assembly has started

·

The radio and display receiver assembly has started


Malfunction Status:

After the radio and display receiver assembly is detected, communication via local bus is interrupted


Malfunction Time:

30 seconds or more


·

Harness or connector

·

Radio and display receiver assembly

·

Combination meter assembly



WIRING DIAGRAM



w/ Navigation System

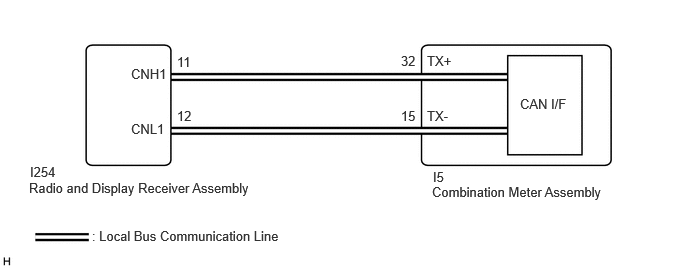

E367214E30
1.365,0.688 1.771,0.885 0.406,0.198 10 false CNH1 1.365,1.26 1.771,1.458 0.406,0.198 10 false CNL1 1.844,0.563 2.427,0.875 0.583,0.313 10 false 11 1.844,1.125 2.417,1.552 0.573,0.427 10 false 12 4.177,0.552 4.594,0.823 0.417,0.271 10 false 32 4.177,1.125 4.479,1.385 0.302,0.26 10 false 15 4.448,1.125 4.917,1.323 0.469,0.198 10 false TX- 4.448,0.552 4.938,0.76 0.49,0.208 10 false TX+ 5.417,1 5.969,1.177 0.552,0.177 10 false CAN I/F 4.5,1.917 6.365,2.135 1.865,0.219 10 false Combination Meter Assembly 0.302,1.875 2.896,2.167 2.594,0.292 10 false Radio and Display Receiver Assembly 0.313,1.708 1.583,1.948 1.271,0.24 10 false I254 4.51,1.76 4.792,1.958 0.281,0.198 10 false I5 0.958,2.375 5.542,2.573 4.583,0.198 10 false : Local Bus Communication Line


w/o Navigation System

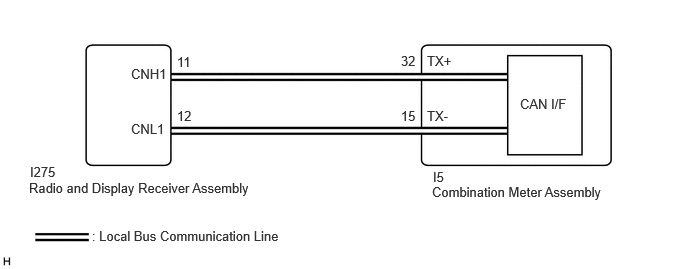

E367214E27
1.365,0.688 1.771,0.885 0.406,0.198 10 false CNH1 1.365,1.26 1.771,1.458 0.406,0.198 10 false CNL1 1.844,0.563 2.427,0.875 0.583,0.313 10 false 11 1.844,1.125 2.417,1.552 0.573,0.427 10 false 12 4.177,0.552 4.594,0.823 0.417,0.271 10 false 32 4.177,1.125 4.479,1.385 0.302,0.26 10 false 15 4.448,1.125 4.917,1.323 0.469,0.198 10 false TX- 4.448,0.552 4.938,0.76 0.49,0.208 10 false TX+ 5.417,1 5.969,1.177 0.552,0.177 10 false CAN I/F 4.5,1.917 6.365,2.135 1.865,0.219 10 false Combination Meter Assembly 0.302,1.875 2.896,2.167 2.594,0.292 10 false Radio and Display Receiver Assembly 0.313,1.708 1.583,1.948 1.271,0.24 10 false I275 4.51,1.76 4.792,1.958 0.281,0.198 10 false I5 0.958,2.375 5.542,2.573 4.583,0.198 10 false : Local Bus Communication Line


CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

When replacing the combination meter assembly, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

If the power source circuit for any of the following ECUs is malfunctioning, DTCs may not be correctly output. Therefore, before performing troubleshooting using the following procedure, perform inspections related to the power source circuit of each ECU.

-

Radio and display receiver assembly

w/ Navigation System: Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION SYSTEM (Production Date from 2023/04)>HOW TO PROCEED WITH TROUBLESHOOTING

w/o Navigation System: Click hereAudio / Visual / Telematics>AUDIO / VIDEO>AUDIO AND VISUAL SYSTEM (Production Date from 2023/04)>HOW TO PROCEED WITH TROUBLESHOOTING

-

Combination meter assembly

Click hereVehicle Interior>METER / GAUGE / DISPLAY>METER / GAUGE SYSTEM>Entire Combination Meter does not Operate




PROCEDURE

1.CONFIRM MODEL
a.

Choose the model to be inspected.

Result:
Result Proceed to
w/ Navigation System A
w/o Navigation System B




A

2.CHECK FOR DTC

B

6.CHECK FOR DTC
2.CHECK FOR DTC
a.

Check each system for DTCs.

Body Electrical > Combination Meter > Trouble Codes
50001 409
Body Electrical > Navigation System > Trouble Codes
50001 496

b.

Confirm the DTC combinations of the following table.

DTC Output Pattern DTC Output Part Name
(Display on GTS)
Combination Meter Assembly
(Combination Meter) 		Radio and Display Receiver Assembly
(Navigation System)
1 B132187 U11D087
2 B132187 Not output

Result:
Result Proceed to
DTC output pattern 1 A
DTC output pattern 2 B




A

3.INSPECT EACH ECU (INTERNAL MALFUNCTION)

B

4.CLEAR DTC
3.INSPECT EACH ECU (INTERNAL MALFUNCTION)
a.

Remove 1 of the following ECUs.

·

Radio and display receiver assembly

HINT:

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


·

Combination meter assembly

HINT:

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL




b.

Measure the resistance of the removed ECU.

NOTICE:
·

Refer to the following table for the specified conditions of each ECU.

·

If the specified conditions are met, repeat the inspection procedure from step (a) for another ECU.



HINT:

If the results of an ECU are not as specified, it is suspected that the ECU is the cause of the DTC.


i.
E441823C44
1.469,0.271 1.917,0.531 0.448,0.26 1.813,1.323 1.135,0.531 true 1.938,1.323 2.583,0.594 true 1.573,0.313 2.031,0.51 0.458,0.198 10 false I254 0.75,0.417 1.49,0.604 0.74,0.188 10 false CNL1 2.646,0.469 3.271,0.667 0.625,0.198 10 false CNH1 0.104,0.094 0.417,0.292 0.313,0.198 10 false *a
*a Component without harness connected
(Radio and Display Receiver Assembly)


Inspect the radio and display receiver assembly.

Standard Resistance:
Tester Connection Condition Specified Condition
I254-11 (CNH1) - I254-12 (CNL1) Always 108 to 132 Ω



ii.

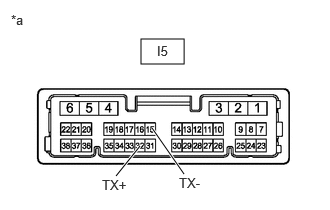

E478710C28
1.469,0.406 1.917,0.667 0.448,0.26 1.458,1.521 1.208,1.833 true 1.917,1.813 1.583,1.333 true 1.635,0.448 2.094,0.646 0.458,0.198 10 false I5 1.865,1.823 2.604,2.01 0.74,0.188 10 false TX- 1.063,1.844 1.688,2.042 0.625,0.198 10 false TX+ 0.115,0.125 0.427,0.323 0.313,0.198 10 false *a
*a Component without harness connected
(Combination Meter Assembly)


Inspect the combination meter assembly.

Standard Resistance:
Tester Connection Condition Specified Condition
I5-32 (TX+) - I5-15 (TX-) Always 108 to 132 Ω


Result:
Result Proceed to
The results of all ECUs are as specified A
The results of the radio and display receiver assembly is not as specified B
The results of the combination meter assembly is not as specified C





A

REPAIR OR REPLACE HARNESS OR CONNECTOR

B

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


C

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


4.CLEAR DTC
a.

Clear the DTCs.

Body Electrical > Combination Meter > Clear DTCs
50002 409
Result:
Proceed to
NEXT




NEXT

5.CHECK FOR DTC
5.CHECK FOR DTC
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.

HINT:

By disconnecting the cable from the negative (-) auxiliary battery terminal, the internally stored information related to local bus communication for the combination meter assembly is reset.



b.

Disconnect the I254 radio and display receiver assembly connector.


c.

Connect the cable to the negative (-) auxiliary battery terminal.


d.

Turn the ignition switch to ON.


e.

Wait 30 seconds or more.


f.

Check for DTCs.

Body Electrical > Combination Meter > Trouble Codes
50001 409
HINT:

By resetting the internally stored information related to local bus communication, the detection conditions of DTC B132187 are not met as the combination meter assembly does not detect the radio and display receiver assembly. If the combination meter assembly is operating normally, DTC B132187 will not be stored.


Result:
Result Proceed to
DTC B132187 is not output A
DTC B132187 is output B




A

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


B

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


6.CHECK FOR DTC
a.

Check each system for DTCs.

Body Electrical > Combination Meter > Trouble Codes
50001 409
Body Electrical > Navigation System > Trouble Codes
50001 496

b.

Confirm the DTC combinations of the following table.

DTC Output Pattern DTC Output Part Name
(Display on GTS)
Combination Meter Assembly
(Combination Meter) 		Radio and Display Receiver Assembly
(Navigation System)
1 B132187 U11D087
2 B132187 Not output

Result:
Result Proceed to
DTC output pattern 1 A
DTC output pattern 2 B




A

7.INSPECT EACH ECU (INTERNAL MALFUNCTION)

B

8.CLEAR DTC
7.INSPECT EACH ECU (INTERNAL MALFUNCTION)
a.

Remove 1 of the following ECUs.

·

Radio and display receiver assembly

HINT:

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


·

Combination meter assembly

HINT:

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL




b.

Measure the resistance of the removed ECU.

NOTICE:
·

Refer to the following table for the specified conditions of each ECU.

·

If the specified conditions are met, repeat the inspection procedure from step (a) for another ECU.



HINT:

If the results of an ECU are not as specified, it is suspected that the ECU is the cause of the DTC.


i.

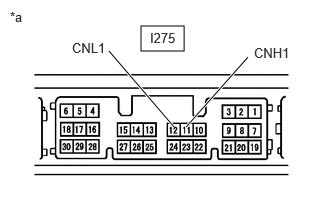

E441823C45
1.469,0.271 1.917,0.531 0.448,0.26 1.813,1.323 1.135,0.531 true 1.938,1.323 2.583,0.594 true 1.563,0.313 2.021,0.51 0.458,0.198 10 false I275 0.75,0.417 1.49,0.604 0.74,0.188 10 false CNL1 2.646,0.469 3.271,0.667 0.625,0.198 10 false CNH1 0.104,0.094 0.417,0.292 0.313,0.198 10 false *a
*a Component without harness connected
(Radio and Display Receiver Assembly)


Inspect the radio and display receiver assembly.

Standard Resistance:
Tester Connection Condition Specified Condition
I275-11 (CNH1) - I275-12 (CNL1) Always 108 to 132 Ω



ii.
E478710C28
1.469,0.406 1.917,0.667 0.448,0.26 1.458,1.521 1.208,1.833 true 1.917,1.813 1.583,1.333 true 1.635,0.448 2.094,0.646 0.458,0.198 10 false I5 1.865,1.823 2.604,2.01 0.74,0.188 10 false TX- 1.063,1.844 1.688,2.042 0.625,0.198 10 false TX+ 0.115,0.125 0.427,0.323 0.313,0.198 10 false *a
*a Component without harness connected
(Combination Meter Assembly)


Inspect the combination meter assembly.

Standard Resistance:
Tester Connection Condition Specified Condition
I5-32 (TX+) - I5-15 (TX-) Always 108 to 132 Ω


Result:
Result Proceed to
The results of all ECUs are as specified A
The results of the radio and display receiver assembly is not as specified B
The results of the combination meter assembly is not as specified C





A

REPAIR OR REPLACE HARNESS OR CONNECTOR

B

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>NAVIGATION / MULTI INFO DISPLAY>NAVIGATION RECEIVER>REMOVAL


C

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


8.CLEAR DTC
a.

Clear the DTCs.

Body Electrical > Combination Meter > Clear DTCs
50002 409
Result:
Proceed to
NEXT




NEXT

9.CHECK FOR DTC
9.CHECK FOR DTC
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.

HINT:

By disconnecting the cable from the negative (-) auxiliary battery terminal, the internally stored information related to local bus communication for the combination meter assembly is reset.



b.

Disconnect the I275 radio and display receiver assembly connector.


c.

Connect the cable to the negative (-) auxiliary battery terminal.


d.

Turn the ignition switch to ON.


e.

Wait 30 seconds or more.


f.

Check for DTCs.

Body Electrical > Combination Meter > Trouble Codes
50001 409
HINT:

By resetting the internally stored information related to local bus communication, the detection conditions of DTC B132187 are not met as the combination meter assembly does not detect the radio and display receiver assembly. If the combination meter assembly is operating normally, DTC B132187 will not be stored.


Result:
Result Proceed to
DTC B132187 is not output A
DTC B132187 is output B




A

REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

Click hereAudio / Visual / Telematics>AUDIO / VIDEO>RADIO RECEIVER>REMOVAL


B

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL
