RM38T0EC _56 Audio / Visual / Telematics _111966 AUDIO / VIDEO _0499963 RADIO RECEIVER A

AUDIO / VIDEO  RADIO RECEIVER  REMOVAL


CAUTION / NOTICE / HINT

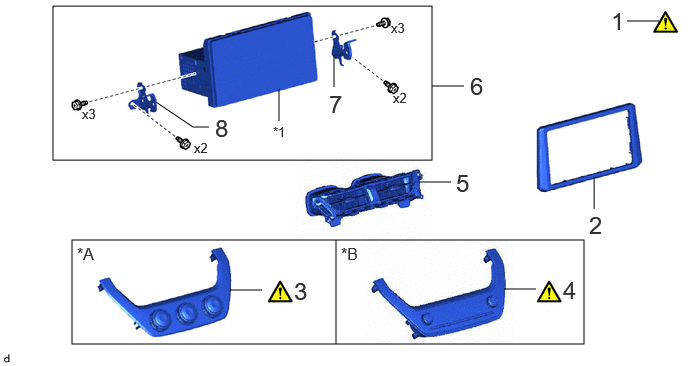

COMPONENTS (REMOVAL)
E473597N01
0.552,0.063 4.5,1.667 3.948,1.604 0.75,2.5 6.083,3.583 5.333,1.083 5.25,3.01 5.583,3.01 false 4.365,1.896 4.698,1.896 false 4.5,0.896 4.833,0.896 false 6.531,0.219 6.865,0.219 false 1.625,1.063 2.01,1.323 2.01,1.323 2.177,1.323 false 2.906,1.26 2.906,0.927 false 3.479,0.906 3.479,0.573 false 2.396,3.021 2.729,3.021 false 6.188,2.177 6.188,1.844 false 3.5,3.583 3.5,2.5 false 5.865,2.875 6.146,3.229 0.281,0.354 18 false 4 4.75,1.76 5.031,2.115 0.281,0.354 18 false 5 4.896,0.75 5.177,1.104 0.281,0.354 18 false 6 6.365,0.073 6.646,0.427 0.281,0.354 18 false 1 2.844,1.292 3.125,1.5 0.281,0.208 10 false *1 3.427,0.938 3.708,1.292 0.281,0.354 18 false 7 2.24,1.188 2.521,1.542 0.281,0.354 18 false 8 0.854,1.104 1.167,1.302 0.313,0.198 10 false x3 4.073,0.208 4.385,0.406 0.313,0.198 10 false x3 4.094,0.938 4.406,1.135 0.313,0.198 10 false x2 2.021,1.458 2.333,1.656 0.313,0.198 10 false x2 6.135,2.198 6.417,2.552 0.281,0.354 18 false 2 3.063,2.885 3.344,3.24 0.281,0.354 18 false 3 0.802,2.542 1.177,2.781 0.375,0.24 12 false *A 3.552,2.542 3.927,2.781 0.375,0.24 12 false *B

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY 55405B - - -
3 LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY 55406B (Click here) - -
4 AIR CONDITIONING CONTROL ASSEMBLY 55900 (Click here) - -
5 CENTER INSTRUMENT PANEL REGISTER ASSEMBLY 55670A - - -
6 RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET - - - -
7 NO. 1 RADIO RECEIVER BRACKET 86211J - - -
8 NO. 2 RADIO RECEIVER BRACKET 86212C - - -

*A for Mechanical Control Type *B for Electrical Control Type
*1 RADIO AND DISPLAY RECEIVER ASSEMBLY - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during radio and display receiver assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Radio and display receiver assembly Software update - See Service Bulletin for the registration method.

PROCEDURE

Hide 1. PRECAUTION

Z101186

NOTICE:

When replacing the radio and display receiver assembly, always replace it with a new one. If a radio and display receiver assembly which was installed to another vehicle is used, the following may occur:

·

A communication malfunction DTC may be stored.

·

The radio and display receiver assembly may not operate normally.


Click here(Click here)



Hide 55406B 3.REMOVE LOWER CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY (for Mechanical Control Type)

Z101186

Click here(Click here)

Hide 55900 4.REMOVE AIR CONDITIONING CONTROL ASSEMBLY (for Electrical Control Type)

Z101186

Click here(Click here)

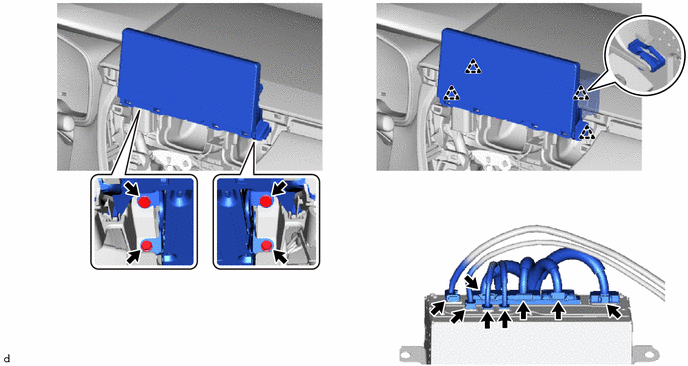

Hide 6.REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET

HINT:

The illustrations are representative examples, and details may differ.


a.
E504706


Hide 86211J 7.REMOVE NO. 1 RADIO RECEIVER BRACKET

a.
E473599


Hide 86212C 8.REMOVE NO. 2 RADIO RECEIVER BRACKET

a.

Use the same procedure for the No. 1 radio receiver bracket.
