METER / GAUGE / DISPLAY  METER / GAUGE SYSTEM  Entire Combination Meter does not Operate


DESCRIPTION

This circuit is the power source circuit for the combination meter assembly. This circuit provides two types of power sources; one is a constant power source, and the other is an IG power source.

WIRING DIAGRAM

for HEV Model

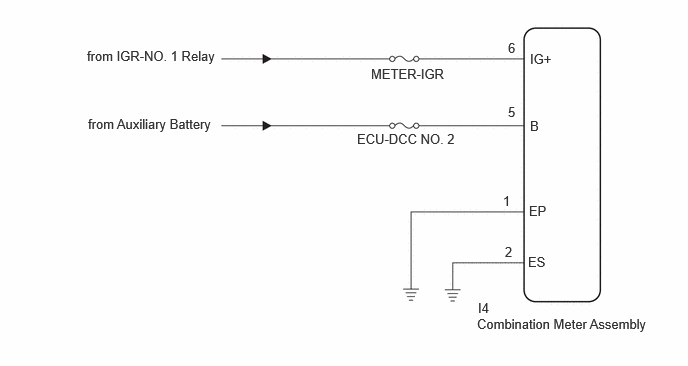

E517445E01
0.906,0.5 2.26,0.698 1.354,0.198 10 false from IGR-NO. 1 Relay 0.917,1.208 2.938,1.542 2.021,0.333 10 false from Auxiliary Battery 3.719,1.365 4.854,1.813 1.135,0.448 10 false ECU-DCC NO. 2 3.865,0.688 4.635,0.865 0.771,0.177 10 false METER-IGR 4.969,3.292 6.792,3.51 1.823,0.219 10 false Combination Meter Assembly 5.292,0.417 5.5,0.583 0.208,0.167 10 false 6 5.521,0.531 5.802,0.708 0.281,0.177 10 false IG+ 5.292,1.083 5.5,1.25 0.208,0.167 10 false 5 5.24,2.01 5.448,2.177 0.208,0.167 10 false 1 5.26,2.542 5.469,2.708 0.208,0.167 10 false 2 5.521,1.229 5.802,1.417 0.281,0.188 10 false B 5.51,2.115 5.76,2.313 0.25,0.198 10 false EP 5.5,2.646 5.75,2.844 0.25,0.198 10 false ES 4.979,3.125 5.313,3.302 0.333,0.177 10 false I4


for Gasoline Model

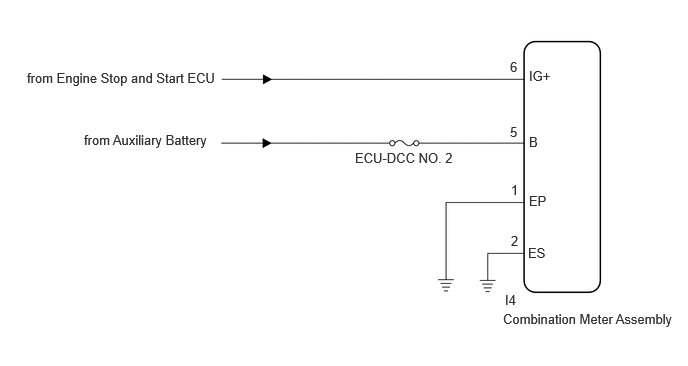

E476425E02
0.281,0.729 2.271,1.083 1.99,0.354 10 false from Engine Stop and Start ECU 0.875,1.375 2.896,1.708 2.021,0.333 10 false from Auxiliary Battery 3.698,1.563 4.917,1.802 1.219,0.24 10 false ECU-DCC NO. 2 5.24,3.24 7.063,3.458 1.823,0.219 10 false Combination Meter Assembly 5.313,0.615 5.521,0.781 0.208,0.167 10 false 6 5.51,0.708 5.792,0.885 0.281,0.177 10 false IG+ 5.313,1.292 5.521,1.458 0.208,0.167 10 false 5 5.323,1.896 5.531,2.063 0.208,0.167 10 false 1 5.323,2.427 5.531,2.594 0.208,0.167 10 false 2 5.51,1.396 5.677,1.573 0.167,0.177 10 false B 5.51,2.01 5.76,2.208 0.25,0.198 10 false EP 5.5,2.552 5.75,2.75 0.25,0.198 10 false ES 5.26,3.042 5.594,3.219 0.333,0.177 10 false I4

CAUTION / NOTICE / HINT

NOTICE:
·

When replacing the combination meter assembly, always replace it with a new one. If a combination meter assembly which was installed to another vehicle is used, the information stored in it will not match the information from the vehicle and a DTC may be stored.

·

Inspect the fuses of circuits related to this system before performing the following procedure.

·

When replacing the combination meter assembly, update the ECU security key.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>UPDATE ECU SECURITY KEY



PROCEDURE

1.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

Disconnect the combination meter assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I4-1 (EP) - Body ground Always Below 1 Ω
I4-2 (ES) - Body ground Always Below 1 Ω



c.
E436104C39
1.427,0.292 1.865,0.521 0.438,0.229 2.031,1.823 2.406,1.063 true 2.854,1.813 2.667,1.073 true 0.396,1.813 0.719,1.052 true 1.052,1.813 0.938,1.052 true 2.76,1.833 3.073,2.031 0.313,0.198 10 false IG+ 1.583,0.323 1.896,0.521 0.313,0.198 10 false I4 0.135,0.104 0.448,0.302 0.313,0.198 10 false *a 1.99,1.833 2.219,2.052 0.229,0.219 10 false B 0.323,1.833 0.573,2.052 0.25,0.219 10 false EP 0.969,1.854 1.25,2.073 0.281,0.219 10 false ES
*a Front view of wire harness connector
(to Combination Meter Assembly)


Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
I4-6 (IG+) - Body ground Ignition switch off Below 1 V
Ignition switch ON*1 11 to 14 V
Ignition switch ON*2 10.5 to 16 V
I4-5 (B) - Body ground Ignition switch off 11 to 14 V


*1: w/o Stop and Start System

*2: w/ Stop and Start System



Result:
Proceed to
OK
NG



OK

REPLACE COMBINATION METER ASSEMBLY

Click hereVehicle Interior>METER / GAUGE / DISPLAY>COMBINATION METER>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
