RM38T0EC _54 Brake _112606 BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS _0608077 ELECTRONICALLY CONTROLLED BRAKE SYSTEM(for HEV Model) C

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS ELECTRONICALLY CONTROLLED BRAKE SYSTEM(for HEV Model) C13807E Stop Lamp Relay Actuator Stuck On

DESCRIPTION

When any of the following conditions are met, the skid control ECU (brake actuator assembly) sets the drive output (STPO) ON which operates the stop light control relay (stop light switch assembly) and turns on the stop lights.

Illumination Conditions:

Pre-collision brake is operating.

The dynamic radar cruise control system is operating and is applying the brakes.

Secondary collision brake is operating.

Brake hold is operating.

The parking brake is engaged while the vehicle is being driven.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	DTC Output from	Note
C13807E	Stop Lamp Relay Actuator Stuck On	When the voltage at the +BS terminal is between 10 V or more and the stop light control relay (stop light switch assembly) drive output (STPO) is off, the signal at the STP2 terminal is different from the input signal at the STP terminal for 5 seconds or more.	· Wire harness or connector · Stop light switch assembly · Skid control ECU (brake actuator assembly) · Rear combination light assembly LH · Rear combination light assembly RH · Center stop light set	Does not come on	Brake/EPB	Output ECU: Skid control ECU (brake actuator assembly)

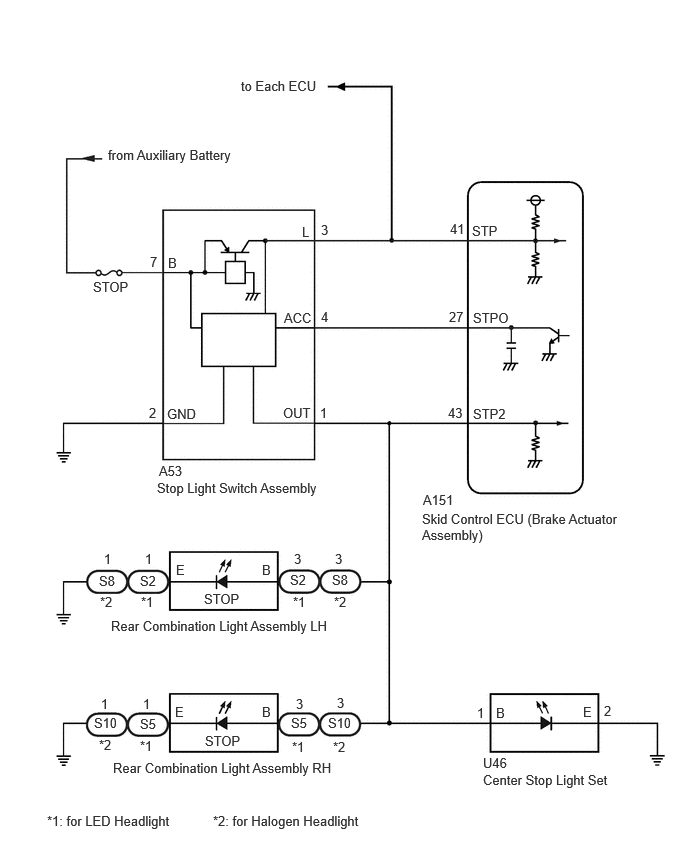

WIRING DIAGRAM

2.51,0.813 3.438,1.031 0.927,0.219 10 false to Each ECU 4.917,2.323 5.354,2.521 0.438,0.198 10 false STP 4.927,3.229 5.51,3.396 0.583,0.167 10 false STPO 4.927,4.229 5.427,4.51 0.5,0.281 10 false STP2 1.74,4.229 2.51,4.427 0.771,0.198 10 false GND 2.948,4.219 3.719,4.417 0.771,0.198 10 false OUT 2.958,3.229 3.479,3.427 0.521,0.198 10 false ACC 3.146,2.333 3.417,2.583 0.271,0.25 10 false L 1.031,5.969 1.802,6.167 0.771,0.198 10 false S8 1.156,6.438 3.833,6.698 2.677,0.26 10 false Rear Combination Light Assembly LH 0.979,7.448 1.75,7.646 0.771,0.198 10 false S10 5.031,7.865 5.802,8.063 0.771,0.198 10 false U46 4.406,5.125 4.927,5.323 0.521,0.198 10 false A151 4.396,5.323 6.51,5.719 2.115,0.396 10 false Skid Control ECU (Brake Actuator Assembly) 1.656,4.823 2.156,5.073 0.5,0.25 10 false A53 1.635,5 3.75,5.365 2.115,0.365 10 false Stop Light Switch Assembly 1.125,1.531 2.708,1.813 1.583,0.281 10 false from Auxiliary Battery 0.969,2.906 1.49,3.188 0.521,0.281 10 false STOP 1.75,2.656 2.021,2.906 0.271,0.25 10 false B 1.563,2.646 1.833,2.896 0.271,0.25 10 false 7 1.552,4.219 1.802,4.469 0.25,0.25 10 false 2 3.344,2.313 3.594,2.563 0.25,0.25 10 false 3 3.344,3.219 3.594,3.469 0.25,0.25 10 false 4 3.333,4.219 3.583,4.469 0.25,0.25 10 false 1 4.688,2.302 4.938,2.552 0.25,0.25 10 false 41 4.677,3.219 4.927,3.469 0.25,0.25 10 false 27 4.667,4.219 4.917,4.469 0.25,0.25 10 false 43 1.51,5.74 1.927,5.99 0.417,0.25 10 false 1 3.063,5.74 3.396,5.99 0.333,0.25 10 false 3 3.083,7.25 3.333,7.5 0.25,0.25 10 false 3 1.052,7.25 1.302,7.5 0.25,0.25 10 false 1 4.969,7.344 5.219,7.594 0.25,0.25 10 false 1 6.292,7.323 6.542,7.573 0.25,0.25 10 false 2 1.177,7.917 3.906,8.208 2.729,0.292 10 false Rear Combination Light Assembly RH 5.031,8.042 6.521,8.542 1.49,0.5 10 false Center Stop Light Set 1.833,5.854 2.167,6.104 0.333,0.25 10 false E 2.729,7.333 3.125,7.573 0.396,0.24 10 false B 2.729,5.854 3.167,6.052 0.438,0.198 10 false B 1.823,7.333 2.156,7.583 0.333,0.25 10 false E 6.073,7.333 6.406,7.583 0.333,0.25 10 false E 5.167,7.344 5.5,7.594 0.333,0.25 10 false B 2.125,6.156 2.615,6.354 0.49,0.198 10 false STOP 2.135,7.635 2.625,7.833 0.49,0.198 10 false STOP 3.49,5.74 3.823,5.99 0.333,0.25 10 false 3 1.083,5.74 1.5,5.99 0.417,0.25 10 false 1 1.458,5.969 2.229,6.167 0.771,0.198 10 false S2 3.021,5.958 3.792,6.156 0.771,0.198 10 false S2 3.458,5.958 4.229,6.156 0.771,0.198 10 false S8 1.469,6.188 1.885,6.438 0.417,0.25 10 false *1 3.052,6.188 3.469,6.438 0.417,0.25 10 false *1 3.479,6.188 3.896,6.438 0.417,0.25 10 false *2 1.042,6.188 1.458,6.438 0.417,0.25 10 false *2 1.49,7.25 1.74,7.5 0.25,0.25 10 false 1 3.51,7.24 3.76,7.49 0.25,0.25 10 false 3 1.458,7.458 2.229,7.656 0.771,0.198 10 false S5 3.031,7.448 3.802,7.646 0.771,0.198 10 false S5 3.417,7.448 4.188,7.646 0.771,0.198 10 false S10 3.469,7.698 3.885,7.948 0.417,0.25 10 false *2 3.042,7.698 3.458,7.948 0.417,0.25 10 false *1 1.458,7.688 1.875,7.938 0.417,0.25 10 false *1 1.031,7.677 1.448,7.927 0.417,0.25 10 false *2 0.49,8.469 2.667,8.865 2.177,0.396 10 false *1: for LED Headlight 2.219,8.469 4.396,8.865 2.177,0.396 10 false *2: for Halogen Headlight

CAUTION / NOTICE / HINT

NOTICE:: Inspect the fuses for circuits related to this system before performing the following procedure.

HINT:: When DTC C117B62, P057112 and/or P057113 are output together with DTC C13807E, inspect and repair the trouble areas indicated by DTC C117B62, P057112 and/or P057113 first.; C117B62: Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HEV Model)>C117B62202307,999999,_54,_112606,_0608077,RM100000002C7BL_04,C117B62; P057112: Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HEV Model)>P057112202307,999999,_54,_112606,_0608077,RM100000002C7CF_04,P057112; P057113: Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>ELECTRONICALLY CONTROLLED BRAKE SYSTEM (for HEV Model)>P057113202307,999999,_54,_112606,_0608077,RM100000002C7CG,P057113

PROCEDURE

1.CHECK STOP LIGHT ILLUMINATION STATUS

With the brake pedal released, check the illumination status of the stop lights.

Result:

Result	Proceed to
The stop lights are illuminated.	A
The stop lights are not illuminated.	B

2.CHECK HARNESS AND CONNECTOR (STOP LIGHT CONTROL RELAY CIRCUIT)

7.CHECK STOP LIGHT OPERATION

2.CHECK HARNESS AND CONNECTOR (STOP LIGHT CONTROL RELAY CIRCUIT)

0.448,0.448 0.781,0.698 0.333,0.25 2.438,1.771 1.74,1.021 true 0.188,0.177 0.5,0.333 0.313,0.156 10 false *a 0.479,0.479 0.938,0.677 0.458,0.198 10 false A53 2.49,1.698 2.948,1.896 0.458,0.198 10 false ACC

*a	Component with harness connected (Stop Light Switch Assembly)

Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:: The connector is securely connected.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
A53-4 (ACC) - Body ground	Always	11 to 14 V

Result:

Proceed to
OK
NG

3.CHECK STOP LIGHT ILLUMINATION STATUS

5.CHECK HARNESS AND CONNECTOR (STOP LIGHT CONTROL RELAY CIRCUIT)

3.CHECK STOP LIGHT ILLUMINATION STATUS

Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:: The connector is securely connected.

Disconnect the A53 stop light switch assembly connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Check the illumination status of the stop lights.

Result:

Result	Proceed to
The stop lights are illuminated.	A
The stop lights are not illuminated.	B

4.CHECK STOP LIGHT ILLUMINATION STATUS

REPLACE STOP LIGHT SWITCH ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>REMOVAL202201,999999,_59,_112294,_0501115,RM100000001Z4Y5,

4.CHECK STOP LIGHT ILLUMINATION STATUS

Make sure that there is no looseness at the locking part and the connecting part of the connector.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Disconnect the A53 stop light switch assembly connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Check the illumination status of the stop lights.

Result:

Result	Proceed to
The stop lights are illuminated.	A
The stop lights are not illuminated.	B

REPAIR OR REPLACE HARNESS OR CONNECTOR (STOP LIGHT CIRCUIT)

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HEV Model)>REMOVAL202307,999999,_54,_112606,_0604462,RM100000002BUEM,

5.CHECK HARNESS AND CONNECTOR (STOP LIGHT CONTROL RELAY CIRCUIT)

*a	Component with harness connected (Stop Light Switch Assembly)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
A53-4 (ACC) - Body ground	Always	11 to 14 V

Result:

Proceed to
OK
NG

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HEV Model)>REMOVAL202307,999999,_54,_112606,_0604462,RM100000002BUEM,

6.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - BRAKE ACTUATOR ASSEMBLY)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A53 stop right switch assembly connector.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A53-4 (ACC) or A151-27 (STPO) - Body ground and other terminals	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE STOP LIGHT SWITCH ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>REMOVAL202201,999999,_59,_112294,_0501115,RM100000001Z4Y5,

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.CHECK STOP LIGHT OPERATION

Check that the stop lights come on when the brake pedal is depressed.

OK:: The stop lights illuminate.

Result:

Proceed to
OK
NG

8.CHECK HARNESS AND CONNECTOR (STOP LIGHT SIGNAL INPUT CIRCUIT)

9.CHECK STOP LIGHT OPERATION

8.CHECK HARNESS AND CONNECTOR (STOP LIGHT SIGNAL INPUT CIRCUIT)

1.5,0.115 1.938,0.406 0.438,0.292 2.708,0.385 2.313,0.927 true 1.563,0.167 2.177,0.365 0.615,0.198 10 false A151 2.75,0.271 3.167,0.469 0.417,0.198 10 false STP2 0.188,0.125 0.5,0.323 0.313,0.198 10 false *a

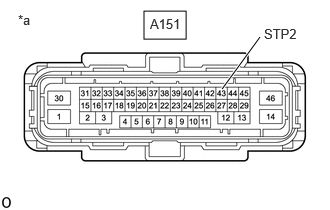

*a	Front view of wire harness connector (to skid control ECU (Brake Actuator Assembly))

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
A151-43 (STP2) - Body ground	Brake pedal depressed	11 to 14 V

Result:

Proceed to
OK
NG

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HEV Model)>REMOVAL202307,999999,_54,_112606,_0604462,RM100000002BUEM,

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.CHECK STOP LIGHT OPERATION

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Check that the stop lights come on when the brake pedal is depressed.

OK:: The stop lights illuminate.

Result:

Proceed to
OK
NG

REPLACE BRAKE ACTUATOR ASSEMBLY

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>BRAKE ACTUATOR (for HEV Model)>REMOVAL202307,999999,_54,_112606,_0604462,RM100000002BUEM,

10.CHECK VEHICLE TYPE

Check the vehicle specification.

Result:

Result	Proceed to
for LED Headlight	A
for Halogen Headlight	B

11.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY LH)

15.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY LH)

11.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY LH)

0.406,0.99 0.844,1.271 0.438,0.281 2.396,1.781 1.927,1.24 true 0.188,0.177 0.5,0.333 0.313,0.156 10 false *a 0.531,1.042 0.99,1.24 0.458,0.198 10 false S2 2.427,1.719 2.594,1.938 0.167,0.219 10 false B

*a	Front view of wire harness connector (to Rear Combination Light Assembly LH)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Disconnect the S2 rear combination light assembly LH connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
S2-3 (B) - Body ground	Brake pedal depressed	11 to 14 V

Result:

Proceed to
OK
NG

GO TO LIGHTING SYSTEM (REAR COMBINATION LIGHT ASSEMBLY LH (STOP LIGHT CIRCUIT))

Refer to "Left or right stop light does not illuminate" of problem symptoms table.

Click hereVehicle Exterior>LIGHTING (EXT)>LIGHTING SYSTEM>PROBLEM SYMPTOMS TABLE202307,999999,_59,_112294,_0510962,RM100000002CDM7,

12.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY RH)

0.323,0.969 0.76,1.25 0.438,0.281 2.5,1.75 1.927,1.24 true 0.188,0.177 0.5,0.333 0.313,0.156 10 false *a 0.479,1.021 0.938,1.219 0.458,0.198 10 false S5 2.552,1.688 3.01,1.885 0.458,0.198 10 false B

*a	Front view of wire harness connector (to Rear Combination Light Assembly RH)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Disconnect the S2 rear combination light assembly LH connector.

Disconnect the S5 rear combination light assembly RH connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
S5-3 (B) - Body ground	Brake pedal depressed	11 to 14 V

Result:

Proceed to
OK
NG

GO TO LIGHTING SYSTEM (REAR COMBINATION LIGHT ASSEMBLY RH (STOP LIGHT CIRCUIT))

Refer to "Left or right stop light does not illuminate" of problem symptoms table.

Click hereVehicle Exterior>LIGHTING (EXT)>LIGHTING SYSTEM>PROBLEM SYMPTOMS TABLE202307,999999,_59,_112294,_0510962,RM100000002CDM7,

13.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - CENTER STOP LIGHT SET)

0.49,0.917 0.979,1.167 0.49,0.25 1.26,1.667 1.615,1.167 true 0.146,0.104 0.458,0.26 0.313,0.156 10 false *a 0.604,0.958 1.063,1.156 0.458,0.198 10 false U46 1.125,1.625 1.396,1.844 0.271,0.219 10 false B

*a	Front view of wire harness connector (to Center Stop Light Set)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Disconnect the S2 rear combination light assembly LH connector.

Disconnect the S5 rear combination light assembly RH connector.

Disconnect the U46 center stop light set connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
U46-1 (B) - Body ground	Brake pedal depressed	11 to 14 V

Result:

Proceed to
OK
NG

REPLACE CENTER STOP LIGHT SET

Click hereVehicle Exterior>LIGHTING (EXT)>HIGH MOUNTED STOP LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501110,RM100000001Z4XQ,

14.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY LH)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Disconnect the S2 rear combination light assembly LH connector.

Disconnect the S5 rear combination light assembly RH connector.

Disconnect the U46 center stop light set connector.

Disconnect the A53 stop light switch assembly connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A53-1 (OUT) - S2-3 (B)	Always	Below 1 Ω
A53-1 (OUT) or S2-3 (B) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE STOP LIGHT SWITCH ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>REMOVAL202201,999999,_59,_112294,_0501115,RM100000001Z4Y5,

REPAIR OR REPLACE HARNESS OR CONNECTOR

15.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY LH)

0.406,0.99 0.844,1.271 0.438,0.281 2.438,1.802 1.896,1.24 true 0.188,0.177 0.5,0.333 0.313,0.156 10 false *a 0.531,1.031 0.99,1.229 0.458,0.198 10 false S8 2.51,1.74 2.677,1.958 0.167,0.219 10 false B

*a	Front view of wire harness connector (to Rear Combination Light Assembly LH)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Disconnect the S8 rear combination light assembly LH connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
S8-3 (B) - Body ground	Brake pedal depressed	11 to 14 V

Result:

Proceed to
OK
NG

GO TO LIGHTING SYSTEM (REAR COMBINATION LIGHT ASSEMBLY LH (STOP LIGHT CIRCUIT))

Refer to "Left or right stop light does not illuminate" of problem symptoms table.

Click hereVehicle Exterior>LIGHTING (EXT)>LIGHTING SYSTEM>PROBLEM SYMPTOMS TABLE202307,999999,_59,_112294,_0510962,RM100000002CDM7,

16.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY RH)

0.323,0.969 0.76,1.25 0.438,0.281 2.448,1.76 1.906,1.25 true 0.188,0.177 0.5,0.333 0.313,0.156 10 false *a 0.427,1.01 0.885,1.208 0.458,0.198 10 false S10 2.521,1.677 2.979,1.875 0.458,0.198 10 false B

*a	Front view of wire harness connector (to Rear Combination Light Assembly RH)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Disconnect the S8 rear combination light assembly LH connector.

Disconnect the S10 rear combination light assembly RH connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
S10-3 (B) - Body ground	Brake pedal depressed	11 to 14 V

Result:

Proceed to
OK
NG

GO TO LIGHTING SYSTEM (REAR COMBINATION LIGHT ASSEMBLY RH (STOP LIGHT CIRCUIT))

Refer to "Left or right stop light does not illuminate" of problem symptoms table.

Click hereVehicle Exterior>LIGHTING (EXT)>LIGHTING SYSTEM>PROBLEM SYMPTOMS TABLE202307,999999,_59,_112294,_0510962,RM100000002CDM7,

17.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - CENTER STOP LIGHT SET)

*a	Front view of wire harness connector (to Center Stop Light Set)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Disconnect the S8 rear combination light assembly LH connector.

Disconnect the S10 rear combination light assembly RH connector.

Disconnect the U46 center stop light set connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
U46-1 (B) - Body ground	Brake pedal depressed	11 to 14 V

Result:

Proceed to
OK
NG

REPLACE CENTER STOP LIGHT SET

Click hereVehicle Exterior>LIGHTING (EXT)>HIGH MOUNTED STOP LIGHT ASSEMBLY>REMOVAL202201,999999,_59,_112294,_0501110,RM100000001Z4XQ,

18.CHECK HARNESS AND CONNECTOR (STOP LIGHT SWITCH ASSEMBLY - REAR COMBINATION LIGHT ASSEMBLY LH)

Make sure that there is no looseness at the locking part and the connecting part of the connectors.

OK:: The connector is securely connected.

Disconnect the A151 skid control ECU (brake actuator assembly) connector.

Disconnect the S8 rear combination light assembly LH connector.

Disconnect the S10 rear combination light assembly RH connector.

Disconnect the U46 center stop light set connector.

Disconnect the A53 stop light switch assembly connector.

Check both the connector case and the terminals for deformation and corrosion.

OK:: No deformation or corrosion.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
A53-1 (OUT) - S8-3 (B)	Always	Below 1 Ω
A53-1 (OUT) or S8-3 (B) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

REPLACE STOP LIGHT SWITCH ASSEMBLY

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>REMOVAL202201,999999,_59,_112294,_0501115,RM100000001Z4Y5,

REPAIR OR REPLACE HARNESS OR CONNECTOR
