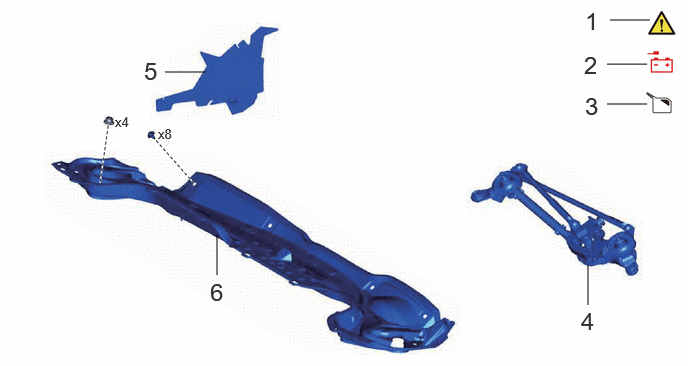

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | PRECAUTION | - | ( 202307,999999,_54,_112606,_0604462,RM100000002BUEM_01_0079,)
|
- | - |
| 2 | DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL | - | - | - | - |
| 3 | DRAIN BRAKE FLUID | - | - | ( 202307,999999,_54,_112606,_0604462,RM100000002BUEM_01_0077,)
|
- |
| 4 | WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY | - | - | - | - |
| 5 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | 55737B | - | - | - |
| 6 | OUTER COWL TOP PANEL SUB-ASSEMBLY | 55701J | - | - | - |

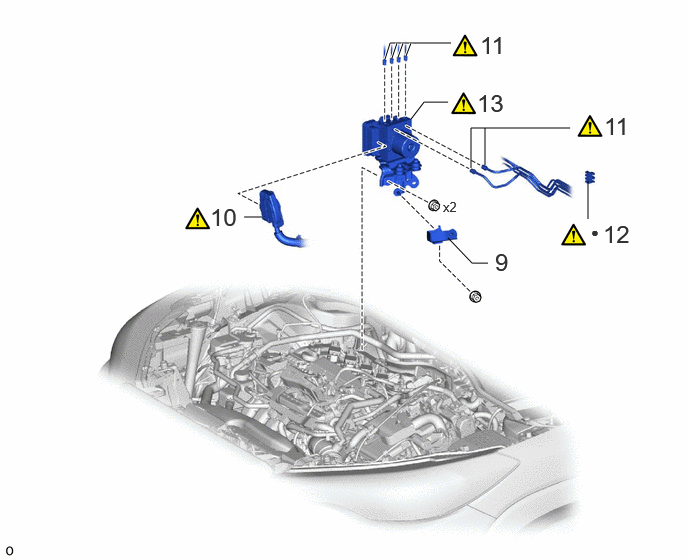

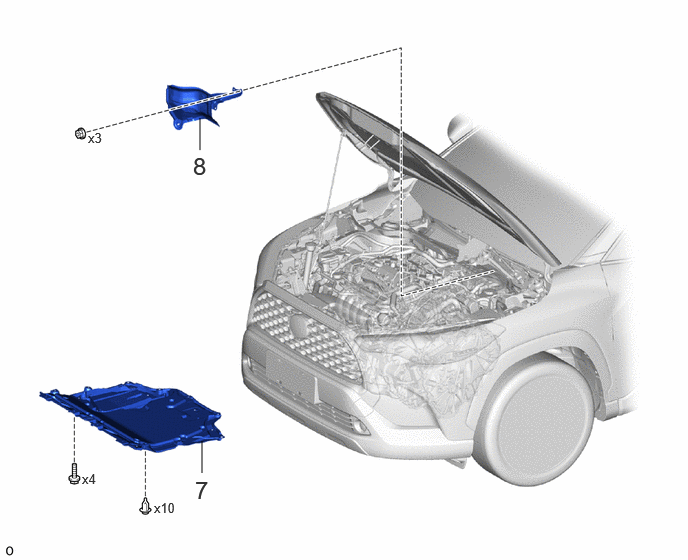

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 7 | NO. 1 ENGINE UNDER COVER ASSEMBLY | 51410 | - | - | - |
| 8 | DASH PANEL HEAT INSULATOR | - | - | - | - |
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 9 | NO. 5 DASH PANEL INSULATOR PLATE | 55228 | - | - | - |
| 10 | ENGINE ROOM MAIN WIRE | - | ( 202307,999999,_54,_112606,_0604462,RM100000002BUEM_01_0090,)
|
- | - |
| 11 | DISCONNECT BRAKE LINE | - | ( 202307,999999,_54,_112606,_0604462,RM100000002BUEM_01_0085,)
|
- | - |
| 12 | NO. 1 BRAKE TUBE CLAMP | 47371A | ( 202307,999999,_54,_112606,_0604462,RM100000002BUEM_01_0089,)
|
- | - |
| 13 | BRAKE ACTUATOR WITH BRACKET | - | ( 202307,999999,_54,_112606,_0604462,RM100000002BUEM_01_0073,)
|
- | - |
| ● | Non-reusable part | - | - |

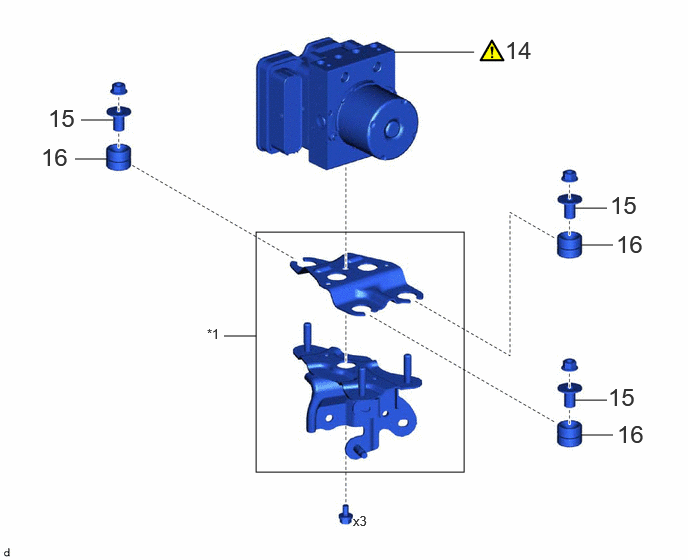

| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 14 | BRAKE ACTUATOR ASSEMBLY | 44510 | ( 202307,999999,_54,_112606,_0604462,RM100000002BUEM_01_0072,)
|
- | - |
| 15 | NO. 1 BRAKE ACTUATOR CASE COLLAR | 44521A | - | - | - |
| 16 | BRAKE ACTUATOR BRACKET CUSHION | 44547B | - | - | - |
| *1 | BRAKE ACTUATOR BRACKET ASSEMBLY | - | - |
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during brake actuator assembly removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation. |
|||
| Skid control ECU (brake actuator assembly) | Update ECU security key (Only necessary after replacement) | Vehicle Control History (RoB) are stored | ( 202201,202405,_V1,_106911,_0485801,RM100000001XG8S,202405,999999,_V1,_106911,_0485801,RM100000002NHZW,)
|
1.
Bleed air*1 2.
Perform "Reset Memory" 3.
Perform "Calibration" |
·
DTCs are stored ·
ABS warning light illuminates ·
Brake system warning light (yellow indicator) illuminates ·
Slip indicator light illuminates ·
Electronically controlled brake system disabled or malfunctions |
( 202307,999999,_54,_113942,_0604471,RM100000002BUFW,)
( 202307,999999,_54,_112606,_0608077,RM100000002C79U,)
|
|
| Operate the electric parking brake switch (electric parking brake switch assembly) | Parking brake indicator light (red) blinks when the ignition switch is first turned ON | ( 202307,999999,_54,_112607,_0608079,RM100000002C7FS,)
|
|
When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Learning completes when vehicle is driven
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Front camera system | Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. | ( 202307,999999,_95,_112293,_0586709,RM100000002BSVY,)
|
Learning completes when vehicle is operated normally
| Effect/Inoperative Function When Necessary Procedures are not Performed | Necessary Procedures | Link |
|---|---|---|
| Power door lock control system
·
Back door opener |
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | ( 202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
|
| Power back door system | Fully close the back door by hand.
|
( 202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
|
| Air conditioning system | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |
1. PRECAUTION
|
|
2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
3.DRAIN BRAKE FLUID
|
|
4.REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
55737B
5.REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL
55701J
6.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY
51410

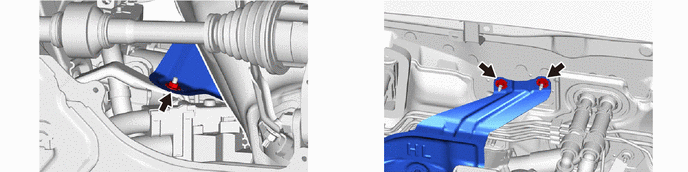

7.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
8.REMOVE DASH PANEL HEAT INSULATOR
55228
9.REMOVE NO. 5 DASH PANEL INSULATOR PLATE

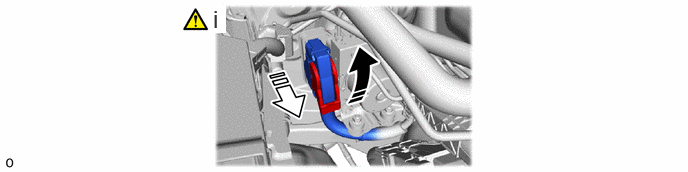

10.DISCONNECT ENGINE ROOM MAIN WIRE
|
Release the lock lever |
|
Disconnect the connector |
Release the lock lever and disconnect the connector from the brake actuator assembly.
Be careful not to allow any brake fluid to enter the connector.

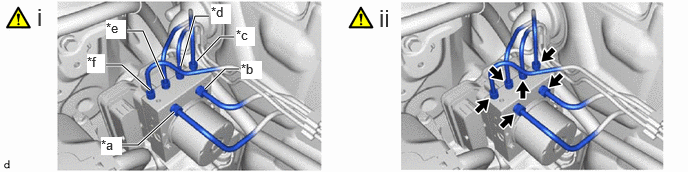

11.DISCONNECT BRAKE LINE
| *a | From 1st Chamber of Brake Master Cylinder Sub-assembly | *b | From 2nd Chamber of Brake Master Cylinder Sub-assembly |
| *c | To Front Wheel Cylinder Assembly RH | *d | To Rear Wheel Cylinder Assembly LH |
| *e | To Rear Wheel Cylinder Assembly RH | *f | To Front Wheel Cylinder Assembly LH |
Use tags or make a memo to identify the places to reconnect the brake lines.

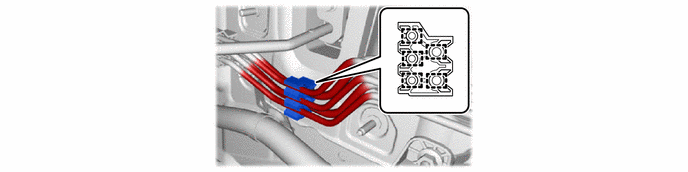

Using a union nut wrench, disconnect the 6 brake lines from the brake actuator assembly.
Do not kink or damage the brake lines.
Do not allow any foreign matter such as dirt or dust to enter the brake lines from the connecting parts.
47371A

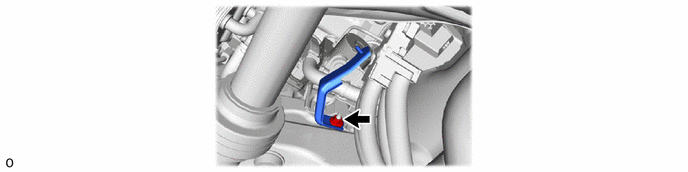

12.REMOVE NO. 1 BRAKE TUBE CLAMP
|
|

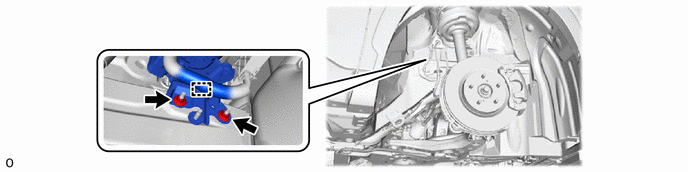

13.REMOVE BRAKE ACTUATOR WITH BRACKET
|
|
44510
14.REMOVE BRAKE ACTUATOR ASSEMBLY
|
|
44521A
15.REMOVE NO. 1 BRAKE ACTUATOR CASE COLLAR
44547B
16.REMOVE BRAKE ACTUATOR BRACKET CUSHION
