LIGHTING (EXT)
_0501115
STOP LIGHT SWITCH
A
LIGHTING (EXT) STOP LIGHT SWITCH REMOVAL
CAUTION / NOTICE / HINT

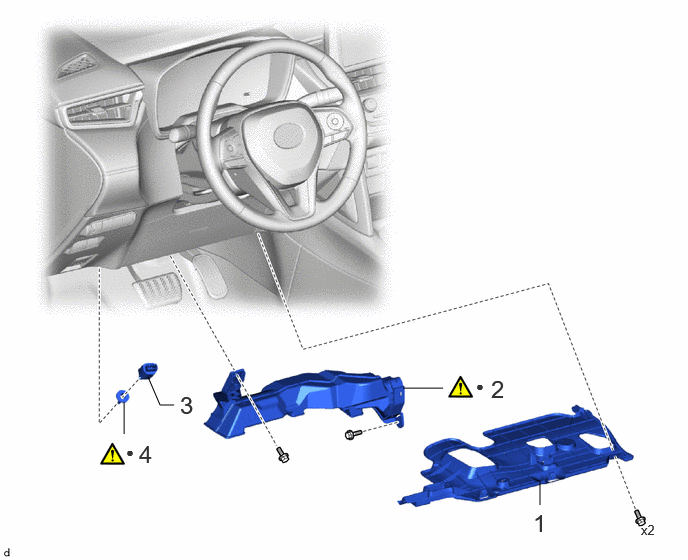

COMPONENTS (REMOVAL)
4.615,4.042 4.198,4.042
false
5.625,5.26 5.625,5.01
false
1.292,4.521 1.292,4.188
false
1.813,4.219 1.667,4.219
1.667,4.219 1.542,3.927
false
6.677,5.438 6.885,5.615
0.208,0.177
10
false
x2
5.552,5.302 5.823,5.667
0.271,0.365
18
false
1
5.115,3.906 5.385,4.271
0.271,0.365
18
false
2
1.313,4.625 1.479,4.833
0.167,0.208
10
false
●
1.448,4.583 1.719,4.948
0.271,0.365
18
false
4
1.875,4.073 2.146,4.438
0.271,0.365
18
false
3
4.958,3.938 5.125,4.146
0.167,0.208
10
false
●
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | 55606 | - | - | - |
| 2 | NO. 1 AIR DUCT | 87211 | ( 202201,999999,_59,_112294,_0501115,RM100000001Z4Y5_01_0065,)
|
- | - |
| 3 | STOP LIGHT SWITCH ASSEMBLY | 84340 | - | - | - |
| 4 | STOP LIGHT SWITCH MOUNTING ADJUSTER | 84345 | (202201,999999,_59,_112294,_0501115,RM100000001Z4Y5_01_0063,)
|
- | - |
| ● | Non-reusable part | - | - |
PROCEDURE
55606
1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
87211
2.REMOVE NO. 1 AIR DUCT
84340
3.REMOVE STOP LIGHT SWITCH ASSEMBLY

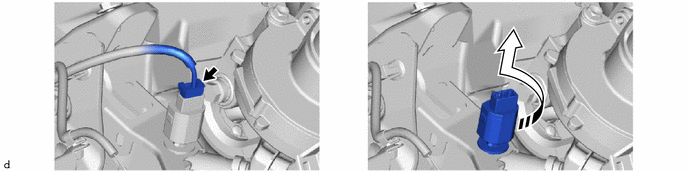

a.
0,0 0,0
false
|
Remove in this Direction | - | - |
84345
4.REMOVE STOP LIGHT SWITCH MOUNTING ADJUSTER
a.
2.021,0.01 2.302,0.365
0.281,0.354
18
false
i
i.

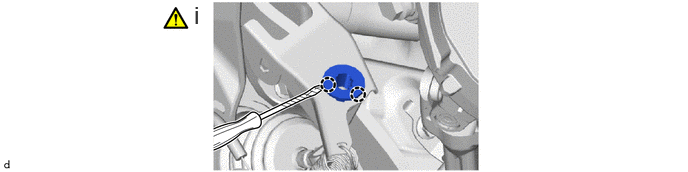

Using a screwdriver with its tip wrapped with protective tape, disengage the claws to remove the stop light switch mounting adjuster.
- NOTICE:
-
The stop light switch mounting adjuster must not be reused.
