RM38T0EC _55 Steering _112306 STEERING COLUMN _0501031 STEERING COLUMN ASSEMBLY A

STEERING COLUMN STEERING COLUMN ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

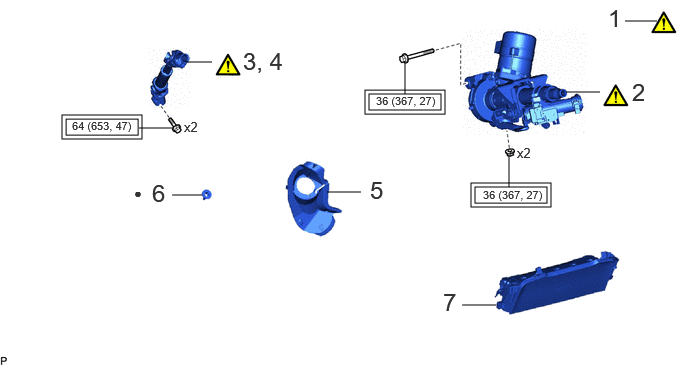

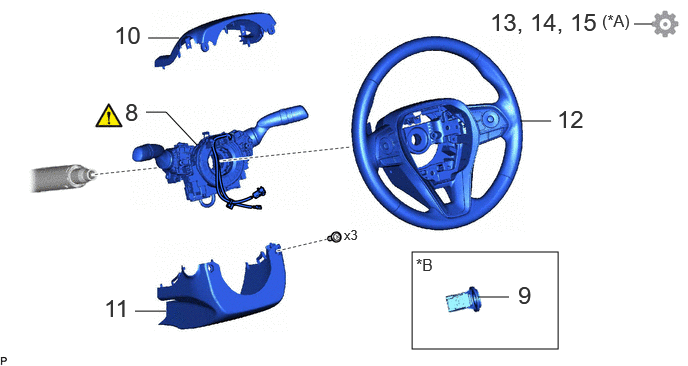

COMPONENTS (INSTALLATION)

3.844,0.979 4.594,1.146 0.75,0.167 3.802,0.938 4.635,1.188 0.833,0.25 4.948,1.948 5.698,2.115 0.75,0.167 4.906,1.906 5.74,2.156 0.833,0.25 0.688,1.24 1.438,1.406 0.75,0.167 0.646,1.198 1.479,1.448 0.833,0.25 6.51,0.219 6.844,0.219 false 4.219,0.656 4.219,0.979 false 5.896,0.958 6.25,0.958 false 5.302,1.948 5.302,1.615 false 4.813,3.177 5.167,3.177 false 3.406,2 3.76,2 false 1.938,0.646 2.208,0.646 false 1.448,1.333 1.802,1.333 false 1.792,2.031 2.104,2.031 false 6.333,0.042 6.615,0.396 0.281,0.354 18 false 1 6.583,0.813 6.865,1.167 0.281,0.354 18 false 2 1.583,1.865 1.865,2.219 0.281,0.354 18 false 6 2.531,0.49 3.167,0.844 0.635,0.354 18 false 3, 4 3.854,1.833 4.135,2.188 0.281,0.354 18 false 5 5.385,1.51 5.698,1.708 0.313,0.198 10 false x2 1.917,1.24 2.229,1.438 0.313,0.198 10 false x2 3.917,0.979 4.99,1.177 1.073,0.198 8 false 36 (367, 27) 5.031,1.958 6.5,2.115 1.469,0.156 8 false 36 (367, 27) 0.75,1.24 1.635,1.479 0.885,0.24 8 false 64 (653, 47) 4.615,3 4.896,3.354 0.281,0.354 18 false 7 1.396,1.927 1.552,2.125 0.156,0.198 10 false ●

Procedure		Part Name Code
1	ALIGN FRONT WHEELS FACING STRAIGHT AHEAD	-	(202307,999999,_55,_112306,_0501031,RM100000002C3MS_01_0156,)	-	-
2	STEERING COLUMN ASSEMBLY	-	(202307,999999,_55,_112306,_0501031,RM100000002C3MS_01_0015,)	-	-
3	INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY	45260	(202307,999999,_55,_112306,_0501031,RM100000002C3MS_01_0136,)	-	-
4	CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY	45260	(202307,999999,_55,_112306,_0501031,RM100000002C3MS_01_0137,)	-	-
5	COLUMN HOLE COVER SILENCER SHEET	45259A	-	-	-
6	STOP LIGHT SWITCH MOUNTING ADJUSTER	84345	-	-	-
7	LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY	73900	-	-	-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

4.292,2.625 5.813,3.635 1.521,1.01 1.521,1.167 1.729,1.167 1.729,1.167 2.052,1.51 false 4.979,3.094 5.302,3.094 false 1.542,0.396 1.865,0.396 false 1.406,3.24 1.729,3.24 false 5.417,1.26 5.74,1.26 false 6.604,0.25 6.792,0.25 false 1.302,1.021 1.583,1.375 0.281,0.354 18 false 8 5.396,2.927 5.677,3.281 0.281,0.354 18 false 9 1.188,0.219 1.698,0.604 0.51,0.385 18 false 10 1.083,3.063 1.594,3.448 0.51,0.385 18 false 11 3.583,2.365 3.896,2.563 0.313,0.198 10 false x3 5.802,1.094 6.229,1.406 0.427,0.313 18 false 12 5.104,0.083 6.896,0.688 1.792,0.604 18 false 13, 14, 15 4.333,2.656 4.708,2.896 0.375,0.24 12 false *B 6.271,0.115 7.01,0.354 0.74,0.24 12 false (*A)

Procedure		Part Name Code
8	TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY	-	(202307,999999,_55,_112306,_0501031,RM100000002C3MS_01_0022,)	-	-
9	TRANSPONDER KEY COIL	89782	-	-	-
10	UPPER STEERING COLUMN COVER	45286B	-	-	-
11	LOWER STEERING COLUMN COVER	45287	-	-	-
12	STEERING WHEEL ASSEMBLY	45100	-	-	-
13	PERFORM POWER STEERING ECU INITIAL SETTING (TORQUE SENSOR ZERO POINT CALIBRATION AND ASSIST MAP WRITING)	-	-	-	(202307,999999,_55,_112306,_0501031,RM100000002C3MS_01_0216,)
14	PERFORM END POSITION INITIAL SETTING	-	-	-	(202307,999999,_55,_112306,_0501031,RM100000002C3MS_01_0229,)
15	PERFORM CALIBRATION	-	-	-	(202307,999999,_55,_112306,_0501031,RM100000002C3MS_01_0228,)

*A	w/ Parking Assist Monitor System	*B	w/o Smart Entry and Start System
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

PROCEDURE

Hide Display 1.ALIGN FRONT WHEELS FACING STRAIGHT AHEAD

Click here(

202307,999999,_55,_112968,_0503003,RM100000002C3MP_01_0123,)

Hide Display 2.INSTALL STEERING COLUMN ASSEMBLY

NOTICE:: ·

Make sure that the wire harness is not interfering with the steering column assembly.

·

After the column is installed, check the tilt operation.

·

If a large amount of force is required to operate the tilt mechanism or abnormal noise occurs, loosen the nuts and move the bracket forward or backward until the tilt operation works smoothly.

Tighten the nuts and check the tilt operation again.

Torque:: 36 N*m (367 kgf*cm, 27 ft.*lbf)

Hide Display 45260 3.INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

3.594,0.823 4.604,0.781 4.604,0.781 3.604,0.781 true 4.615,0.698 4.813,0.896 0.198,0.198 10 true *a 5.302,0.635 5.521,0.927 0.219,0.292 18 true i 2.854,0.75 3.073,1.042 0.219,0.292 18 true ii

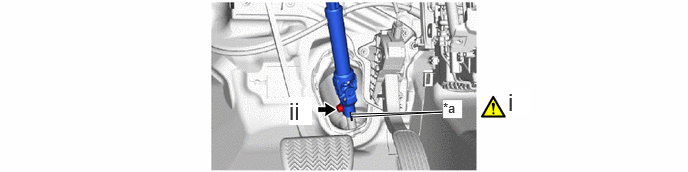

Matchmark

Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly.

ii.

Connect the No. 2 steering intermediate shaft assembly to the steering column assembly with the bolt.

Torque:: 64 N*m (653 kgf*cm, 47 ft.*lbf)

Hide Display 45260 4.CONNECT NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

3.656,1.188 4.604,1.167 4.604,1.167 3.677,1.219 true 4.615,1.042 4.813,1.229 0.198,0.188 10 true *a 5.292,0.917 5.531,1.208 0.24,0.292 18 true i 3.01,1.01 3.25,1.302 0.24,0.292 18 true ii

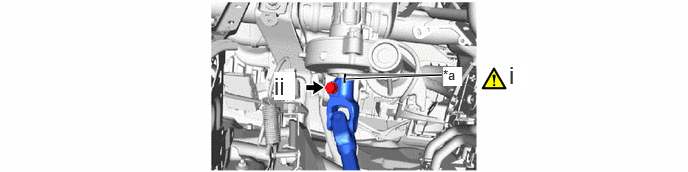

Matchmark

Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering gear assembly.

ii.

Connect the No. 2 steering intermediate shaft assembly to the steering gear assembly with the bolt.

Torque:: 64 N*m (653 kgf*cm, 47 ft.*lbf)

Hide Display 45259A 5.INSTALL COLUMN HOLE COVER SILENCER SHEET

Hide Display 84345 6.INSTALL STOP LIGHT SWITCH MOUNTING ADJUSTER

Click hereVehicle Exterior>LIGHTING (EXT)>STOP LIGHT SWITCH>INSTALLATION202201,999999,_59,_112294,_0501115,RM100000001Z4Y7,

Hide Display 73900 7.INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>KNEE AIRBAG ASSEMBLY>INSTALLATION202307,999999,_58,_115188,_0510625,RM100000002BZWH,

Hide Display 8.INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

NOTICE:: ·

Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the ignition switch ON.

·

Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the ignition switch ON.

·

Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.

0.417,0.052 2.073,0.406 1.656,0.354 18 false i, iii 2.979,0.427 3.531,0.781 0.552,0.354 18 false ii 4.115,0.042 4.667,0.396 0.552,0.354 18 false iv

Install in this Direction

Using pliers, expand the clamp.

ii.

While holding the clamp expanded, install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly and engage the claw.

iii.

Return the clamp to its original position.

iv.

Connect each connector.

HINT:: As the illustration shown is an example, the actual details may differ.

Hide Display 89782 9.INSTALL TRANSPONDER KEY COIL (w/o Smart Entry and Start System)

Hide Display 45286B 10.INSTALL UPPER STEERING COLUMN COVER

Hide Display 45287 11.INSTALL LOWER STEERING COLUMN COVER

Hide Display 45100 12.INSTALL STEERING WHEEL ASSEMBLY

Click hereSteering>STEERING COLUMN>STEERING WHEEL>INSTALLATION202201,999999,_55,_112306,_0501032,RM100000001Z4RO,

Hide Display 13.PERFORM POWER STEERING ECU INITIAL SETTING (TORQUE SENSOR ZERO POINT CALIBRATION AND ASSIST MAP WRITING)

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING SYSTEM>CALIBRATION202201,999999,_55,_112287,_0510880,RM1000000020BL6,

Hide Display 14.PERFORM END POSITION INITIAL SETTING

Click hereSteering>POWER ASSIST SYSTEMS>POWER STEERING ECU>END POSITION INITIAL SETTING202307,999999,_55,_112287,_0500993,RM100000002C2X3,

Hide Display 15.PERFORM CALIBRATION

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PANORAMIC VIEW MONITOR SYSTEM (Production Date from 2023/04)>CALIBRATION202201,999999,_56,_111969,_0587004,RM1000000029RN8,
