RM38T0EC _55 Steering _112306 STEERING COLUMN _0501032 STEERING WHEEL A

STEERING COLUMN  STEERING WHEEL  INSTALLATION


CAUTION / NOTICE / HINT

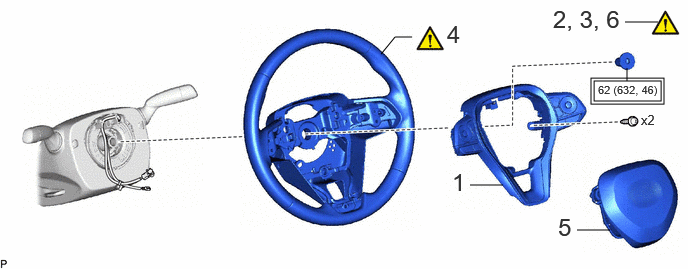

COMPONENTS (INSTALLATION)
C463485N02
6.188,0.844 6.885,1.052 0.698,0.208 6.156,0.813 6.917,1.083 0.76,0.271 6.531,0.844 6.531,0.708 false 6.51,0.229 6.854,0.229 false 6.01,2.396 6.354,2.396 false 4.896,1.927 5.24,1.927 false 3.969,0.563 4.115,0.385 4.115,0.385 4.292,0.385 false 6.677,1.167 6.99,1.365 0.313,0.198 10 false x2 6.229,0.865 7.021,1.125 0.792,0.26 8 false 62 (632, 46) 5.76,0.052 6.542,0.438 0.781,0.385 18 false 2, 3, 6 5.813,2.219 6.094,2.573 0.281,0.354 18 false 5 4.708,1.75 4.99,2.104 0.281,0.354 18 false 1 4.656,0.208 4.938,0.563 0.281,0.354 18 false 4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 STEERING PAD SWITCH ASSEMBLY 84250A - - -
2 ALIGN FRONT WHEELS FACING STRAIGHT AHEAD - (Click here) - -
3 ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY - (Click here) - -
4 STEERING WHEEL ASSEMBLY 45100 (Click here) - -
5 HORN BUTTON ASSEMBLY 45130 - - -
6 STEERING WHEEL CENTER POINT - (Click here) - -

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -

CAUTION / NOTICE / HINT

NOTICE:
·

Do not remove/install the spiral cable with sensor sub-assembly with the auxiliary battery connected and the ignition switch ON.

·

Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed, with the auxiliary battery connected and the ignition switch ON.

·

Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.



PROCEDURE

Hide 84250A 1.INSTALL STEERING PAD SWITCH ASSEMBLY

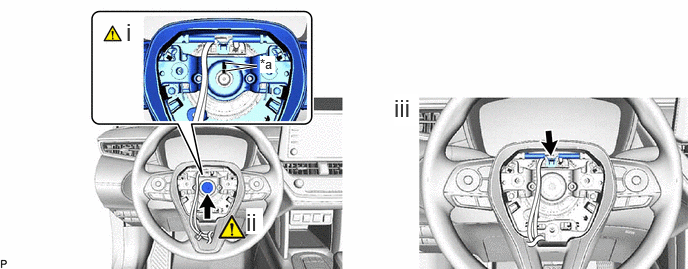

Hide 45100 4.INSTALL STEERING WHEEL ASSEMBLY

a.
C469398C01
2.344,0.74 2.677,0.688 2.677,0.688 2.344,0.656 true 1.313,0.188 1.594,0.542 0.281,0.354 18 false i 2.563,2.167 2.74,2.438 0.177,0.271 18 true ii 4.104,0.979 4.354,1.313 0.25,0.333 18 true iii 2.708,0.583 2.865,0.76 0.156,0.177 10 true *a
*a Matchmark - -


i.

Align the matchmarks on the steering wheel assembly and steering main shaft to install the steering wheel assembly.


ii.

Using a 10 mm hexagon socket wrench, install the steering wheel assembly set bolt.

Torque:
62 N*m (632 kgf*cm, 46 ft.*lbf)


iii.

Connect the connector to the spiral cable with sensor sub-assembly.
