RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509299 FRONT SEAT INNER BELT ASSEMBLY A

SEAT BELT  FRONT SEAT INNER BELT ASSEMBLY  REMOVAL


CAUTION / NOTICE / HINT

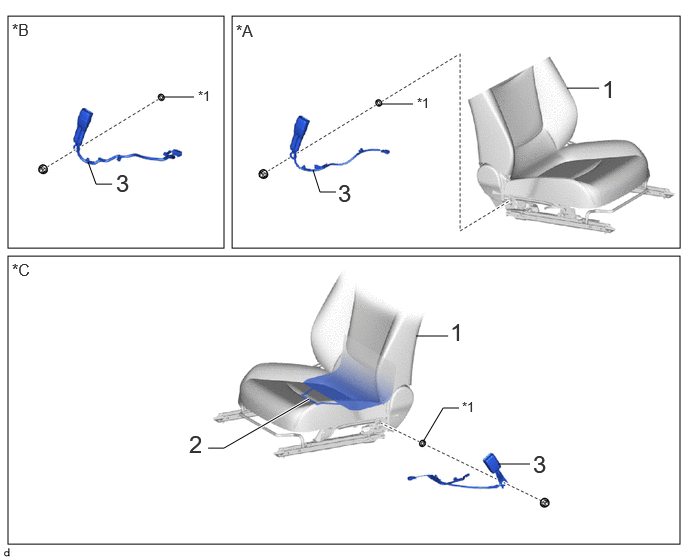

COMPONENTS (REMOVAL)
B631833N01
0.083,2.667 7.083,5.667 7,3 0.083,0.167 2.333,2.583 2.25,2.417 2.417,0.167 7.083,2.583 4.667,2.417 5.906,0.917 6.24,0.917 false 4.333,3.5 4.667,3.5 false 4.417,4.583 4.615,4.25 4.615,4.25 4.781,4.25 false 2.167,4.667 2.333,4.667 2.333,4.667 3.219,4.156 true 3.5,2 3.333,2 3.333,2 3.26,1.771 false 1.167,1.917 1,1.917 1,1.917 0.917,1.688 false 5.188,4.833 5.521,4.833 false 3.969,1.083 4.302,1.083 false 1.688,1.01 2.021,1.01 false 4.688,3.313 4.969,3.667 0.281,0.354 18 false 1 2.458,0.219 2.833,0.458 0.375,0.24 12 false *A 5.552,4.688 5.833,5.042 0.281,0.354 18 false 3 3.521,1.865 3.802,2.219 0.281,0.354 18 false 3 1.208,1.76 1.49,2.115 0.281,0.354 18 false 3 0.125,0.208 0.5,0.448 0.375,0.24 12 false *B 0.125,2.708 0.5,2.948 0.375,0.24 12 false *C 6.271,0.781 6.552,1.135 0.281,0.354 18 false 1 4.813,4.156 5.125,4.354 0.313,0.198 10 false *1 4.344,0.99 4.656,1.188 0.313,0.198 10 false *1 2.063,0.917 2.375,1.115 0.313,0.198 10 false *1 1.969,4.479 2.25,4.833 0.281,0.354 18 false 2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT SEAT ASSEMBLY - - - -
2 SEPARATE TYPE FRONT SEATBACK COVER 71073S - - -
3 FRONT SEAT INNER BELT ASSEMBLY 73230 - - -

*A for Driver Side Manual Seat *B for Driver Side Power Seat
*C for Front Passenger Seat - -
*1 Front Seat Belt Anchor Plate - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the front seat inner belt assembly removal/installation are shown below.

CAUTION:
B585480

Wear protective gloves. Sharp areas on the parts may injure your hands.


NOTICE:

If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover and front seatback pad with cover with the necessary parts in accordance with the extent of the collision damage.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY


HINT:
·

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*1: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more. (Click here)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for the driver side and front passenger side.

·

The procedure listed below is for the driver side.



PROCEDURE

Hide 71073S 2.DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER (for Front Passenger Side)

HINT:

Use the same procedure as for the driver side.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY


Hide 73230 3.REMOVE FRONT SEAT INNER BELT ASSEMBLY

a.

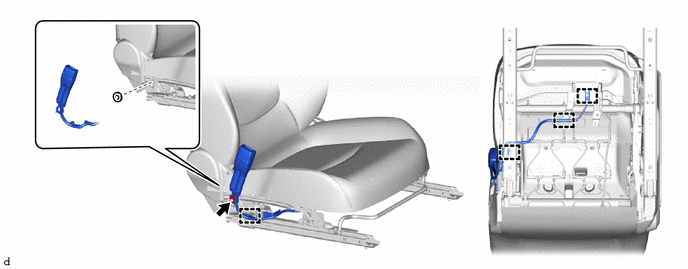

for Driver Side Manual Seat:

B631834


b.

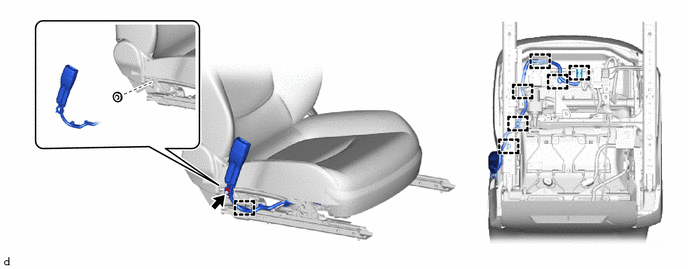

for Driver Side Power Seat:

B631835


c.

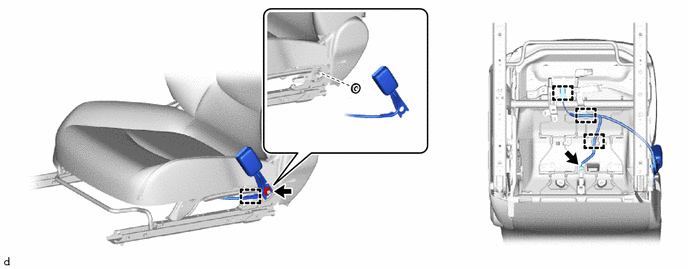

for Front Passenger Side:

B631836
