RM38T0EC _58 Vehicle Interior _114203 SEAT _0509292 FRONT SEAT ASSEMBLY(for Power Seat) A

SEAT  FRONT SEAT ASSEMBLY(for Power Seat)  REMOVAL


CAUTION / NOTICE / HINT

COMPONENTS (REMOVAL)

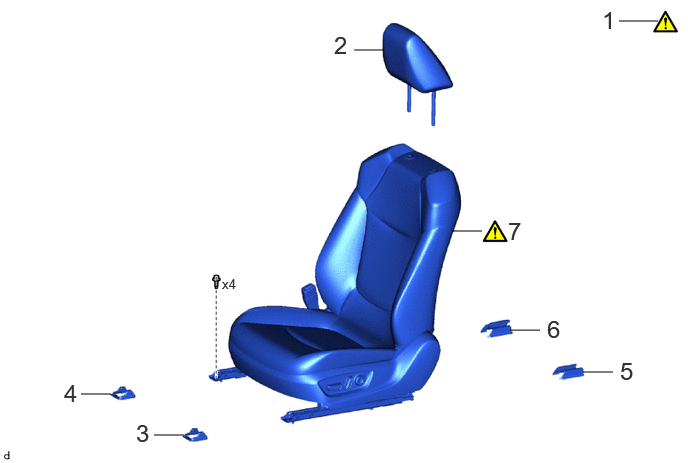

B631795N01
6.448,0.219 6.854,0.219 false 3.688,0.521 4,0.521 false 1.604,4.531 1.917,4.531 false 0.844,4.104 1.156,4.104 false 4.708,2.406 5.021,2.406 false 6.073,3.875 6.385,3.875 false 5.313,3.438 5.625,3.438 false 6.271,0.063 6.552,0.417 0.281,0.354 18 false 1 3.479,0.323 3.76,0.677 0.281,0.354 18 false 2 1.417,4.365 1.698,4.719 0.281,0.354 18 false 3 0.667,3.948 0.948,4.302 0.281,0.354 18 false 4 6.458,3.719 6.74,4.073 0.281,0.354 18 false 5 5.698,3.281 5.979,3.646 0.281,0.365 18 false 6 5.292,2.26 5.573,2.615 0.281,0.354 18 false 7 2.313,2.875 2.625,3.073 0.313,0.198 10 false x4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 FRONT SEAT HEADREST ASSEMBLY 71910A - - -
3 FRONT SEAT TRACK BRACKET OUTER COVER 72124 - - -
4 FRONT SEAT TRACK BRACKET INNER COVER 72128A - - -
5 SEAT TRACK OUTER COVER 72138 - - -
6 SEAT TRACK BRACKET INNER COVER 72158 - - -
7 FRONT SEAT ASSEMBLY - (Click here) - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front seat assembly removal/installation are shown below.

CAUTION:
B585480

Wear protective gloves. Sharp areas on the parts may injure your hands.


NOTICE:

If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover and front seatback pad with cover with the necessary parts in accordance with the extent of the collision damage.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY


HINT:
·

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front camera system Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more. (Click here)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for the driver side and front passenger side.

·

The procedure listed below is for the driver side.



PROCEDURE

Hide 1. PRECAUTION

Z101186

CAUTION:

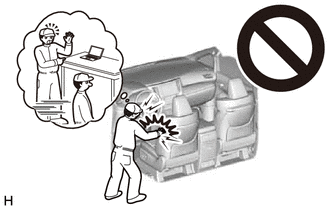

B401522

Be sure to read Precaution thoroughly before servicing.

(Click here)


NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

(Click here)



Hide 7.REMOVE FRONT SEAT ASSEMBLY

a.
B631796N01
0.365,0.042 0.646,0.396 0.281,0.354 18 false i 5.031,1.354 5.229,1.667 0.198,0.313 18 true ii 4.479,1.01 4.677,1.323 0.198,0.313 18 true iii 6.563,1.479 6.76,1.792 0.198,0.313 18 true iii 2.948,2.875 3.177,3.146 0.229,0.271 18 true iv 1.344,3.531 1.542,3.813 0.198,0.281 18 true v 1.135,2.74 1.385,3.021 0.25,0.281 18 true vi 3.927,2.042 4.281,2.344 0.354,0.302 18 false vii 0.229,4.073 0.688,4.406 0.458,0.333 18 false viii 3.917,4.083 4.25,4.406 0.333,0.323 18 false ix

i.

Using a T50 "TORX" socket wrench, remove the 2 bolts on the rear side of the front seat assembly.


ii.

Operate the slide and vertical power seat switch knob to move the front seat assembly to the rearmost position.


iii.

Using a T50 "TORX" socket wrench, remove the 2 bolts on the front side of the front seat assembly.


iv.

Operate the reclining power seat switch knob to move the seatback to the upright position.


v.

Operate the slide and vertical power seat switch knob to move the front seat assembly to the center position.


vi.

Operate the slide and vertical power seat switch knob to move the front seat assembly to the uppermost position.


vii.

Disconnect the cable from the negative (-) auxiliary battery terminal.

·

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL

·

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL


CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.



viii.

Disconnect the 2 connectors and disengage the clamps under the front seat assembly.


ix.

Disconnect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR




b.

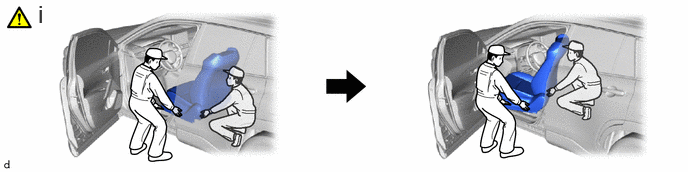

B582445N01
0.396,0 0.677,0.354 0.281,0.354 18 false i

i.

Remove the front seat assembly.

NOTICE:
·

2 or more people are required when carrying the front seat assembly out of the vehicle.

·

Protect the front seat leg.

·

Be careful not to damage the front seat assembly, body exterior or body interior.
