RM38T0EC _58 Vehicle Interior _114203 SEAT _0509291 FRONT SEAT ASSEMBLY(for Manual Seat) A

SEAT FRONT SEAT ASSEMBLY(for Manual Seat) DISASSEMBLY

CAUTION / NOTICE / HINT

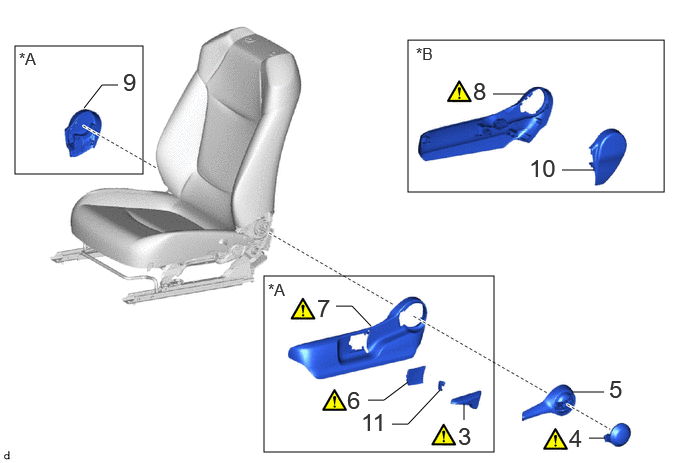

COMPONENTS (DISASSEMBLY)

1,0.167 6.333,1.583 5.333,1.417 2.094,0.646 2.427,0.646 false 5.333,0.667 5.667,0.667 false 3.75,1.583 3.75,0.167 false 1.948,4.563 2.198,4.563 2.198,4.563 3.688,4.188 true 2.615,1.25 2.948,1.25 false 4.542,0.635 4.875,0.635 false 2.479,0.479 2.76,0.833 0.281,0.354 18 false 2 5.74,0.51 6.021,0.865 0.281,0.354 18 false 2 1.083,0.25 1.458,0.49 0.375,0.24 12 false *A 3.833,0.25 4.208,0.49 0.375,0.24 12 false *B 1.76,4.375 2.094,4.646 0.333,0.271 18 false 1 2.979,1.146 3.292,1.344 0.313,0.198 10 false *1 4.375,0.51 4.688,0.708 0.313,0.198 10 false *1

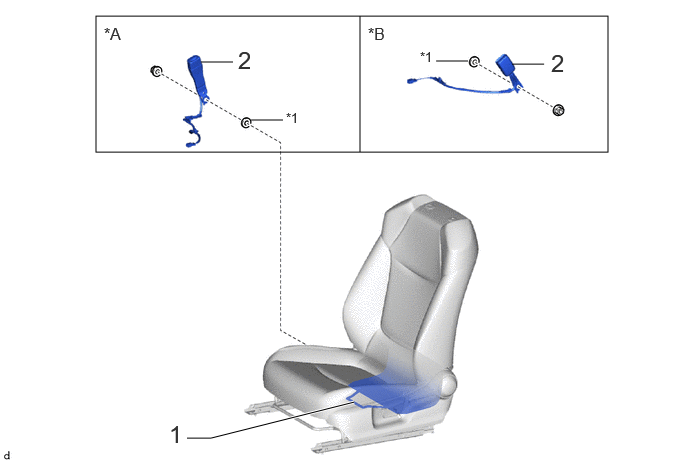

Procedure		Part Name Code
1	DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER	71074S	-	-	-
2	FRONT SEAT INNER BELT ASSEMBLY	73240	-	-	-

*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT SEAT BELT ANCHOR PLAT	-	-

0.156,0.479 1.49,1.813 1.333,1.333 4.25,0.417 6.917,2 2.667,1.583 2.75,2.875 5.146,4.708 2.396,1.833 0.875,1.125 1.063,0.885 1.063,0.885 1.229,0.885 false 5.854,1.771 6.188,1.771 false 3.865,3.396 3.667,3.188 3.667,3.188 3.5,3.188 false 4.833,4.208 4.833,4.375 false 4.083,4.417 4.25,4.417 4.25,4.417 4.583,4.063 false 6.135,4.563 6.302,4.563 false 5.958,4.083 6.292,4.083 false 5.135,0.979 5.469,0.979 false 3.833,4.167 4,4.167 4,4.167 4.25,3.979 false 4.771,4.396 5.042,4.698 0.271,0.302 18 false 3 5.927,4.417 6.177,4.708 0.25,0.292 18 false 4 6.344,3.906 6.625,4.26 0.281,0.354 18 false 5 3.615,4.021 3.896,4.375 0.281,0.354 18 false 6 3.302,3.063 3.583,3.417 0.281,0.354 18 false 7 4.927,0.802 5.208,1.156 0.281,0.354 18 false 8 1.281,0.708 1.688,1.063 0.406,0.354 18 false 9 5.51,1.604 5.917,1.958 0.406,0.354 18 false 10 3.76,4.25 4.167,4.604 0.406,0.354 18 false 11 4.333,0.458 4.708,0.698 0.375,0.24 12 false *B 2.792,2.917 3.167,3.156 0.375,0.24 12 false *A 0.198,0.51 0.573,0.75 0.375,0.24 12 false *A

Procedure		Part Name Code
3	VERTICAL ADJUSTING HANDLE	72495	(202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0003,)	-	-
4	RECLINING HINGE COVER	72552B	(202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0113,)	-	-
5	RECLINING ADJUSTER RELEASE HANDLE	72526	-	-	-
6	SEAT ADJUSTER COVER CAP	71849	(202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0106,)	-	-
7	REMOVE FRONT SEAT CUSHION SHIELD	71812D	(202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0061,)	-	-
8	REMOVE FRONT SEAT CUSHION SHIELD	71811D	(202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0137,)	-	-
9	REMOVE FRONT SEAT INNER CUSHION SHIELD	71862	-	-	-
10	REMOVE FRONT SEAT INNER CUSHION SHIELD	71861	-	-	-
11	VERTICAL ADJUSTER BRACKET COVER	72498A	-	-	-

for Driver Side

for Front Passenger Side

4.896,1.604 5.229,1.604 false 5.229,1.438 5.781,1.792 0.552,0.354 18 false 12 5.302,2.677 5.615,2.875 0.313,0.198 10 false x4

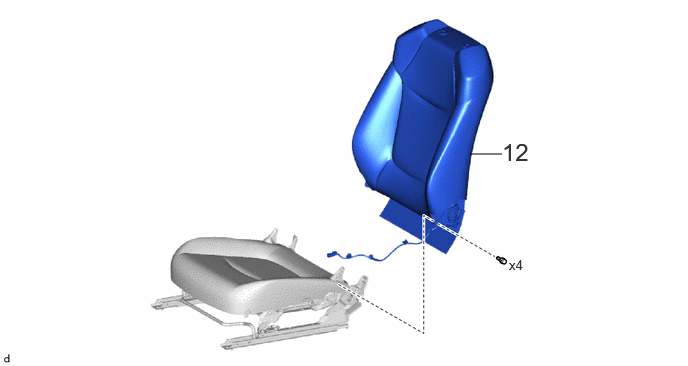

Procedure		Part Name Code
12	REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY	-	-	-	-

0.167,0.083 4.167,5.583 4,5.5 0.813,2.052 0.813,2.385 false 2.75,2.135 2.75,2.469 false 2.75,4.875 2.75,5.208 false 0.771,4.896 0.771,5.229 false 5.875,1.667 5.542,1.667 false 6.479,1.833 6.146,1.833 false 0.167,2.917 4.167,2.917 false 4.5,1.417 4.167,1.417 false 4.5,4.833 4.167,4.833 false 5.188,1.49 5.563,1.802 0.375,0.313 18 false 13 6.5,1.656 6.875,1.969 0.375,0.313 18 false 13 4.542,1.25 4.917,1.563 0.375,0.313 18 false 14 4.521,4.667 4.896,4.979 0.375,0.313 18 false 14 0.646,2.406 1.021,2.719 0.375,0.313 18 false 15 0.604,5.229 0.979,5.542 0.375,0.313 18 false 15 2.667,2.5 2.906,2.729 0.24,0.229 10 false *1 2.656,5.219 2.896,5.448 0.24,0.229 10 false *1 0.24,0.125 0.479,0.354 0.24,0.229 12 false *A 0.24,2.969 0.479,3.198 0.24,0.229 12 false *B

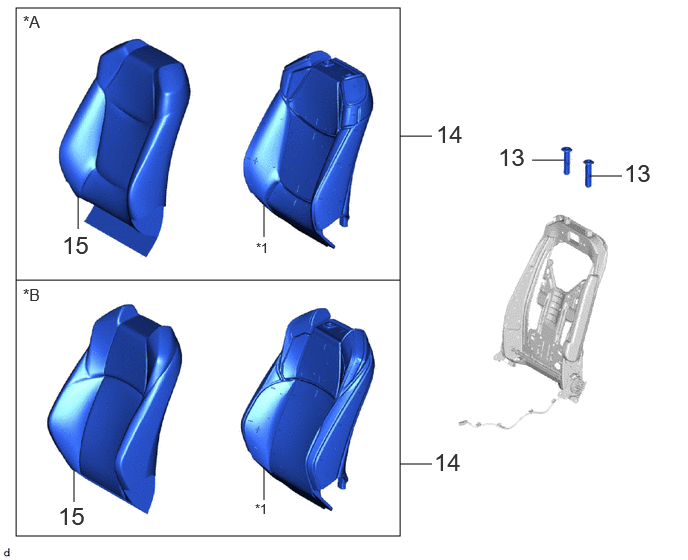

Procedure		Part Name Code
13	FRONT SEAT HEADREST SUPPORT	71931	-	-	-
14	SEPARATE TYPE FRONT SEATBACK COVER WITH PAD	-	-	-	-
15	REMOVE SEPARATE TYPE FRONT SEATBACK COVER	71074S	-	-	-

*A	for TFTM Made	*B	for GTMC Made
*1	SEPARATE TYPE FRONT SEATBACK PAD	-	-

5.167,1.083 5.469,1.083 false 1,1.052 1.302,1.052 false 1.802,2.167 2.135,2.167 false 0.677,0.927 1.229,1.281 0.552,0.354 18 false 17 5.792,0.938 6.344,1.292 0.552,0.354 18 false 16 0.563,0.99 0.719,1.188 0.156,0.198 10 false ● 2.125,2.198 2.448,2.396 0.323,0.198 10 false x2 1.667,2.073 1.823,2.271 0.156,0.198 10 false ●

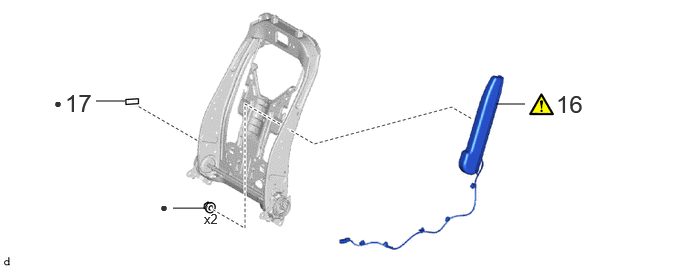

Procedure		Part Name Code
16	FRONT SEAT AIRBAG ASSEMBLY	73920A	(202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0099,)	-	-
17	SEATBACK FELT	79977N	-	-	-

●

Non-reusable part

5.583,1.083 5.917,1.083 false 1.938,1.573 2.271,1.573 false 1.677,2.583 2.01,2.583 false 2.813,1.823 3.146,1.823 false 0.917,3.469 1.417,3.469 false 1.167,3.469 1.167,3.667 1.167,3.667 1.667,3.667 false 1.333,2.417 1.885,2.771 0.552,0.354 18 false 18 0.583,3.302 1.135,3.604 0.552,0.302 18 false 19 1.594,1.417 2.146,1.771 0.552,0.354 18 false 20 3.198,1.656 3.75,2.01 0.552,0.354 18 false 20 6,1 6.313,1.198 0.313,0.198 10 false *1

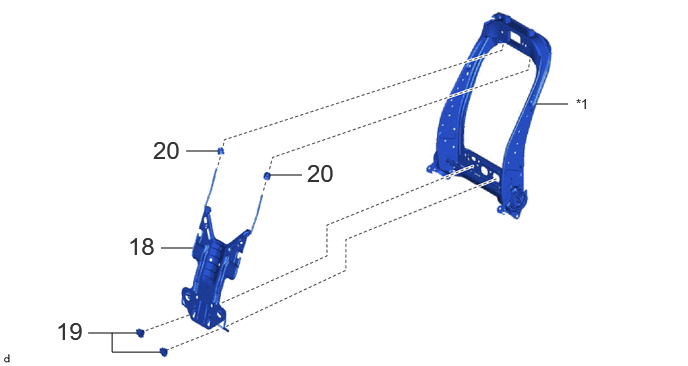

Procedure		Part Name Code
18	FRONT SEATBACK SPRING SUB-ASSEMBLY	71054S	-	-	-
19	FRONT SEATBACK EDGE PROTECTOR	71587	-	-	-
20	FRONT SEATBACK HOOK	71759B	-	-	-

FRONT SEATBACK FRAME SUB-ASSEMBLY

0.167,0.167 6.875,2.5 6.708,2.333 2.604,0.938 2.938,0.938 false 5.979,1.896 6.313,1.896 false 5.781,0.573 6.115,0.573 false 1.25,2.5 1.25,2.833 false 2.688,2.115 3.021,2.115 false 3.583,0.167 3.583,2.5 false 6,2.5 6,2.833 false 6.167,0.385 6.719,0.74 0.552,0.354 18 false 22 3.031,0.792 3.583,1.146 0.552,0.354 18 false 22 6.354,1.781 6.667,1.979 0.313,0.198 10 false *1 1.115,2.854 1.667,3.208 0.552,0.354 18 false 21 3.094,2.021 3.406,2.219 0.313,0.198 10 false *1 0.198,0.188 0.448,0.469 0.25,0.281 12 false *A 3.635,0.198 3.885,0.479 0.25,0.281 12 false *B 5.865,2.865 6.417,3.219 0.552,0.354 18 false 21

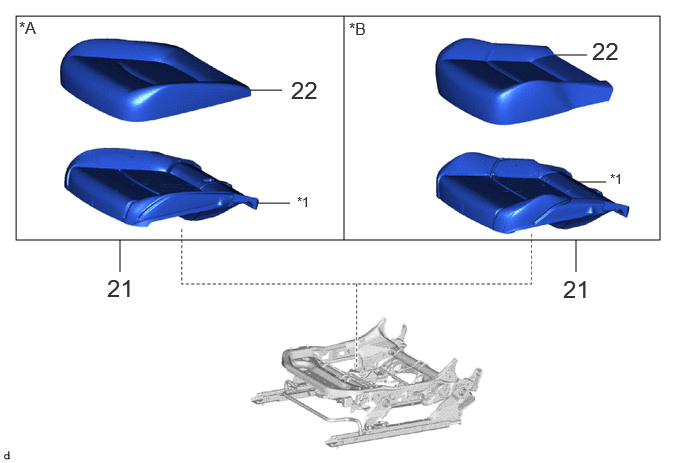

Procedure		Part Name Code
21	SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD	-	-	-	-
22	SEPARATE TYPE FRONT SEAT CUSHION COVER	71072S	-	-	-

*A	for TFTM Made	*B	for GTMC Made
*1	SEPARATE TYPE FRONT SEAT CUSHION PAD	-	-

5,1.417 6.5,2.417 1.5,1 0.25,0.417 1.75,1.417 1.5,1 0.885,0.885 1.219,0.885 false 2.833,1.281 3.167,1.281 false 0.917,2.115 0.917,2.448 false 1.552,3.448 1.552,3.781 false 2.281,3.875 2.281,4.208 false 3.635,4.51 3.969,4.51 false 4.833,2.417 4.917,2.417 4.917,2.417 5,2.802 false 5.833,3.229 5.833,3.5 false 5.552,2.302 5.885,2.302 false 5.615,1.74 5.948,1.74 false 5.521,0.979 5.854,0.979 false 5.75,0.417 6.083,0.417 false 2.458,2.833 2.792,2.833 false 1.281,0.719 1.677,1.021 0.396,0.302 18 false 23 5.177,0.823 5.573,1.125 0.396,0.302 18 false 24 6.135,0.25 6.531,0.552 0.396,0.302 18 false 25 5.24,2.125 5.635,2.427 0.396,0.302 18 false 26 5.99,1.583 6.385,1.885 0.396,0.302 18 false 27 4.021,4.333 4.417,4.635 0.396,0.302 18 false 28 2.49,1.125 2.885,1.427 0.396,0.302 18 false 29 0.781,2.438 1.177,2.74 0.396,0.302 18 false 30 1.396,3.771 1.792,4.073 0.396,0.302 18 false 31 2.146,4.25 2.542,4.552 0.396,0.302 18 false 31 5.875,3.5 6.271,3.802 0.396,0.302 18 false 32 4.51,2.24 4.906,2.542 0.396,0.302 18 false 32 3.375,2.24 3.688,2.49 0.313,0.25 10 false x2 0.281,0.438 0.594,0.688 0.313,0.25 12 false *A 5.031,1.438 5.344,1.688 0.313,0.25 12 false *B 2.281,2.74 2.594,2.99 0.313,0.25 10 false *1

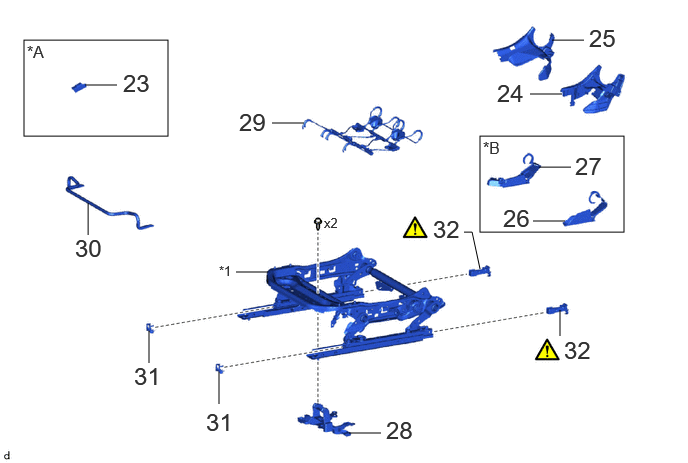

Procedure		Part Name Code
23	CONNECTOR HOLDER	82666M	-	-	-
24	SEAT RECLINING ADJUSTER INSIDE COVER LH	71876G	-	-	-
25	SEAT RECLINING ADJUSTER INSIDE COVER RH	71876F	-	-	-
26	FRONT SEAT LOWER CUSHION SHIELD LH	71874A	-	-	-
27	FRONT SEAT LOWER CUSHION SHIELD RH	71873U	-	-	-
28	FRONT SEAT CUSHION WIRE HARNESS HOLDER	7181B	-	-	-
29	FRONT SEAT CUSHION SPRING SUB-ASSEMBLY	71052A	-	-	-
30	SEAT TRACK ADJUSTING HANDLE	72211	-	-	-
31	SEAT TRACK UPPER RAIL COVER	72266	-	-	-
32	SEAT TRACK REAR UPPER COVER	72125V	(202201,999999,_58,_114203,_0509291,RM10000000204I3_02_0135,)	-	-

*A	for Front Passenger Side	*B	w/ Vertical Adjuster
*1	FRONT SEAT ADJUSTER ASSEMBLY	-	-

CAUTION / NOTICE / HINT

CAUTION:: Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:: ·

Use the same procedure for the driver side and front passenger side.

·

The procedure listed below is for the driver side.

PROCEDURE

Hide Display 71074S 1.DISCONNECT SEPARATE TYPE FRONT SEATBACK COVER

Hide Display 73240 2.REMOVE FRONT SEAT INNER BELT ASSEMBLY

Click hereVehicle Interior>SEAT BELT>FRONT SEAT INNER BELT ASSEMBLY>REMOVAL202201,202307,_58,_114202,_0509299,RM10000000204IZ_02_0086,202307,999999,_58,_114202,_0509299,RM100000002BZY6_02_0086,

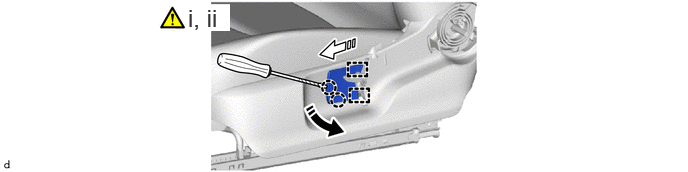

Hide Display 72495 3.REMOVE VERTICAL ADJUSTING HANDLE (for Driver Side)

2,0.031 2.458,0.323 0.458,0.292 18 true i, ii

Pull up

Remove in this Direction

Using a thin-bladed screwdriver, disengage the claw.

HINT:: Tape the thin-bladed screwdriver tip before use.

ii.

Disengage the claw as shown in the illustration.

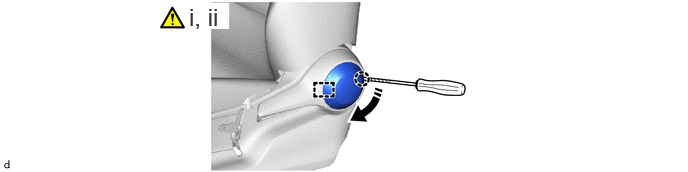

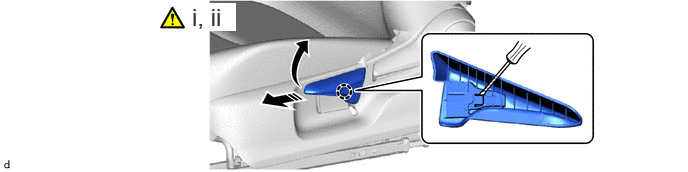

Hide Display 72552B 4.REMOVE RECLINING HINGE COVER

1.969,0.031 2.385,0.302 0.417,0.271 18 true i, ii

Remove in this Direction

Using a thin-bladed screwdriver, disengage the claw.

HINT:: Tape the thin-bladed screwdriver tip before use.

ii.

Disengage the claw as shown in the illustration.

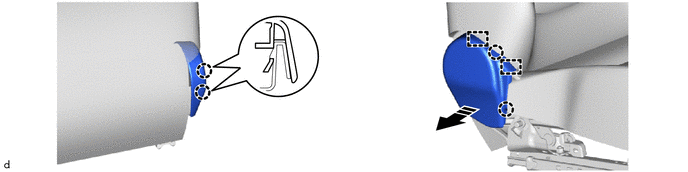

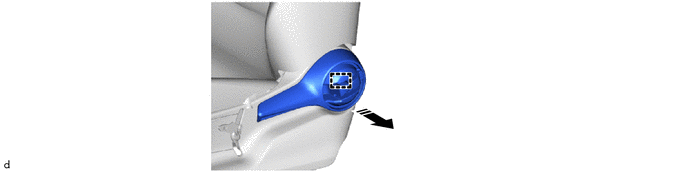

Hide Display 72526 5.REMOVE RECLINING ADJUSTER RELEASE HANDLE

0,0 0,0 false

Remove in this Direction

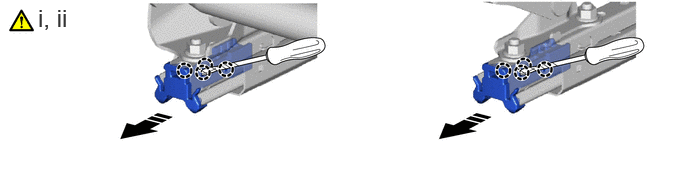

Hide Display 71849 6.REMOVE SEAT ADJUSTER COVER CAP (for Driver Side)

1.958,0.042 2.396,0.323 0.438,0.281 18 true i, ii

Remove in this Direction (1)

Remove in this Direction (2)

Using a thin-bladed screwdriver, disengage the claw.

HINT:: Tape the thin-bladed screwdriver tip before use.

ii.

Disengage the claw as shown in the illustration.

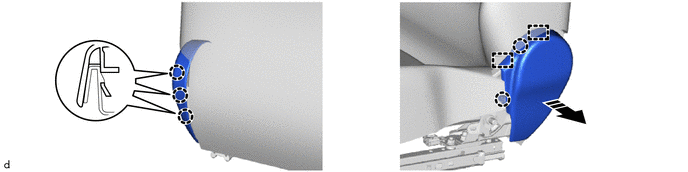

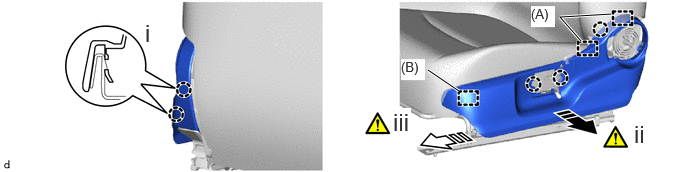

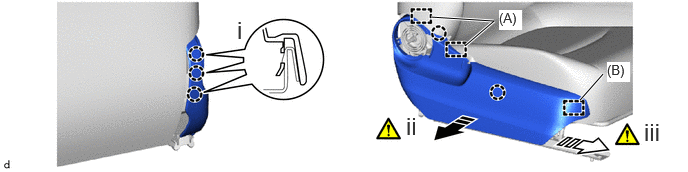

Hide Display 71812D 7.REMOVE FRONT SEAT CUSHION SHIELD (for Driver Side)

4.781,0.948 4.458,0.729 true 6.052,0.427 5.833,0.177 5.833,0.177 6.365,0.146 true 1.51,0.198 1.729,0.5 0.219,0.302 18 false i 6.604,1.25 6.792,1.51 0.188,0.26 18 false ii 4.094,1.125 4.281,1.365 0.188,0.24 18 true iii 4.177,0.615 4.427,0.833 0.25,0.219 10 true (B) 5.531,0.063 5.781,0.281 0.25,0.219 10 true (A)

Remove in this Direction (1)

Remove in this Direction (2)

Disengage the claws.

ii.

Disengage the claws and guides (A) as shown in the illustration.

iii.

Disengage the guide (B) to remove the front seat cushion shield as shown in the illustration.

Hide Display 71811D 8.REMOVE FRONT SEAT CUSHION SHIELD (for Front Passenger Side)

4.49,0.177 5.146,0.219 5.146,0.219 4.854,0.469 true 6.042,1.042 6.281,0.771 true 2.469,0.167 2.688,0.448 0.219,0.281 18 false i 4.229,1.167 4.458,1.458 0.229,0.292 18 false ii 6.708,1.229 6.958,1.51 0.25,0.281 18 false iii 5.198,0.104 5.438,0.313 0.24,0.208 10 true (A) 6.323,0.646 6.563,0.854 0.24,0.208 10 true (B)

Remove in this Direction (1)

Remove in this Direction (2)

Disengage the claws.

ii.

Disengage the claws and guides (A) as shown in the illustration.

iii.

Disengage the guide (B) to remove the front seat cushion shield as shown in the illustration.

Hide Display 71862 9.REMOVE FRONT SEAT INNER CUSHION SHIELD (for Driver Side)

0,0 0,0 false

Remove in this Direction

Hide Display 71861 10.REMOVE FRONT SEAT INNER CUSHION SHIELD (for Front Passenger Side)

0,0 0,0 false

Remove in this Direction

Hide Display 72498A 11.REMOVE VERTICAL ADJUSTER BRACKET COVER (for Driver Side)

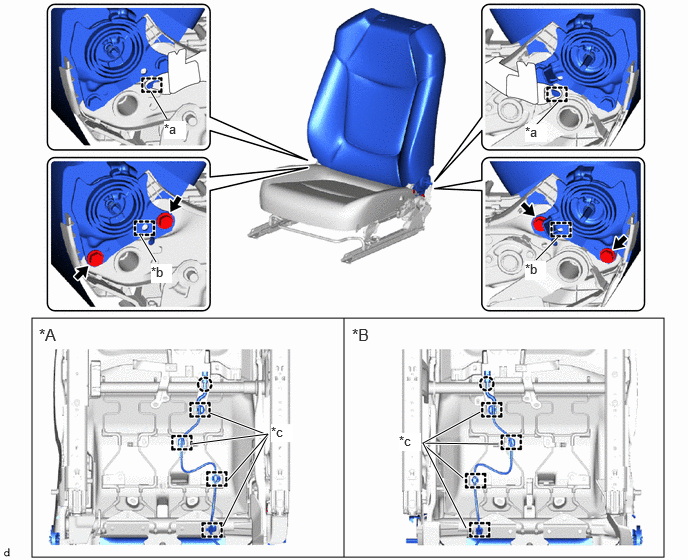

Hide Display 12.REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

0.333,3.313 6.917,5.802 6.583,2.49 1.74,1.24 1.573,0.958 true 5.583,1.302 5.813,1.063 true 1.625,2.729 1.458,2.448 true 5.583,2.708 5.813,2.469 true 2.188,4.302 2.792,4.531 2.792,4.531 2.323,5.479 true 1.99,4.625 2.792,4.521 2.792,4.521 2.375,5 true 5.188,4.625 4.396,4.615 4.396,4.615 4.823,4.979 true 5,4.292 4.406,4.615 4.406,4.615 4.854,5.5 true 3.583,3.313 3.583,5.802 false 1.708,1.26 1.938,1.448 0.229,0.188 10 true *a 1.573,2.75 1.792,2.948 0.219,0.198 10 true *b 2.823,4.417 3.052,4.604 0.229,0.188 10 true *c 5.469,1.292 5.698,1.479 0.229,0.188 10 true *a 5.469,2.719 5.688,2.917 0.219,0.198 10 true *b 4.156,4.51 4.385,4.698 0.229,0.188 10 true *c 0.406,3.385 0.635,3.677 0.229,0.292 12 false *A 3.667,3.385 3.896,3.677 0.229,0.292 12 false *B

*A	for Driver Side	*B	for Front Passenger Side
*a	Hook	*b	Guide
*c	Clamp	-	-

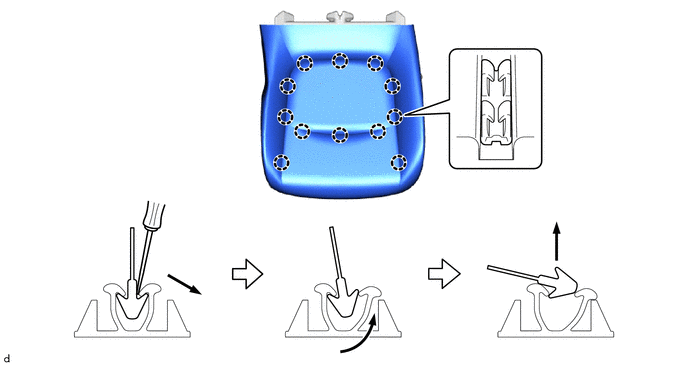

Hide Display 71931 13.REMOVE FRONT SEAT HEADREST SUPPORT

0,0 0,0 false

Remove in this Direction

Hide Display 14.REMOVE SEPARATE TYPE FRONT SEATBACK COVER WITH PAD

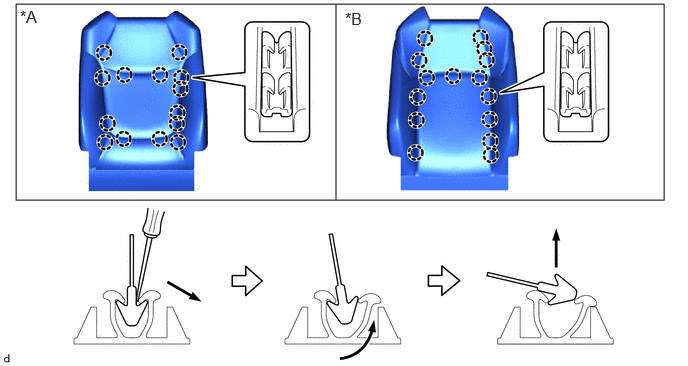

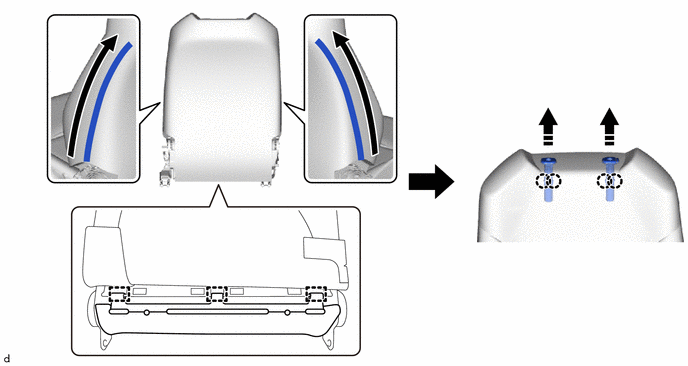

Hide Display 71074S 15.REMOVE SEPARATE TYPE FRONT SEATBACK COVER

0.167,0.042 6.917,2.083 6.75,2.042 3.5,2.083 3.5,0.042 false 0.208,0.073 0.479,0.281 0.271,0.208 12 false *A 3.594,0.094 3.885,0.323 0.292,0.229 12 false *B

for TFTM Made

for GTMC Made

Hide Display 73920A 16.REMOVE FRONT SEAT AIRBAG ASSEMBLY

Click here(

202201,202307,_58,_115188,_0510628,RM1000000020A9U_01_0005,202307,999999,_58,_115188,_0510628,RM100000002BZWR_01_0005,)

Hide Display 79977A 17.REMOVE SEATBACK FELT

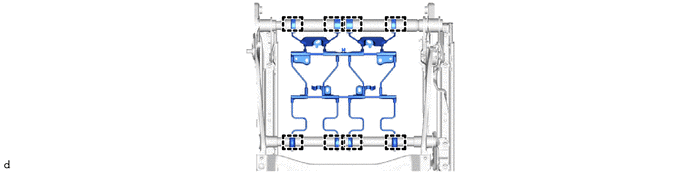

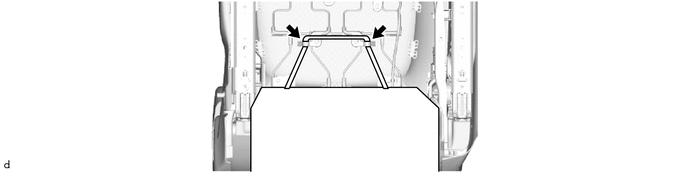

Hide Display 18.REMOVE FRONT SEATBACK SPRING SUB-ASSEMBLY

0,0 0,0 false

Remove in this Direction

Hide Display 19.REMOVE FRONT SEATBACK EDGE PROTECTOR

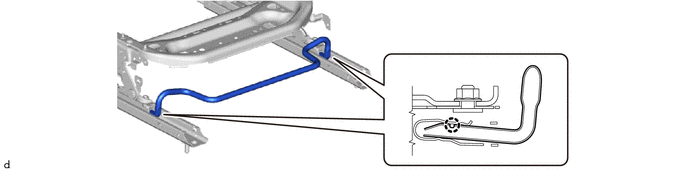

Hide Display 20.REMOVE FRONT SEATBACK HOOK

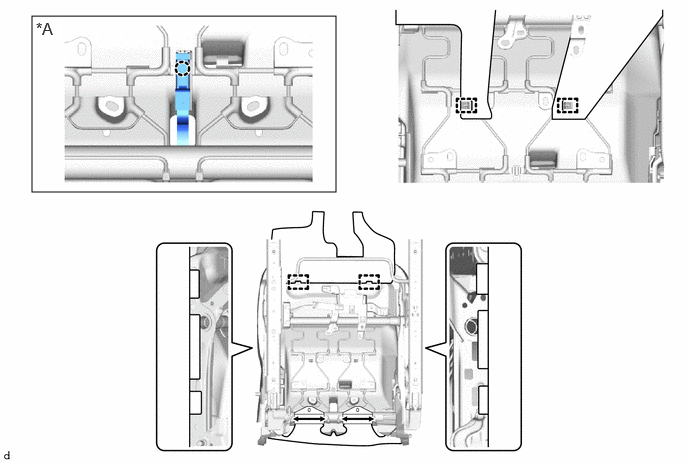

Hide Display 21.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD

0.333,0.167 3.5,2 3.167,1.833 0.375,0.198 0.646,0.427 0.271,0.229 12 true *A

for Front Passenger Side

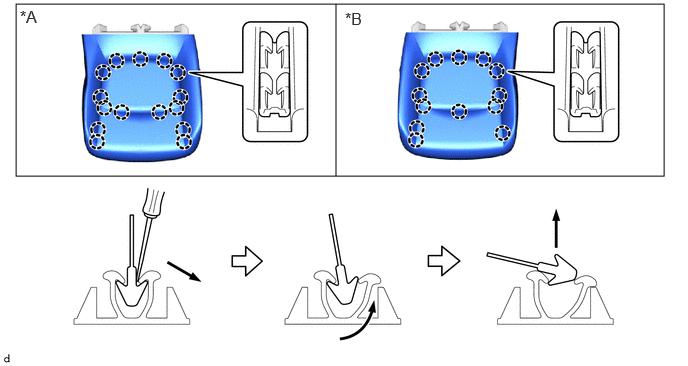

Hide Display 71072S 22.REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER

for TFTM Made:

for GTMC Made:

0.167,0.042 6.917,1.833 6.75,1.792 3.5,1.833 3.5,0.042 false 0.208,0.073 0.479,0.281 0.271,0.208 12 false *A 3.594,0.094 3.885,0.323 0.292,0.229 12 false *B

for Driver Side

for Front Passenger Side

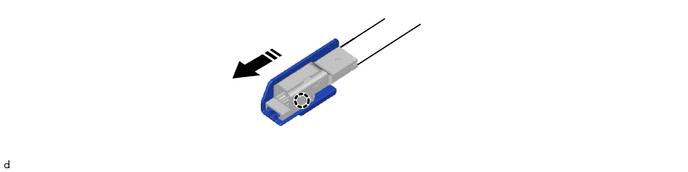

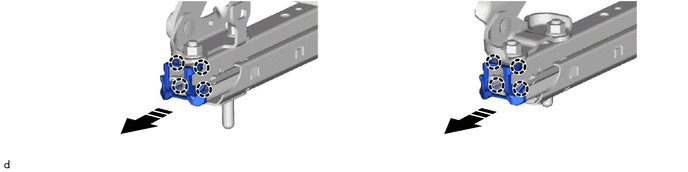

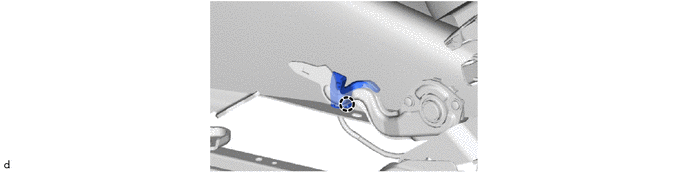

Hide Display 82666M 23.REMOVE CONNECTOR HOLDER (for Front Passenger Side)

0,0 0,0 false

Remove in this Direction

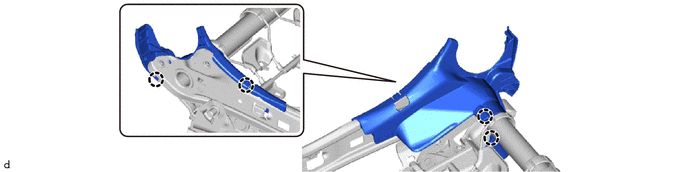

Hide Display 71876G 24.REMOVE SEAT RECLINING ADJUSTER INSIDE COVER LH

Hide Display 71876F 25.REMOVE SEAT RECLINING ADJUSTER INSIDE COVER RH

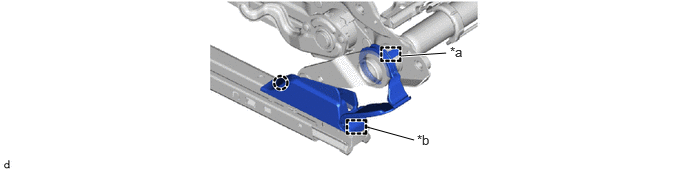

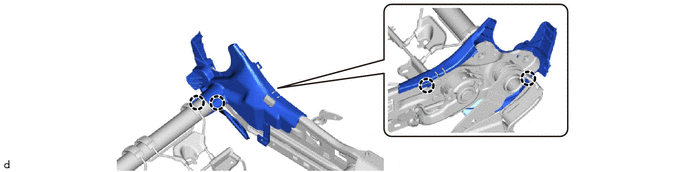

Hide Display 71874A 26.REMOVE FRONT SEAT LOWER CUSHION SHIELD LH (w/ Vertical Adjuster)

3.823,1.323 4.313,1.458 false 4.177,0.583 4.646,0.552 true 4.688,0.458 4.896,0.646 0.208,0.188 10 false *a 4.344,1.375 4.656,1.531 0.313,0.156 10 false *b

Hook

Guide

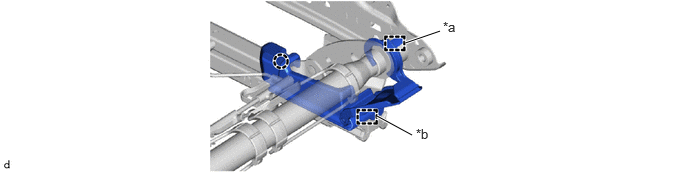

Hide Display 71873U 27.REMOVE FRONT SEAT LOWER CUSHION SHIELD RH (w/ Vertical Adjuster)

4.219,0.448 4.583,0.323 true 3.927,1.208 4.292,1.406 true 4.615,0.198 4.927,0.354 0.313,0.156 10 false *a 4.333,1.313 4.646,1.469 0.313,0.156 10 false *b

Hook

Guide

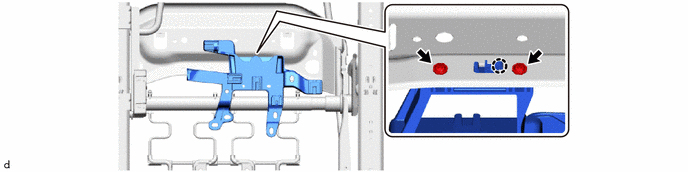

Hide Display 7181B 28.REMOVE FRONT SEAT CUSHION WIRE HARNESS HOLDER
