RM38T0EC _58 Vehicle Interior _114203 SEAT _0509291 FRONT SEAT ASSEMBLY(for Manual Seat) A

SEAT  FRONT SEAT ASSEMBLY(for Manual Seat)  REMOVAL


CAUTION / NOTICE / HINT

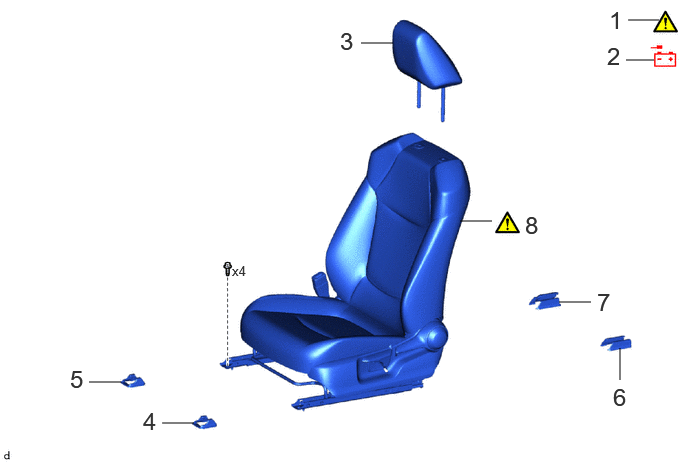

COMPONENTS (REMOVAL)
B631776N01
3.76,0.448 4.094,0.448 false 4.792,2.302 5.125,2.302 false 5.823,3.146 6.156,3.146 false 6.458,3.958 6.458,3.625 false 0.927,3.979 1.26,3.979 false 1.688,4.406 2.021,4.406 false 6.542,0.208 6.865,0.208 false 6.521,0.625 6.813,0.625 false 6.344,0.063 6.625,0.417 0.281,0.354 18 false 1 6.323,0.438 6.604,0.792 0.281,0.354 18 false 2 3.542,0.281 3.823,0.635 0.281,0.354 18 false 3 1.49,4.24 1.771,4.594 0.281,0.354 18 false 4 0.729,3.802 1.01,4.156 0.281,0.354 18 false 5 6.385,3.99 6.667,4.344 0.281,0.354 18 false 6 6.219,3 6.5,3.354 0.281,0.354 18 false 7 2.417,2.74 2.729,2.938 0.313,0.198 10 false x4 5.469,2.198 5.75,2.552 0.281,0.354 18 false 8

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
3 FRONT SEAT HEADREST ASSEMBLY 71910A - - -
4 FRONT SEAT TRACK BRACKET OUTER COVER 72124 - - -
5 FRONT SEAT TRACK BRACKET INNER COVER 72128A - - -
6 SEAT TRACK OUTER COVER 72138 - - -
7 SEAT TRACK BRACKET INNER COVER 72158 - - -
8 FRONT SEAT ASSEMBLY - (Click here) - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front seat assembly removal/installation are shown below.

CAUTION:
B585480

Wear protective gloves. Sharp areas on the parts may injure your hands.


NOTICE:

If a front seat airbag assembly has been deployed, replace the front seat airbag assembly, front seatback frame sub-assembly, separate type front seatback pad, separate type front seatback cover and front seatback pad with cover with the necessary parts in accordance with the extent of the collision damage.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Manual Seat)>DISASSEMBLY


HINT:
·

When the cable is disconected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

-

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*1: for Gasoline Model

Front camera system Drive the vehicle straight ahead at 15 km/h (10mph) or more for 1 second or more. (Click here)
Stop and start system*1 Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)

-

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -


·

Use the same procedure for the driver side and front passenger side.

·

The procedure listed below is for the driver side.



PROCEDURE

Hide 1. PRECAUTION

Z101186

CAUTION:
B401522

Be sure to read Precaution thoroughly before servicing.

Click here(Click here)


NOTICE:

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click here(Click here)



Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Z101186

CAUTION:
B422343

·

Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.




·

for M20A-FKS, M20C-FKS, M20E-FKS:

Click hereGeneral>MAINTENANCE>M20A-FKS, M20C-FKS, M20E-FKS AUXILIARY BATTERY>REMOVAL

·

for M20F-FXS, M20G-FXS:

Click hereGeneral>MAINTENANCE>M20F-FXS, M20G-FXS AUXILIARY BATTERY>REMOVAL

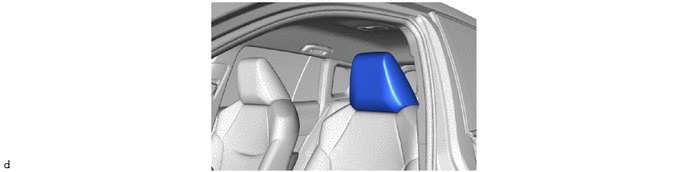

Hide 71910A 3.REMOVE FRONT SEAT HEADREST ASSEMBLY

a.
B582370

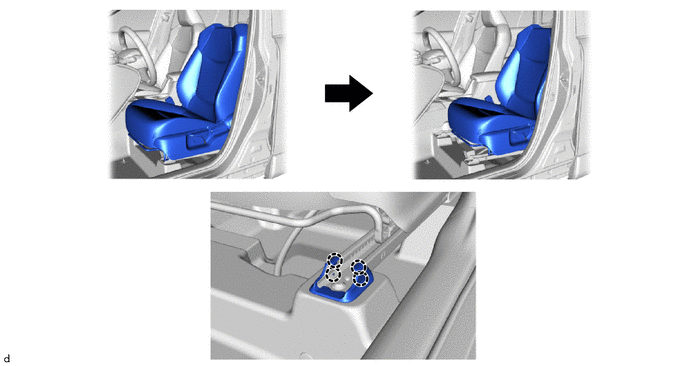

Hide 72124 4.REMOVE FRONT SEAT TRACK BRACKET OUTER COVER

a.
B582371

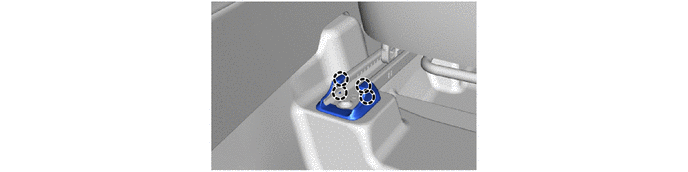

Hide 72128A 5.REMOVE FRONT SEAT TRACK BRACKET INNER COVER

a.
B582837

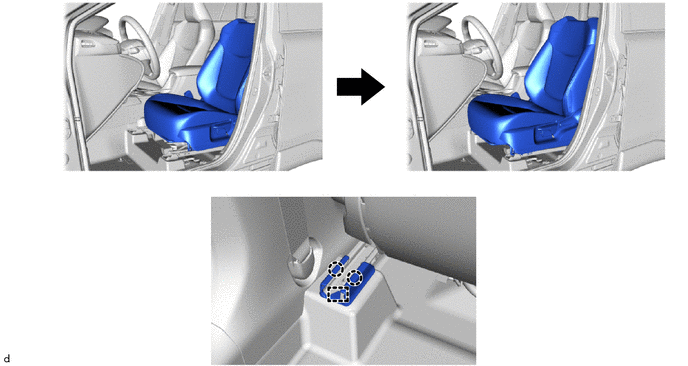

Hide 72138 6.REMOVE SEAT TRACK OUTER COVER

a.
B625276

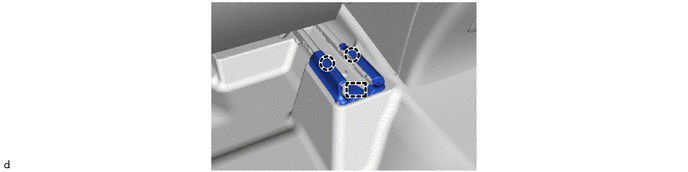

Hide 72158 7.REMOVE SEAT TRACK BRACKET INNER COVER

a.
B582373

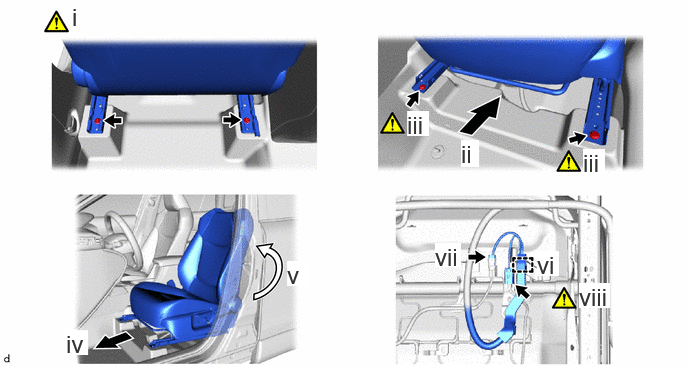

Hide 8.REMOVE FRONT SEAT ASSEMBLY

a.
B582374N02
0.75,0.031 1.031,0.385 0.281,0.354 18 false i 4.802,1.458 4.99,1.74 0.188,0.281 18 true ii 4.24,1.156 4.469,1.417 0.229,0.26 18 true iii 6.073,1.552 6.302,1.813 0.229,0.26 18 true iii 0.688,3.438 0.917,3.698 0.229,0.26 18 true iv 2.99,2.719 3.219,2.979 0.229,0.26 18 true v 5.594,2.615 5.823,2.875 0.229,0.26 18 true vi 4.531,2.531 4.802,2.781 0.271,0.25 18 true vii 6.031,2.948 6.354,3.208 0.323,0.26 18 true viii

i.

Using a T50 "TORX" socket wrench, remove the 2 bolts on the rear side of the front seat assembly.


ii.

Operate the seat track adjusting handle to move the front seat assembly to the rearmost position.


iii.

Using a T50 "TORX" socket wrench, remove the 2 bolts on the front side of the front seat assembly.


iv.

Operate the seat track adjusting handle to move the front seat assembly to the center position.


v.

Operate the reclining adjuster release handle and move the seatback to the upright position.


vi.

Disengage the clamp.


vii.

Disconnect the connector.


viii.

Disconnect the front seat airbag assembly connector under the front seat assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.


HINT:

Refer to How to Connect or Disconnect Airbag Connector:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>HOW TO CONNECT OR DISCONNECT AIRBAG CONNECTOR




b.
B582375N01
0.375,0.031 0.656,0.385 0.281,0.354 18 false i

i.

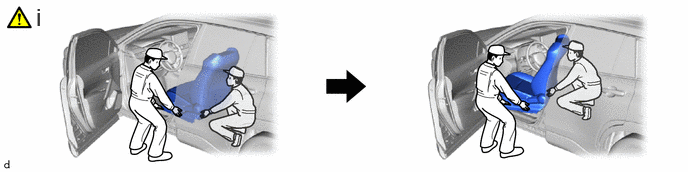

Remove the front seat assembly as shown in the illustration.

NOTICE:
·

2 or more people are required when carrying the front seat assembly out of the vehicle.

·

Protect the front seat leg.

·

Be careful not to damage the front seat assembly, body exterior or body interior.
