RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604911 SFI SYSTEM C

M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P226D00  Particulate Filter Deteriorated/Missing Substrate Bank 1


DESCRIPTION


DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P226D00 Particulate Filter Deteriorated/Missing Substrate Bank 1 Either of the following conditions are met (2 trip detection logic):
·

All of the following conditions are met

(a)

The battery voltage is higher than 8 V.

(b)

5 hours or more have elapsed since the engine stopped on the previous trip.

(c)

The No. 1 exhaust gas temperature sensor at engine start is less than 42°C (107°F).

(d)

The No. 2 exhaust gas temperature sensor at engine start is less than 42°C (107°F).

(e)

The engine coolant temperature at engine start is -10°C (14°F) or more.

(f)

The engine coolant temperature is less than 65°C (149°F).

(g)

The intake air temperature is higher than -10°C (14°F).

(h)

The difference between the No. 1 exhaust gas temperature sensor and No. 2 exhaust gas temperature sensor at engine start is less than 25°C (77°F).


·

When the minimum intake air temperature during monitoring is 10°C (50°F) and the value obtained by dividing the GPF upstream exhaust temperature area by the GPF downstream exhaust temperature area is less than 2.5.


·

Front exhaust pipe assembly (GPF)

·

No. 1 exhaust gas temperature sensor

·

No. 2 exhaust gas temperature sensor


Comes on SAE Code: P226D

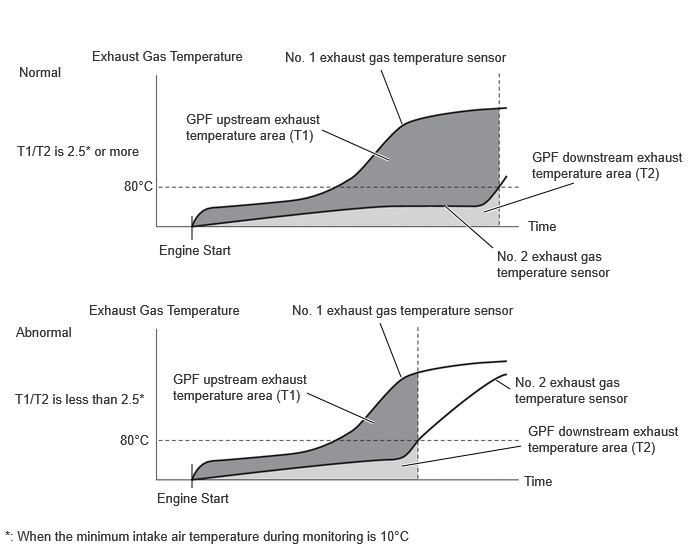

MONITOR DESCRIPTION

A524056E23
4.188,1.292 3.969,0.729 true 4.177,3.927 3.958,3.365 true 5.135,2.583 4.635,2.146 true 5.167,3.958 5.313,4.052 true 3.198,4.094 3.896,4.406 true 3.354,1.354 4.052,1.667 true 5.979,1.906 5.042,2.208 true 5.427,4.646 4.188,4.854 true 2,2.5 2,2.25 false 2,5.083 2,4.833 false 5.5,2.271 6.115,2.469 0.615,0.198 10 false Time 5.458,4.927 6.073,5.125 0.615,0.198 10 false Time 0.958,0.5 4.479,0.698 3.521,0.198 10 false Exhaust Gas Temperature 0.927,3.146 4.448,3.344 3.521,0.198 10 false Exhaust Gas Temperature 2.969,0.51 6.49,0.708 3.521,0.198 10 false No. 1 exhaust gas temperature sensor 5.5,4.406 7.156,4.906 1.656,0.5 10 false GPF downstream exhaust temperature area (T2) 5.365,3.896 6.979,4.313 1.615,0.417 10 false No. 2 exhaust gas temperature sensor 5.177,2.583 6.781,3 1.604,0.417 10 false No. 2 exhaust gas temperature sensor 3.042,3.146 6.563,3.344 3.521,0.198 10 false No. 1 exhaust gas temperature sensor 1.938,1.156 3.406,1.75 1.469,0.594 10 false GPF upstream exhaust temperature area (T1) 1.802,3.865 3.24,4.344 1.438,0.479 10 false GPF upstream exhaust temperature area (T1) 5.542,1.552 7.146,2.26 1.604,0.708 10 false GPF downstream exhaust temperature area (T2) 1.656,2.521 3.49,2.719 1.833,0.198 10 false Engine Start 1.635,5.104 3.469,5.302 1.833,0.198 10 false Engine Start 1.292,1.854 1.906,2.052 0.615,0.198 10 false 80°C 1.25,4.5 1.865,4.698 0.615,0.198 10 false 80°C 0.167,3.375 0.927,3.677 0.76,0.302 10 false Abnormal 0.177,1.49 1.708,1.688 1.531,0.198 10 false T1/T2 is 2.5* or more 0.156,4.073 1.688,4.271 1.531,0.198 10 false T1/T2 is less than 2.5* 0.198,0.667 0.781,0.906 0.583,0.24 10 false Normal 0.052,5.5 7.156,5.698 7.104,0.198 10 false *: When the minimum intake air temperature during monitoring is 10°C

The ECM monitors the status of the GPF using 2 exhaust temperature sensors, installed to the inlet and outlet.

The No. 1 exhaust gas temperature sensor sends a signal of the GPF upstream exhaust temperature to the ECM.

The No. 2 exhaust gas temperature sensor sends a signal of the GPF downstream exhaust temperature to the ECM.

The ECM detects loss of function of the GPF by converting the temperature change into an area after monitoring the exhaust temperature upstream and downstream of the GPF from the time the engine is started until the exhaust temperature downstream of the GPF reaches 80°C or more after 5 hours or more have passed since the last engine shutdown. When the minimum intake air temperature during monitoring is 10°C (50°F) and the value obtained by dividing the GPF upstream exhaust temperature area by the GPF downstream exhaust temperature area is less than 2.5, the ECM determines loss of function of the GPF and illuminates the MIL and stores a DTC.

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following procedure.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off.

6.

With the engine stopped, leave the vehicle as is for 3 hours or more.

7.

Turn the ignition switch to ON.

8.

Turn the GTS on.

9.
10.

Start the engine.

11.

Idle the engine for 15 minutes or more.

12.

Enter the following menus: Powertrain / Engine / Trouble Codes.

13.

Read the pending DTCs.

HINT:

If a pending DTC is output, the system is malfunctioning.



CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the freeze frame data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P226D00)
a.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTC P226D00 is output A
DTC P226D00 and other DTCs are output B


HINT:

If any DTCs other than P226D00 are output, troubleshoot those DTCs first.




A

2.CHECK FRONT EXHAUST PIPE ASSEMBLY

B

GO TO DTC CHART

2.CHECK FRONT EXHAUST PIPE ASSEMBLY
a.

Check that a genuine front exhaust pipe assemblyis installed.

OK:

A genuine front exhaust pipe assembly is installed.


HINT:

Clear the GPF deterioration record using the GTS after replacing the front exhaust pipe assembly (GPF).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

3.CHECK FOR EXHAUST GAS LEAK

NG

3.CHECK FOR EXHAUST GAS LEAK
a.

Check for exhaust gas leaks.

OK:

No gas leaks in exhaust system.



Result:
Proceed to
OK
NG



OK

4.READ VALUE USING GTS (EXHAUST TEMPERATURE B1S1 AND EXHAUST TEMPERATURE B1S2)

NG

REPAIR OR REPLACE EXHAUST SYSTEM

4.READ VALUE USING GTS (EXHAUST TEMPERATURE B1S1 AND EXHAUST TEMPERATURE B1S2)
a.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with all the accessories switched off.

Powertrain > Engine > Data List
Tester Display
Coolant Temperature
50003 372 205

b.

With the engine warmed up, idle the engine for 5 minutes or more.


c.

While the vehicle is stopped, check the value of the Data List items "Exhaust Temperature B1S1" and "Exhaust Temperature B1S2", and race the engine at 2500 rpm for 60 seconds.

Powertrain > Engine > Data List
Tester Display
Engine Speed
Exhaust Temperature B1S1
Exhaust Temperature B1S2
50003 372 211,1133,1134

Result:
Result Proceed to
The increase in temperature of the value of "Exhaust Temperature B1S1" before and after racing the engine is less than 30°C (86°F) A
The increase in temperature of the value of "Exhaust Temperature B1S2" before and after racing the engine is less than 30°C (86°F) B
Other than above C



A

B

C

5.INSPECT NO. 1 EXHAUST GAS TEMPERATURE SENSOR
