RM38T0EC _51 Engine / Hybrid System _144997 M20F-FXS, M20G-FXS INTAKE / EXHAUST _0604324 EXHAUST PIPE A

M20F-FXS, M20G-FXS INTAKE / EXHAUST EXHAUST PIPE REMOVAL

CAUTION / NOTICE / HINT

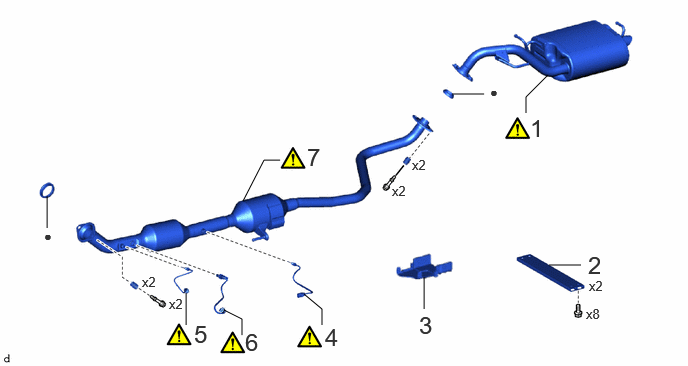

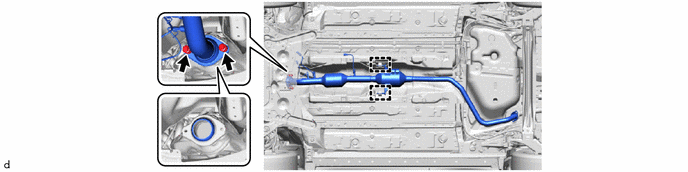

COMPONENTS (REMOVAL)

4.708,0.979 5.042,0.979 false 5.719,2.76 6.052,2.76 false 0.49,2.375 0.49,2.042 false 1.938,3.385 1.938,3.052 false 3.354,3.385 3.354,3.219 3.354,3.219 3.167,3.063 false 2.917,1.667 2.75,1.667 2.75,1.667 2.531,2.094 false 5.479,1.177 5.479,1.01 5.479,1.01 5.708,0.781 false 4.417,3.219 4.417,2.885 false 2.521,3.49 2.521,3.323 2.521,3.323 2.333,3.229 false 3.198,1.49 3.479,1.844 0.281,0.354 18 false 7 5.521,1.188 5.802,1.542 0.281,0.354 18 false 1 5.104,0.875 5.26,1.073 0.156,0.198 10 false ● 0.458,2.375 0.615,2.573 0.156,0.198 10 false ● 2.021,3.333 2.302,3.688 0.281,0.354 18 false 5 2.552,3.417 2.833,3.771 0.281,0.354 18 false 6 3.385,3.365 3.667,3.719 0.281,0.354 18 false 4 4.083,1.906 4.396,2.104 0.313,0.198 10 false x2 4.292,1.635 4.604,1.833 0.313,0.198 10 false x2 6.135,2.896 6.448,3.094 0.313,0.198 10 false x2 6.125,2.615 6.406,2.969 0.281,0.354 18 false 2 6.104,3.188 6.417,3.385 0.313,0.198 10 false x8 1.76,3.083 2.073,3.281 0.313,0.198 10 false x2 1.479,2.854 1.792,3.052 0.313,0.198 10 false x2 4.365,3.24 4.646,3.594 0.281,0.354 18 false 3

Procedure		Part Name Code
1	TAIL EXHAUST PIPE ASSEMBLY	17430	(202307,999999,_51,_144997,_0604324,RM100000002C1OP_02_0025,)	-	-
2	FRONT FLOOR CENTER BRACE	57533B	-	-	-
3	COVER	-	-	-	-
4	NO. 2 EXHAUST GAS TEMPERATURE SENSOR	89425A	(202307,999999,_51,_144997,_0604324,RM100000002C1OP_02_0030,)	-	-
5	EXHAUST GAS TEMPERATURE SENSOR	89425	(202307,999999,_51,_144997,_0604324,RM100000002C1OP_02_0029,)	-	-
6	AIR FUEL RATIO SENSOR	89467C	(202307,999999,_51,_144997,_0604324,RM100000002C1OP_02_0023,)	-	-
7	FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst)	17410	(202307,999999,_51,_144997,_0604324,RM100000002C1OP_02_0026,)	-	-

●

Non-reusable part

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during front exhaust pipe assembly (TWC: Rear Catalyst) and tail exhaust pipe assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
· Replacement of air fuel ratio sensor (sensor 2) · Gas leak from exhaust system is repaired	Inspection after repair	· Poor idle, etc. · Engine start function, etc.	(202307,999999,_51,_144956,_0604911,RM100000002BWPD,)
