M20F-FXS, M20G-FXS EMISSION CONTROL  EXHAUST GAS TEMPERATURE SENSOR(for Front)  INSPECTION

1.479,0.208 1.948,0.396 0.469,0.188 1.031,1.656 1.448,1.24 true 1.771,1.229 2.188,1.625 true 0.167,0.115 0.479,0.313 0.313,0.198 10 false *a 1.552,0.229 2.031,0.448 0.479,0.219 10 false C138 0.677,1.677 1.292,1.875 0.615,0.198 10 false THS3 2.229,1.656 2.542,1.854 0.313,0.198 10 false E2

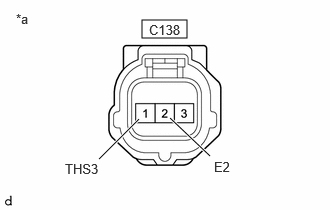

*a	Component without harness connected (Exhaust Gas Temperature Sensor)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Sensor Temperature	Specified Condition
C138-1 (THS3) - C138-2 (E2)	40 to 60°C (104 to 122°F)	42 to 68.5 kΩ

If the result is not as specified, replace the exhaust gas temperature sensor.
