RM38T0EC _51 Engine / Hybrid System _144996 M20F-FXS, M20G-FXS EMISSION CONTROL _0604314 EXHAUST GAS TEMPERATURE SENSOR(for Front) A

M20F-FXS, M20G-FXS EMISSION CONTROL  EXHAUST GAS TEMPERATURE SENSOR(for Front)  REMOVAL


CAUTION / NOTICE / HINT

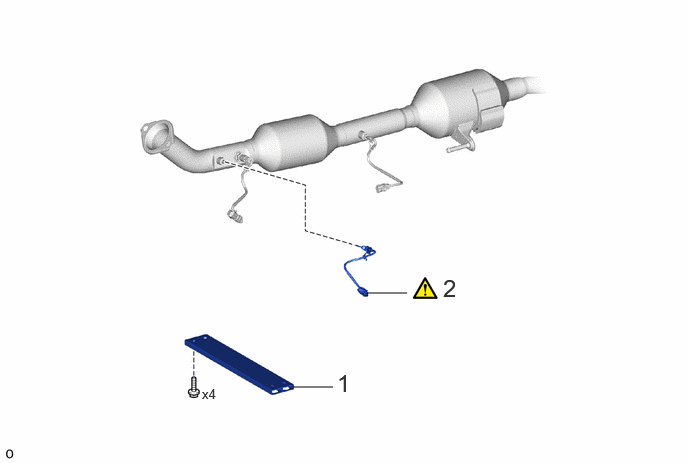

COMPONENTS (REMOVAL)
A545606N01
3.823,3.052 4.24,3.052 false 3.052,4.031 3.469,4.031 false 4.615,2.854 5.167,3.208 0.552,0.354 18 false 2 3.51,3.844 4.063,4.198 0.552,0.354 18 false 1 2.104,4.021 2.417,4.219 0.313,0.198 10 false x4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 FRONT FLOOR CENTER BRACE 5733B - - -
2 EXHAUST GAS TEMPERATURE SENSOR 89425 (Click here) - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the exhaust gas temperature sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedure Effect/Inoperative when not Performed Link
Gas leak from exhaust system is repaired Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

CAUTION:
·
A344784

When the engine is hot, do not touch high-temperature areas such as the engine or exhaust pipe.

·

Touching high-temperature areas such as the engine and exhaust pipe could result in burns.



PROCEDURE

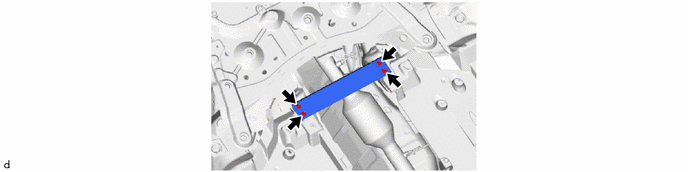

Hide 57533B 1.REMOVE FRONT FLOOR CENTER BRACE

a.
A539071


Hide 89425 2.REMOVE EXHAUST GAS TEMPERATURE SENSOR

Z101186

CAUTION:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.



a.
A545608N01
0.573,0.104 1.24,0.396 0.667,0.292 18 true i, ii, iii

i.

Disconnect the connector.


ii.

Remove the 2 wire harness clamp.


iii.

Using a 14 mm union nut wrench, remove the exhaust gas temperature sensor from the front exhaust pipe assembly.

NOTICE:

If the exhaust gas temperature sensor has been struck or dropped, replace it.
