RM38T0EC _51 Engine / Hybrid System _144996 M20F-FXS, M20G-FXS EMISSION CONTROL _0604315 EXHAUST GAS TEMPERATURE SENSOR(for Rear) A

M20F-FXS, M20G-FXS EMISSION CONTROL  EXHAUST GAS TEMPERATURE SENSOR(for Rear)  REMOVAL


CAUTION / NOTICE / HINT

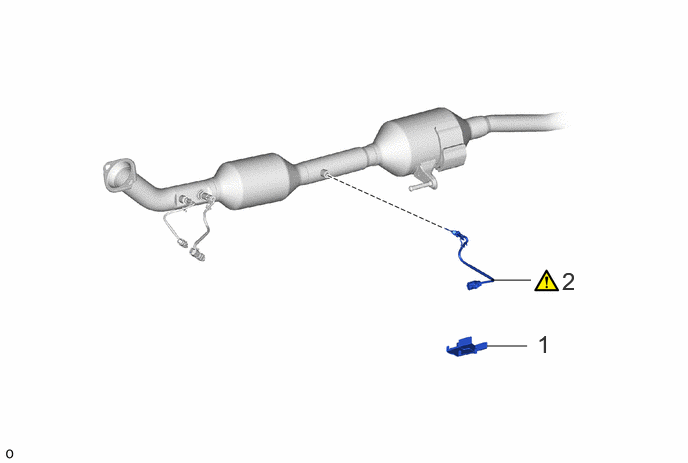

COMPONENTS (REMOVAL)
A545610N01
5.115,2.917 5.531,2.917 false 5.073,3.604 5.49,3.604 false 5.854,2.781 6.406,3.135 0.552,0.354 18 false 2 5.594,3.438 6.146,3.792 0.552,0.354 18 false 1

Procedure Part Name Code
Z101186

Z101188

Z101187

1 COVER - - - -
2 NO. 2 EXHAUST GAS TEMPERATURE SENSOR 89425A (Click here) - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed, installed, or replaced during the No. 2 exhaust gas temperature sensor removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced
Replacement Part or Procedure Necessary Procedure Effect/Inoperative when not Performed Link
Gas leak from No. 2 exhaust system is repaired Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

CAUTION:
·
A344784

When the engine is hot, do not touch high-temperature areas such as the engine or exhaust pipe.

·

Touching high-temperature areas such as the engine and exhaust pipe could result in burns.



PROCEDURE

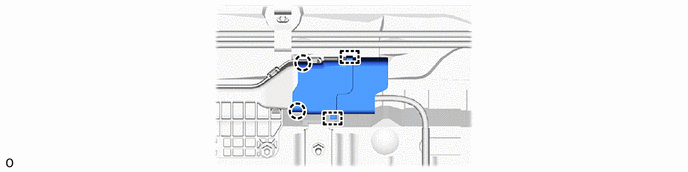

Hide 1.REMOVE COVER

a.
A545612

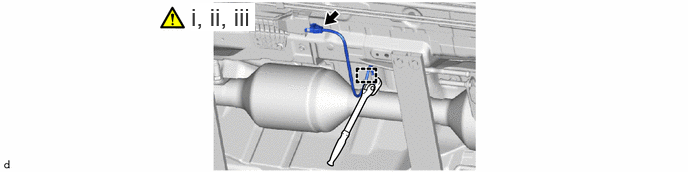

Hide 89425A 2.REMOVE NO. 2 EXHAUST GAS TEMPERATURE SENSOR

Z101186

CAUTION:

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.



a.
A539245N01
1.99,0.031 2.656,0.323 0.667,0.292 18 true i, ii, iii

i.

Disconnect the connector.


ii.

Remove the clamp.


iii.

Using a 14 mm union nut wrench, remove the No. 2 exhaust gas temperature sensor from the front exhaust pipe assembly.

NOTICE:

If the No. 2 exhaust gas temperature sensor has been struck or dropped, replace it.
