RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604217 CAMSHAFT OIL CONTROL SOLENOID A

M20F-FXS, M20G-FXS ENGINE CONTROL CAMSHAFT OIL CONTROL SOLENOID REMOVAL

CAUTION / NOTICE / HINT

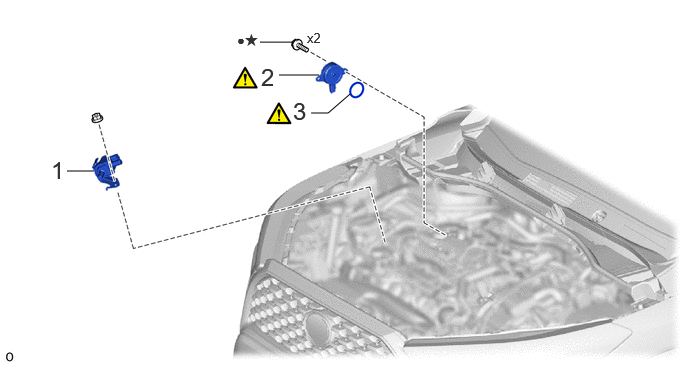

COMPONENTS (REMOVAL)

2.708,0.438 3.042,0.438 false 3.24,1.177 3.417,1.177 3.417,1.177 3.646,0.979 false 2.906,0.781 3.323,0.781 false 0.698,1.781 0.979,1.781 false 3.052,1.01 3.333,1.365 0.281,0.354 18 false 3 2.719,0.656 3,1.01 0.281,0.354 18 false 2 2.469,0.333 2.781,0.531 0.313,0.198 10 false ●★ 3.198,0.313 3.51,0.51 0.313,0.198 10 false x2 0.531,1.625 0.813,1.979 0.281,0.354 18 false 1

Procedure		Part Name Code
1	PURGE VALVE (PURGE VSV)	25860	-	-	-
2	CAM TIMING OIL CONTROL SOLENOID ASSEMBLY	15370	(202307,999999,_51,_144956,_0604217,RM100000002BTI6_01_0009,)	-	-
3	O-RING	-	(202307,999999,_51,_144956,_0604217,RM100000002BTI6_01_0010,)	-	-

●

Non-reusable part

★

Precoated part

CAUTION / NOTICE / HINT

NOTICE:: This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.; Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION202307,999999,_V1,_107171,_0486700,RM100000002CS4V,

PROCEDURE

Hide Display 25860 1.REMOVE PURGE VALVE (PURGE VSV)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (EMISSION CONTROL)>PURGE VALVE>REMOVAL202307,999999,_51,_144996,_0604309,RM100000002BTUT,

Hide Display 15370 2.REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

0.438,0.115 1.813,0.469 1.375,0.354 18 false i, ii

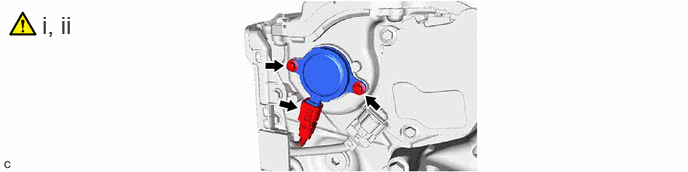

Disconnect the cam timing oil control solenoid assembly connector.

ii.

Using an 8 mm socket wrench, remove the 2 bolts and cam timing oil control solenoid assembly from the No. 2 timing chain cover assembly.

NOTICE:: If the cam timing oil control solenoid assembly has been struck or dropped, replace it.

Hide Display 3.REMOVE O-RING

HINT:: Perform this procedure only when replacement of the O-ring is necessary.

0.417,0.115 0.698,0.469 0.281,0.354 18 false i

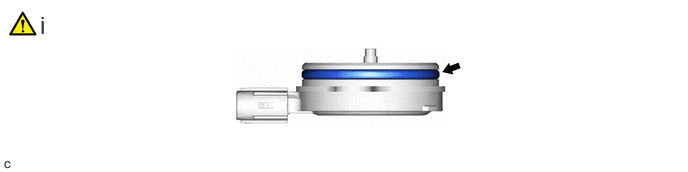

Remove the O-ring from the cam timing oil control solenoid assembly.

NOTICE:: ·

When removing the O-ring, be careful not to damage the O-ring groove of the cam timing oil control solenoid assembly.

·

If the O-ring groove of the cam timing oil control solenoid assembly is damaged, replace the cam timing oil control solenoid assembly with a new one.
