RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604217 CAMSHAFT OIL CONTROL SOLENOID G

M20F-FXS, M20G-FXS ENGINE CONTROL  CAMSHAFT OIL CONTROL SOLENOID  INSPECTION


PROCEDURE

Hide 15370 1.INSPECT CAM TIMING OIL CONTROL SOLENOID ASSEMBLY

a.

Check the resistance.

i.

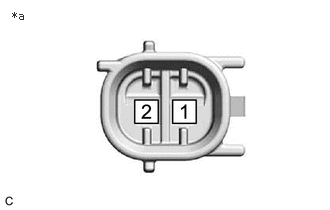

A436353C01
0.122,0.095 0.323,0.262 0.201,0.167 10 *a
*a Component without harness connected
(Cam Timing Oil Control Solenoid Assembly)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 - 2 0 °C (32 °F) 6.3 to 7.3 Ω
20 °C (68 °F) 6.9 to 7.9 Ω
40 °C (104 °F) 7.4 to 8.6 Ω


If the result is not as specified, replace the cam timing oil control solenoid assembly.



b.

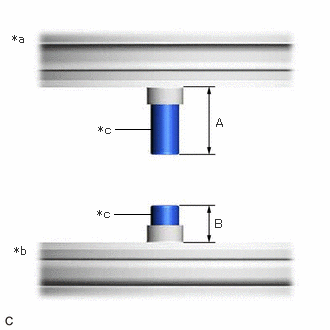

Stroke Amount Inspection

i.
A436356C01
1.198,1.344 1.583,1.344 false 1.188,2.229 1.573,2.229 false 0.125,0.333 0.438,0.49 0.313,0.156 10 false *a 0.146,2.542 0.458,2.698 0.313,0.156 10 false *b 1.021,1.281 1.333,1.438 0.313,0.156 10 false *c 1.01,2.156 1.323,2.313 0.313,0.156 10 false *c 2.25,1.208 2.563,1.365 0.313,0.156 10 false A 2.24,2.26 2.552,2.417 0.313,0.156 10 false B
*a Shaft Side Facing Down
*b Shaft Side Facing Up
*c Shaft


Using vernier calipers, measure length (A) and (B) with the shaft of the cam timing oil control solenoid assembly set in the respective positions shown in the illustration.

NOTICE:

Do not apply auxiliary battery voltage to the terminals of the cam timing oil control solenoid assembly.


HINT:

If the shaft does not extend under its own weight, extend the shaft with your fingers.



ii.

Calculate the stroke amount based on the difference of length (A) and (B).

Standard:

4.3 mm (0.169 in.) or more


HINT:

Stroke amount = length (A) - length (B)


If the value is not as specified, replace the cam timing oil control solenoid assembly.
