RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604216 CAMSHAFT OIL CONTROL VALVE A

M20F-FXS, M20G-FXS ENGINE CONTROL  CAMSHAFT OIL CONTROL VALVE  REMOVAL


CAUTION / NOTICE / HINT

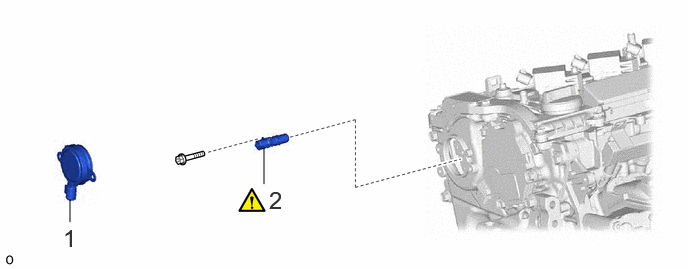

COMPONENTS (REMOVAL)
A524642N02
0.729,2.313 0.729,2.073 false 2.75,1.917 2.75,1.542 false 0.656,2.333 0.938,2.688 0.281,0.354 18 false 1 2.802,1.938 3.083,2.292 0.281,0.354 18 false 2

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CAM TIMING OIL CONTROL SOLENOID ASSEMBLY 15370 - - -
2 CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY) 135A0B (Click here) - -

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 135A0B 2.REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)

a.
A524643C01
3.844,0.729 4.135,0.458 true 3.708,1.146 4.01,1.396 true 5.75,0.99 6.083,1.135 true 5.063,1.135 5.396,1.281 true 4.198,0.313 4.458,0.51 0.26,0.198 10 true *a 4.042,1.417 4.302,1.615 0.26,0.198 10 true *a 6.135,1.094 6.396,1.292 0.26,0.198 10 true *1 5.427,1.208 5.688,1.406 0.26,0.198 10 true *2 0.365,0.021 0.833,0.365 0.469,0.344 18 false i, ii

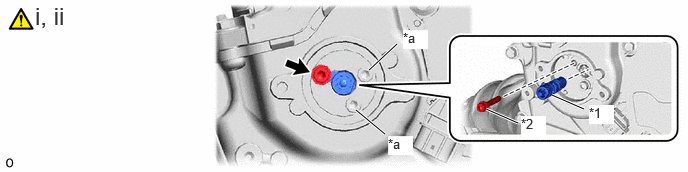

*1 Camshaft Timing Oil Control Valve Assembly (Exhaust Camshaft Timing Gear Bolt Assembly) *2 Bolt
*a Do not remove - -


i.

Using a 5 mm hexagon socket wrench, remove the bolt.

NOTICE:

Do not remove the other 2 bolts.


HINT:

If it is difficult to loosen the bolt due to the tools contacting the vehicle body or other parts, rotate the crankshaft to move the bolt to a position where it can be removed easily.



ii.

Remove the camshaft timing oil control valve assembly (exhaust camshaft timing gear bolt assembly) from the camshaft timing exhaust gear assembly.
