RM38T0EC _51 Engine / Hybrid System _144959 M20F-FXS, M20G-FXS FUEL _0604268 FUEL PRESSURE SENSOR A

M20F-FXS, M20G-FXS FUEL  FUEL PRESSURE SENSOR  REMOVAL


CAUTION / NOTICE / HINT

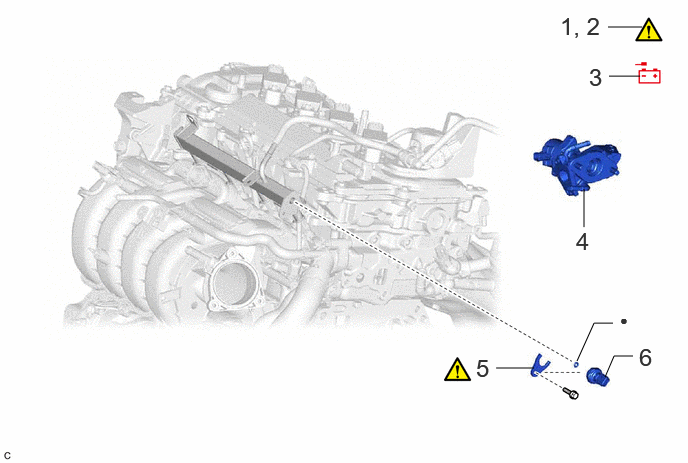

COMPONENTS (REMOVAL)
A498504N01
6.083,2.365 6.083,1.969 false 5.167,3.833 5.563,3.833 false 6.01,3.76 6.188,3.365 6.188,3.365 6.385,3.365 false 6.302,3.927 6.396,3.708 6.396,3.708 6.594,3.708 false 6.333,0.281 6.688,0.281 false 6.344,0.792 6.667,0.792 false 6,2.365 6.281,2.719 0.281,0.354 18 false 4 4.958,3.688 5.24,4.042 0.281,0.354 18 false 5 6.458,3.25 6.896,3.49 0.438,0.24 10 false 6.656,3.573 6.938,3.927 0.281,0.354 18 false 6 5.833,0.125 6.323,0.438 0.49,0.313 18 false 1, 2 6.135,0.656 6.417,1.01 0.281,0.354 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 PRECAUTION - (Click here) - -
2 DISCHARGE FUEL SYSTEM PRESSURE - (Click here) - -
3 DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL - - - -
4 EGR VALVE ASSEMBLY 25620 - - -
5 NO. 2 FUEL PRESSURE SENSOR HOLDER 23851A (Click here) - -
6 NO. 2 FUEL PRESSURE SENSOR 89458H - - -

Non-reusable part - -

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during No. 2 fuel pressure sensor removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Replacement of No. 2 fuel pressure sensor Inspection after repair
·

Poor idle, etc.

·

Engine start function, etc.


(Click here)

CAUTION:
·
A360563

Never perform work on fuel system components near any possible ignition sources.

·

Vaporized fuel could ignite, resulting in a serious accident.


·
A360564

Do not perform work on fuel system components without first disconnecting the cable from the negative (-) auxiliary battery terminal.

·

Sparks could cause vaporized fuel to ignite, resulting in a serious accident.



NOTICE:
·

After the ignition switch is turned off, the radio and display receiver assembly records various types of memory and settings. As a result, after turning the ignition switch off, make sure to wait at least 120 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal.

·

This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION



HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front Camera System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 1. PRECAUTION

Z101186

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here(Click here)



Hide 23851A 5.REMOVE NO. 2 FUEL PRESSURE SENSOR HOLDER

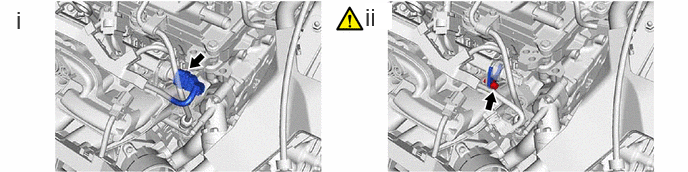

a.
A498506N01
0.167,0.063 0.448,0.417 0.281,0.354 18 false i 3.802,0.031 4.083,0.302 0.281,0.271 18 true ii

i.

Disconnect the No. 2 fuel pressure sensor connector.


ii.

Using an 8 mm socket wrench, remove the bolt and No. 2 fuel pressure sensor holder from the fuel delivery pipe sub-assembly.



Hide 89458H 6.REMOVE NO. 2 FUEL PRESSURE SENSOR

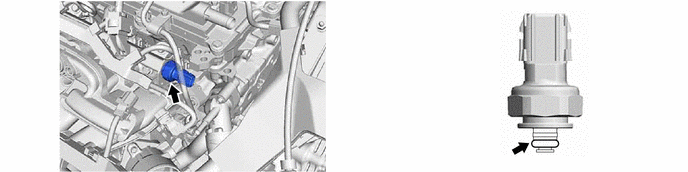

a.
A498507
