MAINTENANCE M20F-FXS, M20G-FXS AUXILIARY BATTERY REMOVAL

CAUTION / NOTICE / HINT

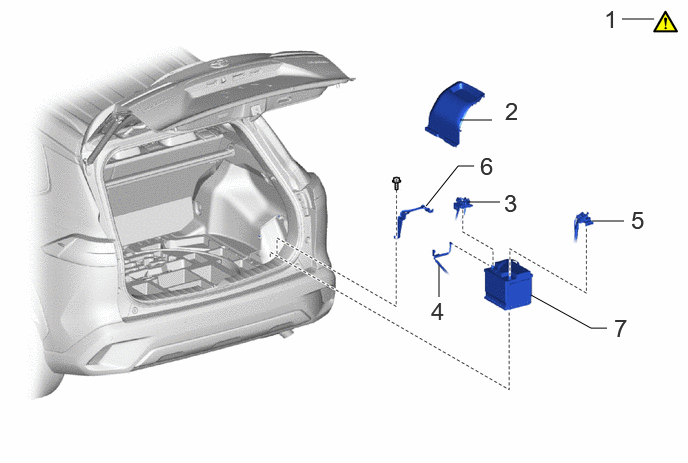

COMPONENTS (REMOVAL)

6.479,0.198 6.813,0.198 false 4.792,1.25 5.125,1.25 false 6.167,2.302 6.5,2.302 false 4.875,2.104 5.208,2.104 false 4.438,2.146 4.771,1.729 4.771,1.729 4.938,1.729 false 5.531,3.073 6.156,3.417 6.156,3.417 6.323,3.417 false 4.573,3.094 4.573,2.76 false 6.292,0.052 6.573,0.406 0.281,0.354 18 false 1 5.26,1.01 5.542,1.365 0.281,0.354 18 false 2 6.573,2.146 6.854,2.5 0.281,0.354 18 false 5 6.396,3.271 6.677,3.625 0.281,0.354 18 false 7 4.49,3.094 4.771,3.448 0.281,0.354 18 false 4 5.25,1.969 5.531,2.323 0.281,0.354 18 false 3 5,1.583 5.281,1.938 0.281,0.354 18 false 6

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_V1,_104397,_0604345,RM100000002BTXA_05_0011,)	-	-

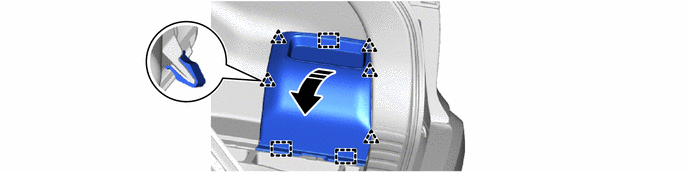

2	BATTERY HOLE COVER	-	-	-	-

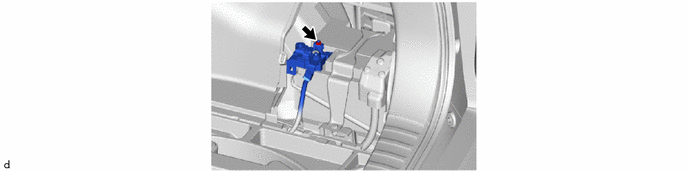

3	DISCONNECT NEGATIVE AUXILIARY BATTERY TERMINAL	-	-	-	-

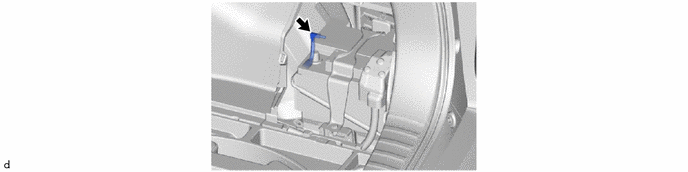

4	BATTERY HOSE	-	-	-	-

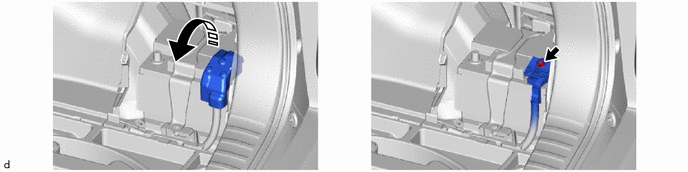

5	DISCONNECT POSITIVE AUXILIARY BATTERY TERMINAL	-	-	-	-

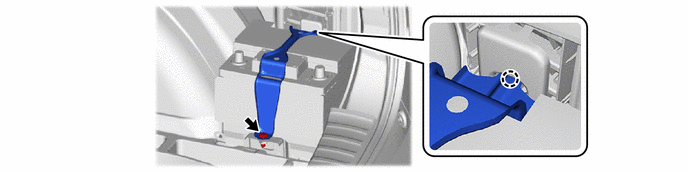

6	BATTERY CLAMP	74482	-	-	-

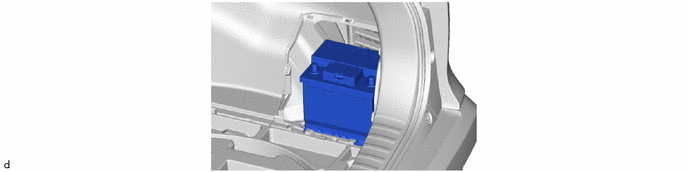

7	AUXILIARY BATTERY	-	-	-	-

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during auxiliary battery removal/installation are shown below.

HINT:

When the cable is disconnected/reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Front Camera System	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(202307,999999,_95,_112293,_0586709,RM100000002BSVY,)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power door lock control system · Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	(202201,999999,_58,_115226,_0510939,RM1000000020BSY,)
Power back door system	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202201,999999,_59,_113746,_0504731,RM100000001ZJKP,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

PROCEDURE

Hide Display 1. PRECAUTION

NOTICE:: ·

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal.

Click here(202307,999999,_V1,_106911,_0485800,RM100000002CEKY,)

·

When replacing the auxiliary battery, use a new auxiliary battery of the same dimensions and same capacity or more from the same class at a 20-hour rate.
