PB10 HYBRID TRANSMISSION / TRANSAXLE  INPUT SHAFT OIL SEAL  REPLACEMENT


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during input shaft type T oil seal removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced
Replaced Part or Performed Procedure Necessary Procedure Effect/Inoperative Function when Necessary Procedure not Performed Link
Front wheel alignment adjustment Calibration
·

DTCs are stored

·

ABS warning light illuminates

·

Slip indicator light illuminates

·

VSC disabled or malfunctions


(Click here)
Suspension, tires, etc. Parking assist ECU initialization Panoramic view monitor system (Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Front camera system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)

·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power door lock control system
·

Back door opener


Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. (Click here)
Power back door system Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized. -



PROCEDURE

Hide 35710A 2.REMOVE INPUT SHAFT TYPE T OIL SEAL

a.

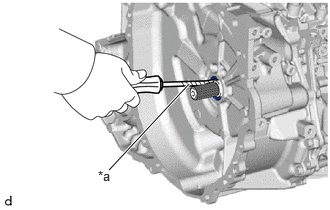

C498780C01
1.135,1.771 1.969,0.875 true 1.021,1.75 1.333,1.948 0.313,0.198 10 false *a
*a Protective Tape


Using a screwdriver with its tip wrapped with protective tape, remove the input shaft type T oil seal from the hybrid vehicle transaxle assembly.

NOTICE:

Be careful not to damage the input shaft assembly or hybrid vehicle transaxle assembly.



Hide 35710A 3.INSTALL INPUT SHAFT TYPE T OIL SEAL

a.

Coat the lip of a new input shaft type T oil seal with a small amount of MP grease.


b.

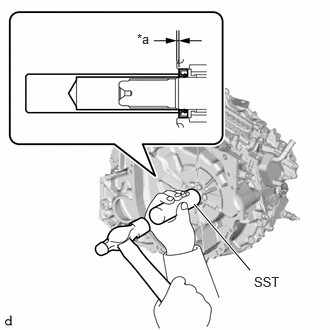

C498781C01
2.604,2.813 2.021,2.125 true 1.427,0.323 1.708,0.552 0.281,0.229 10 false *a 2.646,2.854 3.104,3.052 0.458,0.198 10 false SST
*a Depth


Using SST and a hammer, install the input shaft type T oil seal to the hybrid vehicle transaxle assembly.

SST
09608-04031

Standard Depth:

3.3 to 4.1 mm (0.130 to 0.161 in.)


NOTICE:
·

Do not allow foreign matter to attach to the lip of the input shaft type T oil seal.

·

Do not install the input shaft type T oil seal at an angle.
