RM38T0EC _95 ADAS / AD _112293 ADVANCED DRIVER ASSISTANCE SYSTEM _0586709 FRONT CAMERA SYSTEM(Production Date from 2023/04) C

ADVANCED DRIVER ASSISTANCE SYSTEM  FRONT CAMERA SYSTEM(Production Date from 2023/04)  C00CA11  Camera "A" Heater Control Circuit Short to Ground


DESCRIPTION

Forward recognition camera controls the current to the windshield glass (heater). Forward recognition camera stores DTC C00CA11 when it detects a malfunction in the drive circuit of the windshield glass (heater).

DTC No. Detection Item DTC Detection Condition Trouble Area DTC Output from
C00CA11 Camera "A" Heater Control Circuit Short to Ground A short is detected in the heater circuit of the forward recognition camera
·

Windshield glass

·

Forward recognition camera

·

Harness or connector


Front Recognition Camera

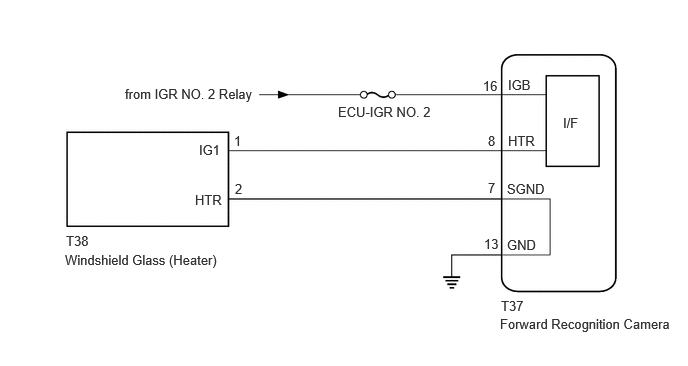

WIRING DIAGRAM

E476919E32
0.677,2.625 2.688,3.01 2.01,0.385 10 false Windshield Glass (Heater) 0.688,2.427 1,2.625 0.313,0.198 10 false T38 2.031,2 2.531,2.302 0.5,0.302 10 false HTR 2.073,1.479 2.552,1.771 0.479,0.292 10 false IG1 1.302,0.896 2.781,1.167 1.479,0.271 10 false from IGR NO. 2 Relay 3.521,1.083 4.521,1.292 1,0.208 10 false ECU-IGR NO. 2 5.865,1.198 6.177,1.396 0.313,0.198 10 false I/F 5.208,3.292 7.052,3.667 1.844,0.375 10 false Forward Recognition Camera 5.219,3.104 5.604,3.323 0.385,0.219 10 false T37 5.292,0.802 5.604,1 0.313,0.198 10 false IGB 5.292,1.385 5.625,1.583 0.333,0.198 10 false HTR 5.281,1.885 5.802,2.083 0.521,0.198 10 false SGND 5.281,2.469 5.635,2.667 0.354,0.198 10 false GND 2.438,1.385 2.594,1.625 0.156,0.24 10 false 1 2.448,1.885 2.604,2.125 0.156,0.24 10 false 2 5.031,0.813 5.25,1.052 0.219,0.24 10 false 16 5.083,1.385 5.24,1.625 0.156,0.24 10 false 8 5.083,1.875 5.24,2.115 0.156,0.24 10 false 7 5.042,2.458 5.26,2.698 0.219,0.24 10 false 13

CAUTION / NOTICE / HINT

CAUTION:

To prevent burns due to the heat of the windshield glass (heater), do not touch the area directly.


NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

When replacing the forward recognition camera, always replace it with a new one. If a forward recognition camera which was installed to another vehicle is used, the information stored in the forward recognition camera will not match the information from the vehicle and a DTC may be stored.

·

When the forward recognition camera has been replaced with a new one, make sure to clear all stored vehicle control history of each system and the forward recognition camera beam axis alignment data.

HINT:

Forward recognition camera beam axis alignment can be performed by using "One Time Recognition", "Driving Adjustment" or "Camera Axis Adjustment Value Write".

One Time Recognition: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (Production Date from 2023/04)>TARGET ADJUSTMENT(ONE TIME RECOGNITION)

Driving Adjustment: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (Production Date from 2023/04)>DRIVING ADJUSTMENT

Camera Axis Adjustment Value Write: Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (Production Date from 2023/04)>CAMERA AXIS ADJUSTMENT VALUE WRITE


·

If the forward recognition camera has been replaced with a new one, make sure to perform Software Version Confirmation.

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>UTILITY (Production Date from 2023/04)>SOFTWARE VERSION CONFIRMATION



PROCEDURE

1.CLEAR DTC
a.

Clear the DTCs.

Chassis > Front Recognition Camera > Clear DTCs
50002 498

Result:
Proceed to
NEXT



NEXT

2.CHECK FOR DTCs
2.CHECK FOR DTCs
a.

Make sure that the DTC detection conditions are met.

HINT:

If the detection conditions are not met, the system cannot detect the malfunction.



b.

Check for DTCs.

Chassis > Front Recognition Camera > Trouble Codes
50001 498

Result:
Result Proceed to
DTC C00CA11 is not output A
DTC C00CA11 is output B



A

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


B

3.CLEAR DTC
3.CLEAR DTC
a.

Disconnect the T38 windshield glass (heater) connector.


b.

Clear the DTCs.

Chassis > Front Recognition Camera > Clear DTCs
50002 498

Result:
Proceed to
NEXT



NEXT

4.CHECK WINDSHIELD GLASS (HEATER)
4.CHECK WINDSHIELD GLASS (HEATER)
a.

Make sure that the DTC detection conditions are met.

HINT:

If the detection conditions are not met, the system cannot detect the malfunction.



b.

Check for DTCs.

Chassis > Front Recognition Camera > Trouble Codes
50001 498

Result:
Result Proceed to
DTC C00CA11 is not output A
DTC C00CA11 is output B



A

REPLACE WINDSHIELD GLASS (HEATER)

Click hereVehicle Exterior>WINDOW / GLASS>WINDSHIELD GLASS>REMOVAL


B

5.CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION CAMERA - WINDSHIELD GLASS (HEATER))
5.CHECK HARNESS AND CONNECTOR (FORWARD RECOGNITION CAMERA - WINDSHIELD GLASS (HEATER))
a.

Disconnect the T37 forward recognition camera connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
T37-8 (HTR) or T38-1 (IG1) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

REPLACE FORWARD RECOGNITION CAMERA

Click hereADAS / AD>ADVANCED DRIVER ASSISTANCE SYSTEM>FRONT CAMERA (Production Date from 2023/04)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
