RM36D0EC _57 Power Source / Network _083091 NETWORKING _0694851 LIN COMMUNICATION SYSTEM(for SFTM Made) C

NETWORKING  LIN COMMUNICATION SYSTEM(for SFTM Made)  B120687  P/W Master SW System Missing Message  B127387  Sliding Roof System Missing Message  B232187  D-Door P/W System Missing Message  B232287  P-Door P/W System Missing Message  B232387  RR-Door P/W System Missing Message  B232487  RL-Door P/W System Missing Message


DESCRIPTION

This DTC is stored when LIN communication between the main body ECU (multiplex network body ECU) and multiplex network master switch assembly, front power window regulator motor assembly LH, front power window regulator motor assembly RH, rear power window regulator motor assembly RH, rear power window regulator motor assembly LH or sliding roof ECU (sliding roof drive gear assembly)* stops for 10 seconds or more.

*: w/ Sliding Roof System, Panoramic Moon Roof System


DTC No. Detection Item DTC Detection Condition Trouble Area
B120687 P/W Master SW System Missing Message No communication between multiplex network master switch assembly and main body ECU (multiplex network body ECU) for 10 seconds or more.
·

Main body ECU (multiplex network body ECU)

·

Power distribution box assembly

·

Multiplex network master switch assembly

·

Harness or connector


B127387 Sliding Roof System Missing Message No communication between sliding roof ECU (sliding roof drive gear assembly) and main body ECU (multiplex network body ECU) for 10 seconds or more.
·

Main body ECU (multiplex network body ECU)

·

Power distribution box assembly

·

Sliding roof ECU (sliding roof drive gear assembly) (w/ Sliding Roof System, Panoramic Moon Roof System)

·

Harness or connector


B232187 D-Door P/W System Missing Message No communication between front power window regulator motor assembly LH and main body ECU (multiplex network body ECU) for 10 seconds or more.
·

Main body ECU (multiplex network body ECU)

·

Power distribution box assembly

·

Multiplex network master switch assembly

·

Front power window regulator motor assembly LH

·

Harness or connector


B232287 P-Door P/W System Missing Message No communication between front power window regulator motor assembly RH and main body ECU (multiplex network body ECU) for 10 seconds or more.
·

Main body ECU (multiplex network body ECU)

·

Power distribution box assembly

·

Front power window regulator motor assembly RH

·

Harness or connector


B232387 RR-Door P/W System Missing Message No communication between rear power window regulator motor assembly RH and main body ECU (multiplex network body ECU) for 10 seconds or more.
·

Main body ECU (multiplex network body ECU)

·

Power distribution box assembly

·

Rear power window regulator motor assembly RH

·

Harness or connector


B232487 RL-Door P/W System Missing Message No communication between rear power window regulator motor assembly LH and main body ECU (multiplex network body ECU) for 10 seconds or more.
·

Main body ECU (multiplex network body ECU)

·

Power distribution box assembly

·

Rear power window regulator motor assembly LH

·

Harness or connector

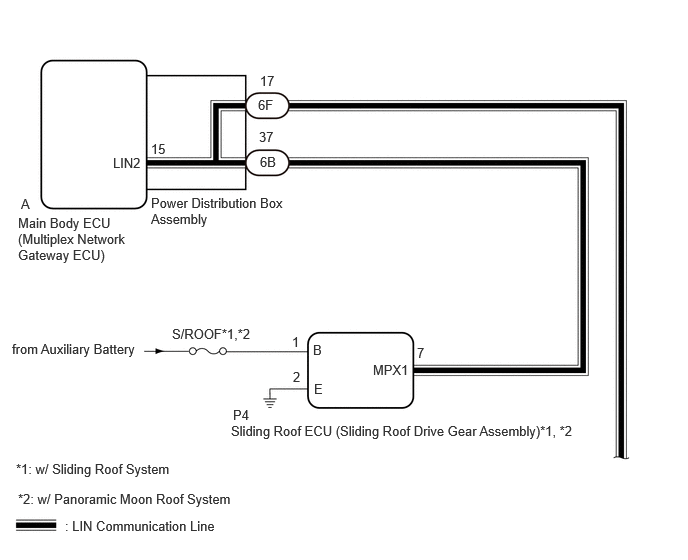

WIRING DIAGRAM

C407703E04
0.219,2.042 0.417,2.24 0.198,0.198 10 false A 0.188,2.24 1.417,2.802 1.229,0.563 10 false Main Body ECU (Multiplex Network Gateway ECU) 1.177,1.615 1.563,1.813 0.385,0.198 10 false LIN2 2.708,1.604 3.094,1.802 0.385,0.198 10 false 6B 2.688,1.01 3.073,1.208 0.385,0.198 10 false 6F 2.698,1.344 3.083,1.542 0.385,0.198 10 false 37 2.708,0.76 3.094,0.958 0.385,0.198 10 false 17 1.573,2.031 3.01,2.667 1.438,0.635 10 false Power Distribution Box Assembly 2.406,4.406 6.083,4.813 3.677,0.406 10 false Sliding Roof ECU (Sliding Roof Drive Gear Assembly)*1, *2 2.427,4.24 2.813,4.438 0.385,0.198 10 false P4 3.271,3.969 3.656,4.167 0.385,0.198 10 false E 3.26,3.563 3.646,3.76 0.385,0.198 10 false B 3.885,3.771 4.271,3.969 0.385,0.198 10 false MPX1 4.344,3.594 4.729,3.792 0.385,0.198 10 false 7 3.042,3.479 3.427,3.677 0.385,0.198 10 false 1 3.052,3.844 3.438,4.042 0.385,0.198 10 false 2 1.792,3.396 2.708,3.635 0.917,0.24 10 false S/ROOF*1,*2 0.125,3.552 1.583,3.927 1.458,0.375 10 false from Auxiliary Battery 0.677,5.396 2.875,5.729 2.198,0.333 10 false : LIN Communication Line 0.167,4.802 2.365,5.135 2.198,0.333 10 false *1: w/ Sliding Roof System 0.188,5.115 2.646,5.469 2.458,0.354 10 false *2: w/ Panoramic Moon Roof System 1.573,1.469 1.958,1.667 0.385,0.198 10 false 15

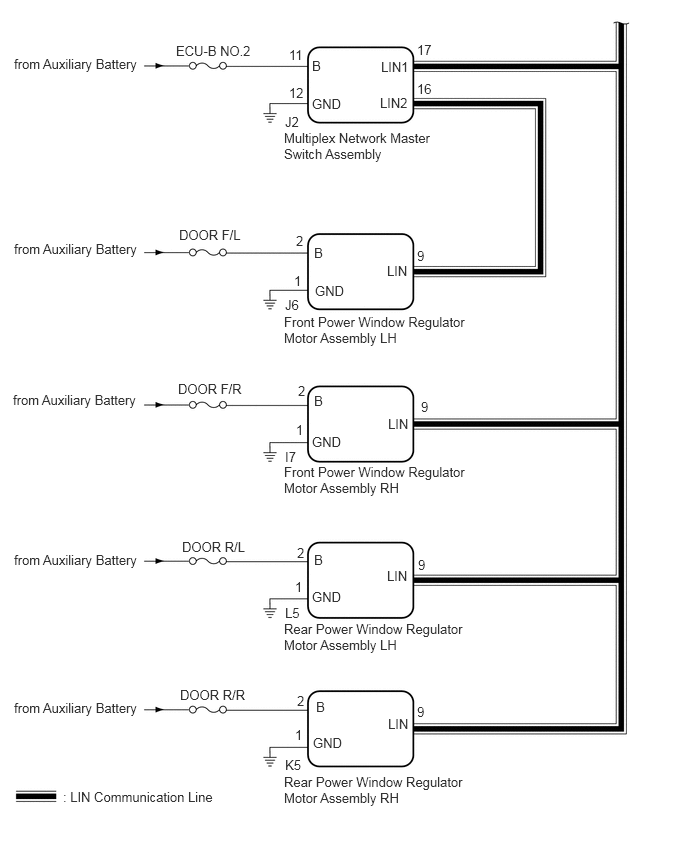

C407699E06
2.969,1.188 3.26,1.406 0.292,0.219 10 false J2 2.958,1.354 4.583,1.771 1.625,0.417 10 false Multiplex Network Master Switch Assembly 3.969,0.615 4.323,0.844 0.354,0.229 10 false LIN1 3.958,0.99 4.313,1.219 0.354,0.229 10 false LIN2 4.344,0.844 4.698,1.073 0.354,0.229 10 false 16 4.344,0.438 4.698,0.667 0.354,0.229 10 false 17 3.25,1 3.604,1.229 0.354,0.229 10 false GND 3.25,0.604 3.74,0.833 0.49,0.229 10 false B 3.01,0.49 3.365,0.719 0.354,0.229 10 false 11 3.01,0.885 3.365,1.115 0.354,0.229 10 false 12 1.833,0.448 2.698,0.698 0.865,0.25 10 false ECU-B NO.2 0.146,0.583 1.531,0.865 1.385,0.281 10 false from Auxiliary Battery 0.146,2.51 1.531,2.792 1.385,0.281 10 false from Auxiliary Battery 1.865,2.365 2.729,2.615 0.865,0.25 10 false DOOR F/L 2.969,3.094 3.26,3.313 0.292,0.219 10 false J6 2.958,3.271 4.927,3.656 1.969,0.385 10 false Front Power Window Regulator Motor Assembly LH 4.031,2.74 4.385,2.969 0.354,0.229 10 false LIN 4.344,2.583 4.698,2.813 0.354,0.229 10 false 9 3.281,2.948 3.635,3.177 0.354,0.229 10 false GND 3.063,2.844 3.417,3.073 0.354,0.229 10 false 1 3.271,2.552 3.625,2.781 0.354,0.229 10 false B 3.083,2.427 3.438,2.656 0.354,0.229 10 false 2 0.135,4.083 1.521,4.365 1.385,0.281 10 false from Auxiliary Battery 1.854,3.969 2.719,4.219 0.865,0.25 10 false DOOR F/R 3.25,4.521 3.604,4.75 0.354,0.229 10 false GND 3.083,4.396 3.438,4.625 0.354,0.229 10 false 1 3.271,4.094 3.625,4.323 0.354,0.229 10 false B 3.104,3.99 3.458,4.219 0.354,0.229 10 false 2 4.042,4.333 4.396,4.563 0.354,0.229 10 false LIN 4.385,4.156 4.74,4.385 0.354,0.229 10 false 9 2.958,4.833 4.927,5.219 1.969,0.385 10 false Front Power Window Regulator Motor Assembly RH 2.969,4.677 3.26,4.896 0.292,0.219 10 false I7 2.958,6.469 4.927,6.854 1.969,0.385 10 false Rear Power Window Regulator Motor Assembly LH 2.969,6.302 3.26,6.521 0.292,0.219 10 false L5 3.25,6.135 3.604,6.365 0.354,0.229 10 false GND 3.271,5.75 3.625,5.979 0.354,0.229 10 false B 3.094,5.677 3.448,5.906 0.354,0.229 10 false 2 4.031,5.917 4.385,6.146 0.354,0.229 10 false LIN 4.354,5.802 4.708,6.031 0.354,0.229 10 false 9 1.896,5.615 2.76,5.865 0.865,0.25 10 false DOOR R/L 0.146,5.75 1.531,6.031 1.385,0.281 10 false from Auxiliary Battery 3.073,6.031 3.427,6.26 0.354,0.229 10 false 1 0.146,7.292 1.531,7.573 1.385,0.281 10 false from Auxiliary Battery 1.875,7.156 2.74,7.406 0.865,0.25 10 false DOOR R/R 2.969,7.885 3.26,8.104 0.292,0.219 10 false K5 2.958,8.063 4.927,8.448 1.969,0.385 10 false Rear Power Window Regulator Motor Assembly RH 4.042,7.458 4.396,7.688 0.354,0.229 10 false LIN 4.344,7.333 4.698,7.563 0.354,0.229 10 false 9 3.26,7.656 3.615,7.885 0.354,0.229 10 false GND 3.073,7.573 3.427,7.802 0.354,0.229 10 false 1 3.292,7.281 3.646,7.51 0.354,0.229 10 false B 3.094,7.219 3.448,7.448 0.354,0.229 10 false 2 0.656,8.219 2.51,8.51 1.854,0.292 10 false : LIN Communication Line

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE



PROCEDURE

1.CHECK FOR DTC
a.

Clear the DTCs.

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for SFTM Made)>DTC CHECK / CLEAR

Body Electrical > Main Body > Clear DTCs
50002 449

b.

Check for DTCs.

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for SFTM Made)>DTC CHECK / CLEAR

Body Electrical > Main Body > Trouble Codes
50001 449

Result:
Result Proceed to

*: w/ Sliding Roof System, Panoramic Moon Roof System

DTC B235288 is output A
DTC B120687, B127387*, B232187, B232287, B232387 and B232487 are all output B
Within DTC B120687, B127387*, B232187, B232287, B232387 and B232487, one or more DTCs are output C
DTC is not output D



A

GO TO DTC CHART (B232588)

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for SFTM Made)>B278588


B

2.INSPECT POWER DISTRIBUTION BOX ASSEMBLY

C

3.CHECK FOR DTC

D

USE SIMULATION METHOD TO CHECK

Click hereGeneral>INTRODUCTION>HOW TO TROUBLESHOOT ECU CONTROLLED SYSTEMS>HOW TO PROCEED WITH TROUBLESHOOTING


2.INSPECT POWER DISTRIBUTION BOX ASSEMBLY
a.

Remove the power distribution box assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL

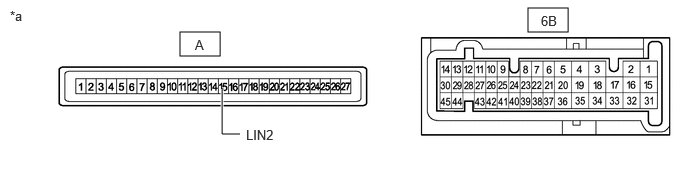

C435656C14
1.875,0.333 2.292,0.583 0.417,0.25 5.5,0.083 5.917,0.333 0.417,0.25 2.5,1.396 2.313,1.396 2.313,1.396 2.313,0.927 true 0.104,0.083 0.417,0.24 0.313,0.156 10 false *a 2.031,0.385 2.344,0.542 0.313,0.156 10 false A 5.635,0.135 5.948,0.292 0.313,0.156 10 false 6B 2.563,1.323 2.979,1.5 0.417,0.177 10 false LIN2
*a Component without harness connected
(Power Distribution Box Assembly) 		- -



b.

Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6B-37 - A-15 (LIN2) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

REPLACE POWER DISTRIBUTION BOX ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


3.CHECK FOR DTC
a.

Check for DTCs.

Click herePower Source / Network>NETWORKING>LIN COMMUNICATION SYSTEM (for SFTM Made)>DTC CHECK / CLEAR

Body Electrical > Main Body > Trouble Codes
50001 449

Result:
Result Proceed to

*: w/ Sliding Roof System, Panoramic Moon Roof System

DTCs B120687, B232187, B232287, B232387 and B232487 are output A
DTCs B120687 and B232187 are output B
Only DTC B120687 is output C
Only DTC B127387 is output* D
Only DTC B232187 is output E
Only DTC B232287 is output F
Only DTC B232387 is output G
Only DTC B232487 is output H



A

4.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY)

B

5.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY)

C

6.CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY POWER SOURCE CIRCUIT)

D

7.INSPECT POWER DISTRIBUTION BOX ASSEMBLY

E

10.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)

F

13.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)

G

15.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)

H

17.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)
4.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY)
a.

Disconnect the 6F power distribution box assembly connector.


b.

Disconnect the J2 multiplex network master switch assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6F-17 - J2-17 (LIN1) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE POWER DISTRIBUTION BOX ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

5.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY)
a.

Disconnect the 6F power distribution box assembly connector.


b.

Disconnect the J2 multiplex network master switch assembly connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6F-17 - J2-17 (LIN1) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW MASTER SWITCH>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

6.CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY POWER SOURCE CIRCUIT)
a.

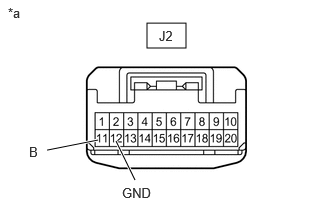

B301113C39
1.531,0.24 1.938,0.5 0.406,0.26 0.49,1.563 1.021,1.458 true 1.406,1.875 1.208,1.469 true 0.302,1.5 0.458,1.698 0.156,0.198 10 false B 1.271,1.927 1.688,2.146 0.417,0.219 10 false GND 0.083,0.052 0.396,0.25 0.313,0.198 10 false *a 1.656,0.292 1.99,0.49 0.333,0.198 10 false J2
*a Front view of wire harness connector
(to Multiplex Network Master Switch Assembly)


Disconnect the multiplex network master switch assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
J2-11 (B) - Body ground Ignition switch off 11 to 14 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
J2-12 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW MASTER SWITCH>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.INSPECT POWER DISTRIBUTION BOX ASSEMBLY
a.

Remove the power distribution box assembly.

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL

C435656C14
1.875,0.333 2.292,0.583 0.417,0.25 5.5,0.083 5.917,0.333 0.417,0.25 2.5,1.396 2.313,1.396 2.313,1.396 2.313,0.927 true 0.104,0.083 0.417,0.24 0.313,0.156 10 false *a 2.031,0.385 2.344,0.542 0.313,0.156 10 false A 5.635,0.135 5.948,0.292 0.313,0.156 10 false 6B 2.563,1.323 2.979,1.5 0.417,0.177 10 false LIN2
*a Component without harness connected
(Power Distribution Box Assembly) 		- -



b.

Remove the main body ECU (multiplex network body ECU) from the power distribution box assembly.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6B-37 - A-15 (LIN2) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

8.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY))

NG

REPLACE POWER DISTRIBUTION BOX ASSEMBLY

Click herePower Source / Network>POWER DISTRIBUTION>MAIN BODY ECU>REMOVAL


8.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY))
a.

Disconnect the 6B power distribution box assembly connector.


b.

Disconnect the P4 sliding roof ECU (sliding roof drive gear assembly) connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6B-37 - P4-7 (MPX1) Always Below 1 Ω



Result:
Proceed to
OK
NG



NG

9.CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU [SLIDING ROOF DRIVE GEAR ASSEMBLY] POWER SOURCE CIRCUIT)

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.CHECK HARNESS AND CONNECTOR (SLIDING ROOF ECU [SLIDING ROOF DRIVE GEAR ASSEMBLY] POWER SOURCE CIRCUIT)
a.
C391574C02
1.49,0.125 1.906,0.354 0.417,0.229 0.833,0.583 1,0.583 1,0.583 1.49,0.969 true 2.406,0.51 2.24,0.51 2.24,0.51 1.948,0.969 true 0.083,0.083 0.396,0.281 0.313,0.198 10 false *a 0.719,0.521 1.031,0.719 0.313,0.198 10 false B 2.479,0.458 2.792,0.656 0.313,0.198 10 false E 1.594,0.156 1.906,0.354 0.313,0.198 10 false P4
*a Front view of wire harness connector
(to Sliding Roof ECU [Sliding Roof Drive Gear Assembly])


Disconnect the sliding roof ECU (sliding roof drive gear assembly) connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
P4-1 (B) - Body ground Ignition switch off 11 to 14 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
P4-2 (E) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE SLIDING ROOF ECU (SLIDING ROOF DRIVE GEAR ASSEMBLY)

w/ Panoramic Moon Roof System: Click hereVehicle Exterior>SLIDING ROOF / CONVERTIBLE>SLIDING ROOF HOUSING (for Panoramic Moon Roof)>REMOVAL

w/ Sliding Roof System: Click hereVehicle Exterior>SLIDING ROOF / CONVERTIBLE>SLIDING ROOF HOUSING (for Moon Roof)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

10.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)
a.

Disconnect the 6F power distribution box assembly connector.


b.

Disconnect the J6 front power window regulator motor assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6F-17 - J6-9 (LIN) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

11.CHECK HARNESS AND CONNECTOR (FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH POWER SOURCE CIRCUIT)

NG

12.CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)
11.CHECK HARNESS AND CONNECTOR (FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH POWER SOURCE CIRCUIT)
a.
B301170C67
1.552,0.188 1.896,0.427 0.344,0.24 1.021,1.417 1.521,1.146 true 2.458,1.396 1.917,1.146 true 0.104,0.063 0.417,0.26 0.313,0.198 10 false *a 2.563,1.344 2.719,1.542 0.156,0.198 10 false B 0.635,1.344 1.125,1.552 0.49,0.208 10 false GND 1.646,0.229 1.958,0.427 0.313,0.198 10 false J6
*a Front view of wire harness connector
(to Front Power Window Regulator Motor Assembly LH)


Disconnect the front power window regulator motor assembly LH connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
J6-2 (B) - Body ground Ignition switch off 11 to 14 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
J6-1 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Front Door)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

12.CHECK HARNESS AND CONNECTOR (MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)
a.

Disconnect the J2 multiplex network master switch assembly connector.


b.

Disconnect the J6 front power window regulator motor assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
J2-16 (LIN2) - J6-9 (LIN) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW MASTER SWITCH>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

13.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)
a.

Disconnect the 6F power distribution box assembly connector.


b.

Disconnect the I7 front power window regulator motor assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6F-17 - I7-9 (LIN) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

14.CHECK HARNESS AND CONNECTOR (FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

14.CHECK HARNESS AND CONNECTOR (FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH POWER SOURCE CIRCUIT)
a.
B301170C66
1.552,0.188 1.896,0.427 0.344,0.24 1.021,1.417 1.521,1.146 true 2.458,1.396 1.917,1.146 true 0.104,0.063 0.417,0.26 0.313,0.198 10 false *a 2.563,1.344 2.719,1.542 0.156,0.198 10 false B 0.635,1.344 1.125,1.552 0.49,0.208 10 false GND 1.625,0.219 1.938,0.417 0.313,0.198 10 false I7
*a Front view of wire harness connector
(to Front Power Window Regulator Motor Assembly RH)


Disconnect the front power window regulator motor assembly RH connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
I7-2 (B) - Body ground Ignition switch off 11 to 14 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I7-1 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Front Door)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

15.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH)
a.

Disconnect the 6F power distribution box assembly connector.


b.

Disconnect the K5 rear power window regulator motor assembly RH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6F-17 - K5-9 (LIN) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

16.CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

16.CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH POWER SOURCE CIRCUIT)
a.
B301170C96
1.552,0.188 1.896,0.427 0.344,0.24 1.021,1.417 1.521,1.146 true 2.458,1.396 1.917,1.146 true 0.104,0.063 0.417,0.26 0.313,0.198 10 false *a 2.563,1.344 2.719,1.542 0.156,0.198 10 false B 0.635,1.344 1.125,1.552 0.49,0.208 10 false GND 1.646,0.229 1.958,0.427 0.313,0.198 10 false K5
*a Front view of wire harness connector
(to Rear Power Window Regulator Motor Assembly RH)


Disconnect the rear power window regulator motor assembly RH connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
K5-2 (B) - Body ground Ignition switch off 11 to 14 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
K5-1 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Rear Door)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

17.CHECK HARNESS AND CONNECTOR (POWER DISTRIBUTION BOX ASSEMBLY - REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH)
a.

Disconnect the 6F power distribution box assembly connector.


b.

Disconnect the L5 rear power window regulator motor assembly LH connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
6F-17 - L5-9 (LIN) Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

18.CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

18.CHECK HARNESS AND CONNECTOR (REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH POWER SOURCE CIRCUIT)
a.
B301170C69
1.552,0.188 1.896,0.427 0.344,0.24 1.021,1.417 1.521,1.146 true 2.458,1.396 1.917,1.146 true 0.104,0.063 0.417,0.26 0.313,0.198 10 false *a 2.563,1.344 2.719,1.542 0.156,0.198 10 false B 0.635,1.344 1.125,1.552 0.49,0.208 10 false GND 1.646,0.229 1.958,0.427 0.313,0.198 10 false L5
*a Front view of wire harness connector
(to Rear Power Window Regulator Motor Assembly LH)


Disconnect the rear power window regulator motor assembly LH connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
L5-2 (B) - Body ground Ignition switch off 11 to 14 V



c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
L5-1 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Click hereVehicle Exterior>WINDOW / GLASS>POWER WINDOW REGULATOR MOTOR (for Rear Door)>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
