RM36D0EC _59 Vehicle Exterior _083108 SLIDING ROOF / CONVERTIBLE _0400985 SLIDING ROOF HOUSING(for Moon Roof) A

SLIDING ROOF / CONVERTIBLE  SLIDING ROOF HOUSING(for Moon Roof)  REMOVAL


CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during sliding roof housing removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function when Necessary Procedures are not Performed Link
Sliding roof ECU (Sliding roof drive gear sub-assembly) Initialize sliding roof system
·

Auto operation function

·

Jam protection function

·

Key-off operation function

·

Key-linked function

·

Wireless transmitter-linked function

·

Sliding roof open warning function

·

Sliding roof may move in reverse or become misaligned


(Click here)
Sliding roof drive cable sub-assembly (Including removal and installation) Initialize sliding roof system
·

Auto operation function

·

Jam protection function

·

Key-off operation function

·

Key-linked function

·

Wireless transmitter-linked function

·

Sliding roof open warning function

·

Sliding roof may move in reverse or become misaligned


(Click here)
Sliding roof glass sub-assembly (Including removal and installation) Initialize sliding roof system
·

Auto operation function

·

Jam protection function

·

Key-off operation function

·

Key-linked function

·

Wireless transmitter-linked function

·

Sliding roof open warning function

·

Sliding roof may move in reverse or become misaligned


(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Lane tracing assist system Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more. (Click here)
Pre-collision system


·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Power back door function Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure Necessary Procedures Effect/Inoperative Function when Necessary Procedures are not Performed Link
Sliding roof ECU (Sliding roof drive gear sub-assembly) Initialize sliding roof system
·

Auto operation function

·

Jam protection function

·

Key-off operation function

·

Key-linked function

·

Wireless transmitter-linked function

·

Sliding roof open warning function

·

Sliding roof may move in reverse or become misaligned


(Click here)
Sliding roof drive cable sub-assembly (Including removal and installation) Initialize sliding roof system
·

Auto operation function

·

Jam protection function

·

Key-off operation function

·

Key-linked function

·

Wireless transmitter-linked function

·

Sliding roof open warning function

·

Sliding roof may move in reverse or become misaligned


(Click here)
Sliding roof glass sub-assembly (Including removal and installation) Initialize sliding roof system
·

Auto operation function

·

Jam protection function

·

Key-off operation function

·

Key-linked function

·

Wireless transmitter-linked function

·

Sliding roof open warning function

·

Sliding roof may move in reverse or become misaligned


(Click here)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

·

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link
Stop and start system Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes). (Click here)
Lane tracing assist system Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more. (Click here)
Pre-collision system


·

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed Necessary Procedures Link

*: w/ Power back door system

Power back door function* Fully close the back door by hand.
HINT:

Initialization is not necessary if the above procedures are performed while the back door is closed.


(Click here)
Power door lock control system If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch. (Click here)
Air conditioning system After the ignition switch is turned to ON, the servo motor standard position is recognized -



PROCEDURE

Hide 1. PRECAUTION

CAUTION:
B475753

Be sure to read Precaution thoroughly before servicing.

·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>PRECAUTION

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>PRECAUTION



NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY


Hide 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:
B394718

·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.



a.

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL


b.

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL


c.

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>REMOVAL


d.

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>REMOVAL


e.

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>REMOVAL


Hide 63218S 3.REMOVE SLIDING ROOF SIDE GARNISH LH

a.

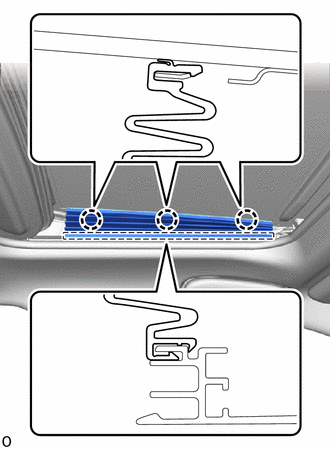

B527448

Detach the 3 claws and guide to remove the sliding roof side garnish LH.


Hide 63217R 4.REMOVE SLIDING ROOF SIDE GARNISH RH

HINT:

Use the same procedure described for the LH side.


Hide 63201P 5.REMOVE SLIDING ROOF GLASS SUB-ASSEMBLY

a.

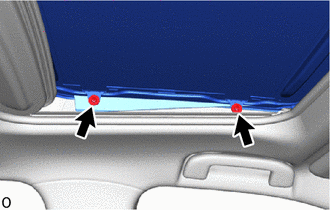

B527449

Move the sliding roof glass sub-assembly to the fully closed position.


b.

Using a T25 "TORX" socket wrench, remove the 2 "TORX" screws and sliding roof glass sub-assembly.

NOTICE:

To prevent the sliding roof glass sub-assembly and sliding roof drive gear assembly from becoming misaligned, move the sliding roof glass sub-assembly to the fully closed position before removing it.


HINT:

Use the same procedure for the RH and LH sides.



Hide 62170A 7.REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 8.DISCONNECT SLIDING ROOF DRAIN HOSE

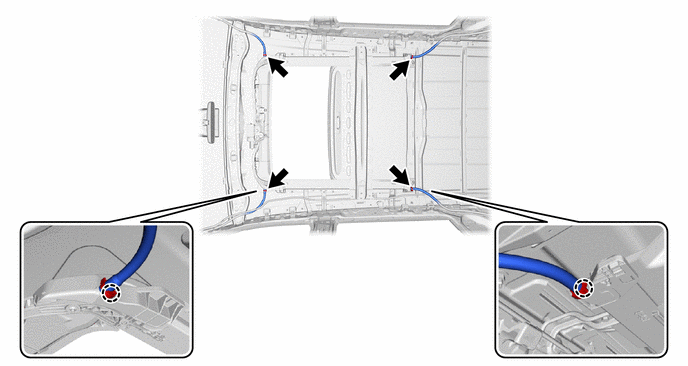

a.

Disengage the claw and disconnect the 4 sliding roof drain hose.

E463804


Hide 63203F 9.REMOVE SLIDING ROOF HOUSING SUB-ASSEMBLY

a.

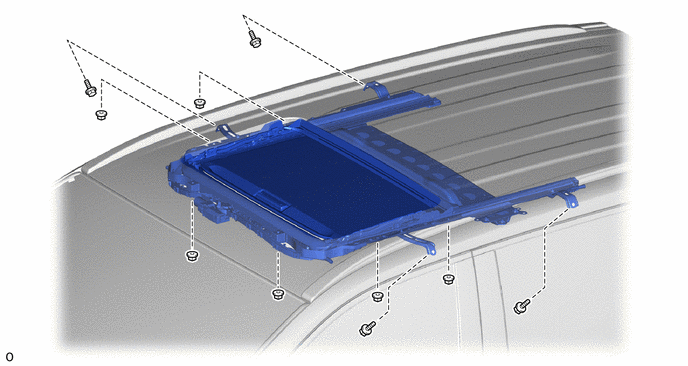

Remove the 4 bolts, 6 nuts and sliding roof housing sub-assembly.

B527451

NOTICE:
B474971

If the removed nut is the same shape as that shown in the illustration, replace it with the supplied replacement part.
