SLIDING ROOF / CONVERTIBLE SLIDING ROOF HOUSING(for Panoramic Moon Roof) REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during sliding roof housing sub-assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Sliding roof ECU (Sliding roof drive gear sub-assembly)	Initialize panoramic moon roof system (Sliding roof)	· Auto operation function · Jam protection function · Key-off operation function · Key-linked function · Wireless transmitter-linked function · Sliding roof open warning function · Sliding roof may move in reverse or become misaligned	(201910,999999,_59,_083108,_0400983,RM100000001JBFV,)
Sliding roof glass sub-assembly (Including removal and installation)	Initialize panoramic moon roof system (Sliding roof)	· Auto operation function · Jam protection function · Key-off operation function · Key-linked function · Wireless transmitter-linked function · Sliding roof open warning function · Sliding roof may move in reverse or become misaligned	(201910,999999,_59,_083108,_0400983,RM100000001JBFV,)
· Sliding roof housing panel (Including removal and installation) · Slide roof rail sub-assembly (Including removal and installation)	Initialize panoramic moon roof system (Sliding roof)	· Auto operation function · Jam protection function · Key-off operation function · Key-linked function · Wireless transmitter-linked function · Sliding roof open warning function · Sliding roof may move in reverse or become misaligned	(201910,999999,_59,_083108,_0400983,RM100000001JBFV,)
· Roof sunshade ECU (sliding roof drive gear assembly) (Including removal and installation) · Sunshade trim sub-assembly (Including removal and installation)	Initialize panoramic moon roof system (Roof sunshade)	· Auto operation function · Jam protection function · Key-linked function · Wireless transmitter-linked function · Key-off operation function · Roof sunshade may move in reverse or become misaligned	(201910,999999,_59,_083108,_0400983,RM100000001JBFV,)

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Lane tracing assist system	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system		(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Power back door function	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)
Replaced Part or Performed Procedure	Necessary Procedures	Effect/Inoperative Function when Necessary Procedures are not Performed	Link
Sliding roof ECU (Sliding roof drive gear sub-assembly)	Initialize panoramic moon roof system (Sliding roof)	· Auto operation function · Jam protection function · Key-off operation function · Key-linked function · Wireless transmitter-linked function · Sliding roof open warning function · Sliding roof may move in reverse or become misaligned	(201910,999999,_59,_083108,_0402649,RM100000001JKIA,)
Sliding roof glass sub-assembly (Including removal and installation)	Initialize panoramic moon roof system (Sliding roof)	· Auto operation function · Jam protection function · Key-off operation function · Key-linked function · Wireless transmitter-linked function · Sliding roof open warning function · Sliding roof may move in reverse or become misaligned	(201910,999999,_59,_083108,_0402649,RM100000001JKIA,)
· Sliding roof housing panel (Including removal and installation) · Slide roof rail sub-assembly (Including removal and installation)	Initialize panoramic moon roof system (Sliding roof)	· Auto operation function · Jam protection function · Key-off operation function · Key-linked function · Wireless transmitter-linked function · Sliding roof open warning function · Sliding roof may move in reverse or become misaligned	(201910,999999,_59,_083108,_0402649,RM100000001JKIA,)
· Roof sunshade ECU (sliding roof drive gear assembly) (Including removal and installation) · Sunshade trim sub-assembly (Including removal and installation)	Initialize panoramic moon roof system (Roof sunshade)	· Auto operation function · Jam protection function · Key-linked function · Wireless transmitter-linked function · Key-off operation function · Roof sunshade may move in reverse or become misaligned	(201910,999999,_59,_083108,_0402649,RM100000001JKIA,)

HINT:

Learning completes when vehicle is driven

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
Stop and start system	Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes).	(202409,999999,_51,_083056,_0402418,RM100000002NSFO,)
Lane tracing assist system	Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 second or more.	(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)
Pre-collision system		(201910,999999,_58,_083101,_0401880,RM100000001JE9I,)

Learning completes when vehicle is operated normally

Effect/Inoperative Function When Necessary Procedures are not Performed	Necessary Procedures	Link
*: w/ Power back door system
Power back door function*	Fully close the back door by hand. HINT: Initialization is not necessary if the above procedures are performed while the back door is closed.	(202304,999999,_59,_083093,_0584672,RM1000000029PGT,)
Power door lock control system	If the back door is locked and therefore cannot be opened, it is necessary to unlock the back door using the door control switch, electrical key transmitter sub-assembly switch.	(202409,999999,_58,_083092,_0403003,RM100000002NS90,)
Air conditioning system	After the ignition switch is turned to ON, the servo motor standard position is recognized	-

PROCEDURE

Hide Display 1. PRECAUTION

CAUTION:: Be sure to read Precaution thoroughly before servicing.; ·

for GTMC Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for GTMC Made)>PRECAUTION202405,999999,_58,_083100,_0694959,RM100000002LV12,

·

for SFTM Made:

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM (for SFTM Made)>PRECAUTION202409,999999,_58,_083100,_0694957,RM100000002NSNT,

NOTICE:: After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal terminal.; Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY202304,999999,_V1,_083041,_0402304,RM100000002AYZV,

Hide Display 2.DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

CAUTION:: ·

Wait at least 60 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

·

If the airbag deploys for any reason, it may cause a serious accident.

for M20C-FKS:

Click hereGeneral>MAINTENANCE>M20C-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0418197,RM100000002NHPI,

for M20D-FKS:

Click hereGeneral>MAINTENANCE>M20D-FKS BATTERY>REMOVAL202409,999999,_V1,_083136,_0403617,RM100000002NHPJ,

for A25B-FXS:

Click hereGeneral>MAINTENANCE>A25B-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0403618,RM100000002NHPL,

for A25D-FXS:

Click hereGeneral>MAINTENANCE>A25D-FXS AUXILIARY BATTERY>REMOVAL202409,999999,_V1,_083136,_0477834,RM100000002NHPM,

for A25F-FXS:

Click hereGeneral>MAINTENANCE>A25F-FXS AUXILIARY BATTERY (Production date from 2021/08)>REMOVAL202409,999999,_V1,_083136,_0486275,RM100000002NHPN,

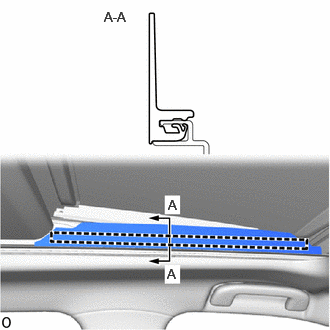

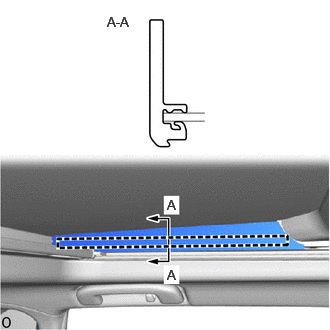

Hide Display 63218M 3.REMOVE SLIDING ROOF SIDE GARNISH LH (for Front Inner Side)

1.083,0.094 1.667,0.438 0.583,0.344 10 false A-A 1.75,2.052 2.042,2.375 0.292,0.323 10 false A 1.74,2.771 2.031,3.094 0.292,0.323 10 false A

Detach the guide and remove the sliding roof side garnish LH.

Hide Display 63217K 4.REMOVE SLIDING ROOF SIDE GARNISH RH (for Front Inner Side)

HINT:: Use the same procedure described for the LH side.

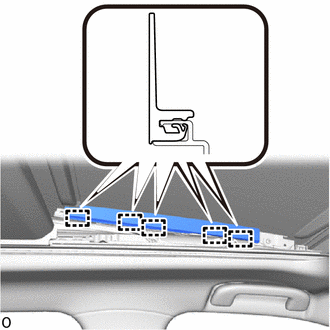

Hide Display 63218R 5.REMOVE SLIDING ROOF SIDE GARNISH LH (for Rear Side)

1.115,0.146 1.844,0.552 0.729,0.406 10 false A-A 1.74,2.052 2.094,2.333 0.354,0.281 10 false A 1.74,2.781 2.094,3.063 0.354,0.281 10 false A

Detach the guide and remove the sliding roof side garnish LH.

Hide Display 63217R 6.REMOVE SLIDING ROOF SIDE GARNISH RH (for Rear Side)

HINT:: Use the same procedure described for the LH side.

Hide Display 63218E 7.REMOVE FRONT SLIDING ROOF GARNISH LH (for Front Outer Side)

Detach the guide and remove the front sliding roof garnish LH.

Hide Display 63217E 8.REMOVE FRONT SLIDING ROOF GARNISH RH (for Front Outer Side)

HINT:: Use the same procedure described for the LH side.

Hide Display 63201P 9.REMOVE SLIDING ROOF GLASS SUB-ASSEMBLY

Move the sliding roof glass sub-assembly to the fully closed position.

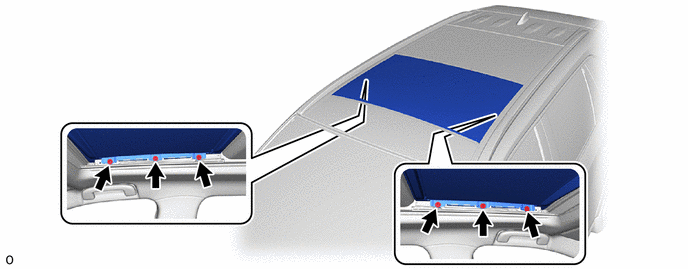

Using a T25 "TORX" socket wrench, remove the 6 "TORX" screws and sliding roof glass sub-assembly.

NOTICE:: To prevent the sliding roof glass sub-assembly and sliding roof drive gear assembly from becoming misaligned, move the sliding roof glass sub-assembly to the fully closed position before removing it.

Hide Display 10.REMOVE ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH

Click hereVehicle Exterior>EXTERIOR PANELS / TRIM>ROOF GARNISH>REMOVAL202304,999999,_59,_083111,_0403080,RM100000002A3TW,

Hide Display 11.REMOVE ROOF SIDE RAIL GARNISH SUB-ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 62180A 12.REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>CURTAIN SHIELD AIRBAG ASSEMBLY>REMOVAL202409,999999,_58,_083100,_0400497,RM100000002NG0F_01_0666,

Hide Display 62170A 13.REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.

Hide Display 63218M 14.REMOVE SLIDING ROOF SIDE GARNISH LH

HINT:: Perform the following procedures if replacing the sliding roof side garnish LH.

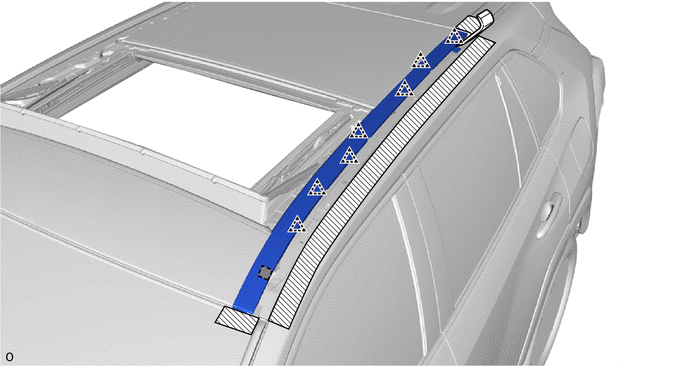

Apply protective tape around the sliding roof side garnish LH and body as shown in the illustration.

0,0 0,0 false

Double-sided Tape

Protective Tape

Using a moulding remover D, detach the clip, double-sided tape and remove the sliding roof side garnish LH.

NOTICE:: Be sure to replace the sliding roof side garnish LH with a new one.

Hide Display 63217K 15.REMOVE SLIDING ROOF SIDE GARNISH RH

HINT:: Use the same procedure described for the LH side.

Hide Display 63242A 16.REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET LH

0,0 0,0 false

	Bolt
	Nut

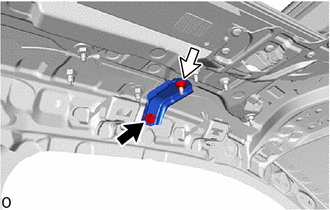

Remove the bolt, nut and front sliding roof housing mounting bracket LH.

NOTICE:: If the removed nut is the same shape as that shown in the illustration, replace it with the supplied replacement part.

Hide Display 63241A 17.REMOVE FRONT SLIDING ROOF HOUSING MOUNTING BRACKET RH

HINT:: Use the same procedure described for the LH side.

Hide Display 63244C 18.REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET LH

0,0 0,0 false

	Bolt
	Nut

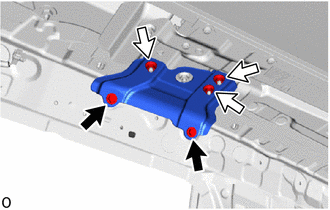

Remove the 2 bolts, 3 nuts and center sliding roof housing mounting bracket LH.

NOTICE:: If the removed nut is the same shape as that shown in the illustration, replace it with the supplied replacement part.

Hide Display 63243C 19.REMOVE CENTER SLIDING ROOF HOUSING MOUNTING BRACKET RH

HINT:: Use the same procedure described for the LH side.

Hide Display 63246D 20.REMOVE REAR SLIDING ROOF HOUSING MOUNTING BRACKET LH

0,0 0,0 false

	Bolt
	Nut

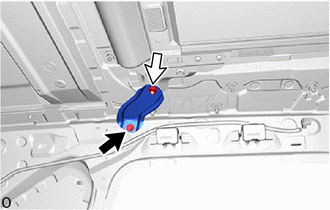

Remove the bolt, nut and rear sliding roof housing mounting bracket LH.

NOTICE:: If the removed nut is the same shape as that shown in the illustration, replace it with the supplied replacement part.

Hide Display 63245D 21.REMOVE REAR SLIDING ROOF HOUSING MOUNTING BRACKET RH

HINT:: Use the same procedure described for the LH side.

Hide Display 63203F 22.REMOVE SLIDING ROOF HOUSING SUB-ASSEMBLY

NOTICE:: ·

Carrying the sliding roof housing sub-assembly from the vehicle must be performed by multiple people.

·

When separating the sliding roof housing sub-assembly, be careful not to damage the paint or interior and exterior ornaments.

0,0 0,0 false

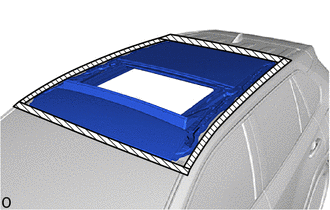

Protective Tape

Apply protective tape to the area around the sliding roof housing sub-assembly on the vehicle body and windshield glass to prevent it from being scratched.

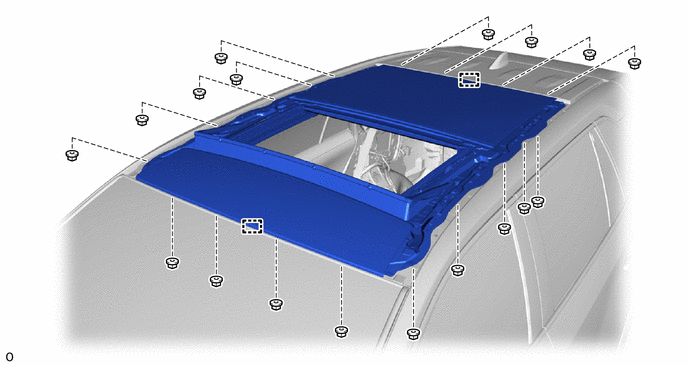

Remove the 18 nuts.

NOTICE:: If the removed nut is the same shape as that shown in the illustration, replace it with the supplied replacement part.

Detach the guide and remove the sliding roof housing sub-assembly.
