RM36D0EC _52 Drivetrain _083071 AXLE AND DIFFERENTIAL _0402907 REAR DIFFERENTIAL CARRIER ASSEMBLY(for Torque Vectoring Differential) A

AXLE AND DIFFERENTIAL REAR DIFFERENTIAL CARRIER ASSEMBLY(for Torque Vectoring Differential) INSTALLATION

PROCEDURE

Hide Display 52391A 1.INSTALL REAR DIFFERENTIAL SUPPORT

Install the rear differential support to the torque vectoring differential carrier assembly with 3 new bolts.

Torque:: 120 N*m (1224 kgf*cm, 89 ft.*lbf)

Hide Display 12351F 2.INSTALL REAR DIFFERENTIAL DAMPER

Install the rear differential damper to the rear No. 2 differential support with the bolt.

Torque:: 20 N*m (204 kgf*cm, 15 ft.*lbf)

Hide Display 52380C 3.TEMPORARILY INSTALL REAR NO. 2 DIFFERENTIAL SUPPORT

Temporarily install the rear No. 2 differential support to the torque vectoring differential carrier assembly with the 2 bolts and 2 nuts.

NOTICE:: ·

Reuse the removed bolt and nut.

·

Be sure to install the No. 2 rear differential support facing the direction shown in the illustration.

HINT:: The nuts have tabs to prevent them from rotating.

Install the 2 upper rear differential mount stoppers to the rear No. 2 differential support.

Hide Display 82164 4.INSTALL FRAME WIRE

Engage the clamp to install the frame wire.

Connect the 2 connectors and breather tube.

Hide Display 5.INSTALL TORQUE VECTORING DIFFERENTIAL CARRIER ASSEMBLY

NOTICE:: ·

Do not damage the contact surface when installing the torque vectoring differential carrier assembly.

·

Securely support the torque vectoring differential carrier assembly while performing this step to avoid excessively tilting or dropping the torque vectoring differential carrier assembly .

·

Install the bolts and nuts with the torque vectoring differential carrier assembly secured.

·

Be careful not to damage the frame wire.

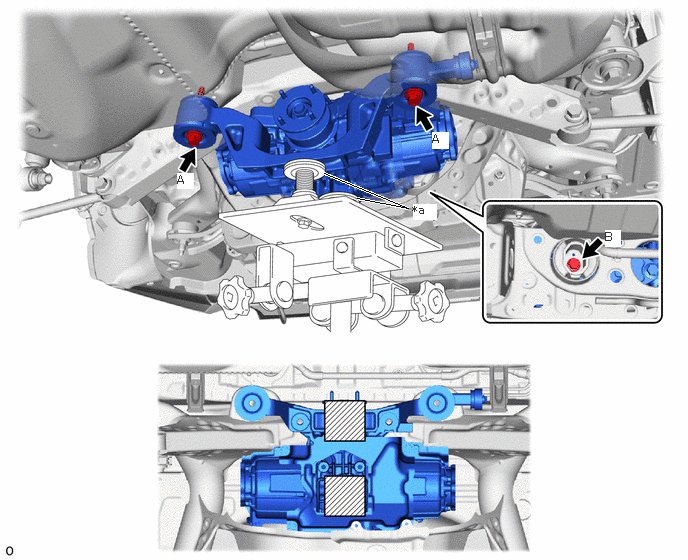

Support the torque vectoring differential carrier assembly with a transmission jack and 2 attachments or equivalent tools as shown in the illustration.

Temporarily install the torque vectoring differential carrier assembly to the rear suspension member sub-assembly with the 2 rear lower differential mount stoppers and 3 new bolts.

3.719,2.063 4.25,2.167 4.25,2.167 3.375,1.802 true 4.292,2.115 4.542,2.281 0.25,0.167 10 true *a 1.844,1.802 2.01,1.969 0.167,0.167 10 true A 4.5,1.375 4.667,1.542 0.167,0.167 10 true A 6.302,2.396 6.469,2.563 0.167,0.167 10 true B

*a	Attachment	-	-
	Attachment Installation Position	-	-

Tighten the 2 bolts (A).

Torque:: 86 N*m (877 kgf*cm, 63 ft.*lbf)

NOTICE:: Do not tighten the bolts with the inner cylinder or rear differential mount cushion tilted.

Tighten the bolt (B).

Torque:: 130 N*m (1326 kgf*cm, 96 ft.*lbf)

NOTICE:: Do not tighten the bolts with the inner cylinder or rear differential mount cushion tilted.

Engage the 7 clamps to install the frame wire.

Pass the connector through the hole to the inside of the vehicle and install the grommet of the frame wire.

Connect the 3 connectors.

Hide Display 52391B 6.INSTALL DIFFERENTIAL SUPPORT

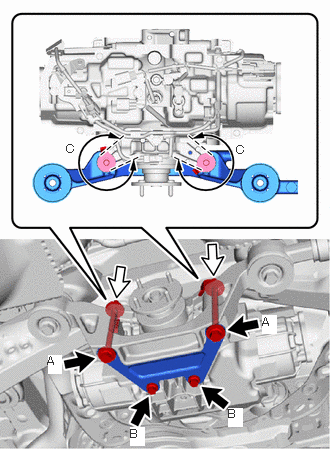

Remove the 2 bolts and 2 nuts.

2.729,3.281 2.885,3.479 0.156,0.198 10 true A 0.49,3.688 0.646,3.885 0.156,0.198 10 true A 2.375,4.24 2.531,4.438 0.156,0.198 10 true B 1.354,4.448 1.51,4.646 0.156,0.198 10 true B 2.458,1.49 2.615,1.688 0.156,0.198 10 false C 0.688,1.479 0.844,1.677 0.156,0.198 10 false C

Temporarily install the differential support to the torque vectoring differential carrier assembly with 2 new bolts (A) and 2 new nuts.
