HEATING / AIR CONDITIONING  CONDENSER(for Gasoline Model)  INSTALLATION

0,0 0,0 false

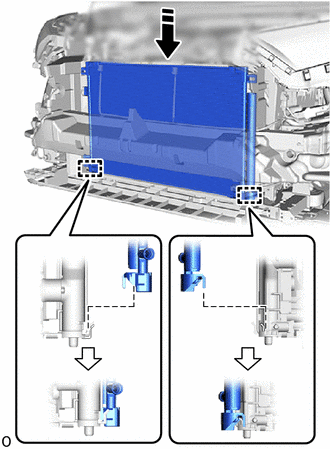

Install in this Direction

Attach the guide to install the cooler condenser assembly.

NOTICE:

Do not damage the cooler condenser assembly or radiator assembly when installing the cooler condenser assembly.

HINT:

If a new cooler condenser assembly is installed, add compressor oil to the condenser as follows.

Capacity:

Add 40 cc (1.35 fl. oz)

Compressor Oil:

ND-OIL 8 or equivalent

Attach the claw.

Attach the upper radiator support sub-assembly to the 2 radiator support cushions and install the upper radiator support sub-assembly with the 4 bolts.

Torque:

12.5 N*m (127 kgf*cm, 9 ft.*lbf)

NOTICE:

When installing the upper radiator support sub-assembly, do not damage the cooler condenser assembly and radiator assembly.

3.323,1.313 3.323,0.979 true 5.813,1.573 5.813,1.24 true 3.24,1.302 3.417,1.479 0.177,0.177 10 true *1 5.719,1.552 5.896,1.729 0.177,0.177 10 true *1

*1

Radiator Support Cushion

-

-

w/ Engine Hood Courtesy Switch

i.

Attach the clamp.

Connect the hood lock control cable assembly to the clamp.

Connect the No. 1 cooler refrigerant discharge hose with the bolt.

Torque:

5.4 N*m (55 kgf*cm, 48 in.*lbf)

NOTICE:

·

Do not apply excessive force to the No. 1 cooler refrigerant discharge hose.

·

Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)

2,1.74 2,1.406 true 1.25,1.781 1.25,1.531 true 1.542,1.396 2.188,0.635 2.188,0.635 1.542,0.844 true 1.917,1.74 2.229,1.896 0.313,0.156 10 false *1 1.167,1.792 1.479,1.948 0.313,0.156 10 false *2 2.219,0.521 2.531,0.677 0.313,0.156 10 false *a

*1	Air Conditioning Tube and Accessory Assembly
*2	Piping Clamp
*a	Groove

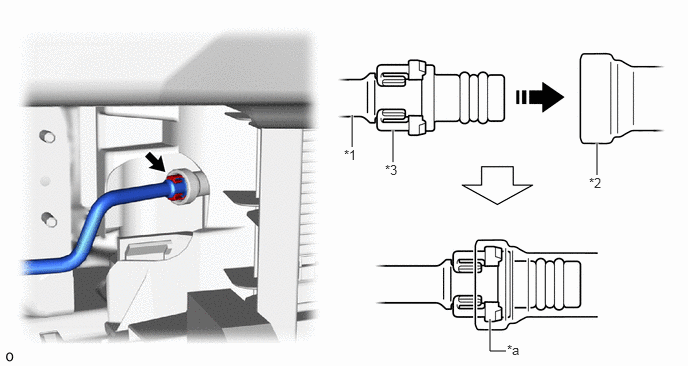

Install a new piping clamp to the air conditioning tube and accessory assembly.

NOTICE:

·

Securely engage the piping clamp to the groove of the air conditioning tube and accessory assembly.

·

Do not open the piping clamp more than the diameter of the air conditioning tube and accessory assembly when installing it.

·

Do not install the piping clamp with the large diameter section facing the wrong direction.

·

Before installing, remove any foreign matter adhered to the fitting area.

Connect the air conditioning tube and accessory assembly to the cooler condenser assembly.

NOTICE:

·

Connect the parts by holding the pipe, not the piping clamp.

·

Do not apply excessive force to the air conditioning tube and accessory assembly.

·

Make sure not to cut the O-ring while installing it. (Cut O-rings cannot be installed)

·

Before connecting, remove any foreign matter adhered to the fitting area.

3.667,1.531 3.667,1.198 true 6.219,1.823 6.219,1.49 true 4.094,1.688 4.094,1.354 true 5.271,3.656 5.104,3.656 5.104,3.656 5.104,3.323 true 3.583,1.531 3.896,1.729 0.313,0.198 10 false *1 6.135,1.823 6.448,2.021 0.313,0.198 10 false *2 4.01,1.688 4.323,1.885 0.313,0.198 10 false *3 5.281,3.563 5.594,3.76 0.313,0.198 10 false *a

*1	Air Conditioning Tube and Accessory Assembly	*2	Cooler Condenser Assembly
*3	Piping Clamp	-	-
*a	Large Diameter Section of Piping Clamp	-	-
	Install in this Direction	-	-
