EXTERIOR PANELS / TRIM  FRONT BUMPER(for Off Road Package)  INSTALLATION


PROCEDURE

Hide 1.INSTALL FRONT BUMPER ASSEMBLY

a.
B525574

Install 2 new clips to the front fender moulding sub-assembly LH.

NOTICE:

If the front bumper assembly has been removed, replace the clip with a new one.


HINT:

Use the same procedure as for the RH and LH sides.



b.

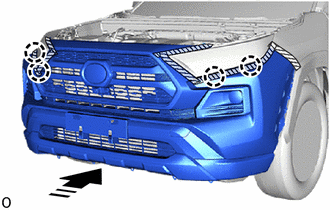

B663565C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to temporarily install the front bumper assembly.


c.

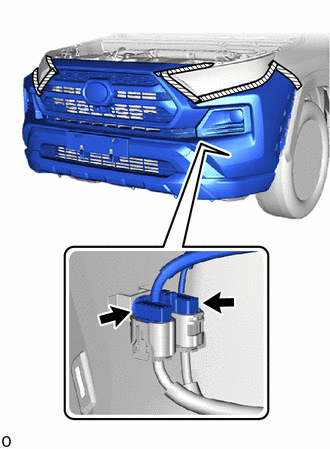

B663563C01
0,0 0,0 false

Connect the 2 connectors.


d.

Install the front bumper assembly to the front bumper side retainer LH.

i.

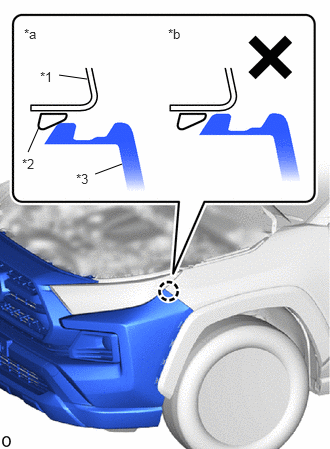

B544783C01
0.99,1.813 1.271,1.708 false 0.615,0.781 0.906,0.823 false 0.292,1.583 0.406,1.323 false 0.25,0.271 0.563,0.469 0.313,0.198 10 false *a 1.75,0.271 2.063,0.469 0.313,0.198 10 false *b 0.417,0.719 0.729,0.917 0.313,0.198 10 false *1 0.229,1.625 0.542,1.823 0.313,0.198 10 false *2 0.792,1.781 1.104,1.979 0.313,0.198 10 false *3
*1 Front Fender Panel
*2 Front Bumper Side Retainer LH
*3 Front Bumper Assembly
*a Correct
*b Incorrect


Make sure that the front bumper assembly claw contacts the front bumper side retainer LH as shown in the illustration.


ii.

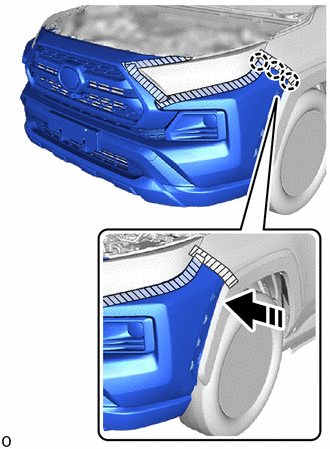

B663562C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the front bumper assembly as shown in the illustration.

HINT:

Use the same procedure as for the RH and LH sides.



iii.

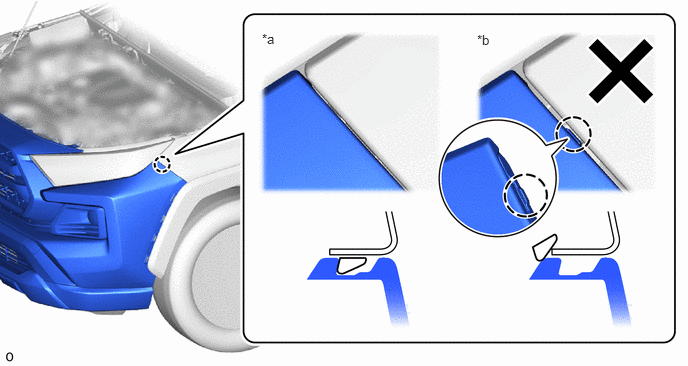

After installation, if there is a clearance and the front bumper assembly claw can be seen as shown in the illustration, the installation condition is incorrect. Perform the procedure from step 1 again.

B544780C01
2.729,0.323 3.104,0.563 0.375,0.24 10 false *a 4.969,0.333 5.344,0.573 0.375,0.24 10 false *b
*a Correct *b Incorrect




e.
B560731

Install the 2 clips.

HINT:

Use the same procedure as for the RH and LH sides.



f.
B526106

Install the 6 screws.


g.
B525990

Install the 4 bolts.


h.

Remove the protective tape.


Hide 75602A 2.INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY LH

a.

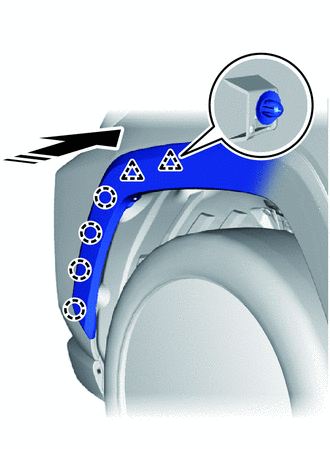

B526130C01
0,0 0,0 false
V113147

Install in this Direction


Attach the clip and claw to install the front fender moulding sub-assembly LH.


b.

Remove the protective tape.


c.

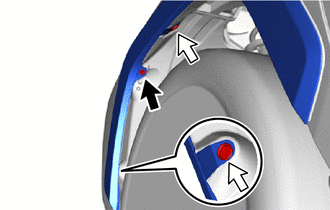

B560730C04
0,0 0,0 false
V100135

Screw
V100136

Clip


Install the screw.


d.

Install the 2 clips.


Hide 75601A 3.INSTALL FRONT FENDER MOULDING SUB-ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 53895B 5.INSTALL FRONT FENDER FRONT SPLASH SHIELD RH

HINT:

Use the same procedure described for the LH side.
