EXTERIOR PANELS / TRIM  FRONT BUMPER(for Type B)  INSTALLATION

Install 2 new clips to the front fender moulding sub-assembly LH.

NOTICE:

If the front bumper assembly has been removed, replace the clip with a new one.

HINT:

Use the same procedure on the other side.

0,0 0,0 false

Install in this Direction

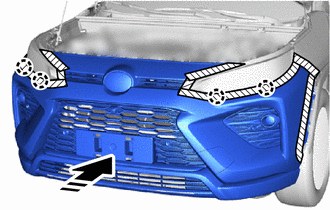

Attach the claw to temporarily install the front bumper assembly.

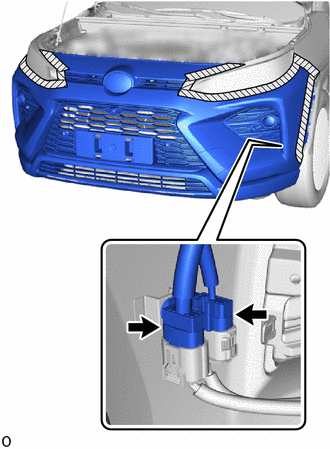

Connect the 2 connectors.

Install the front bumper assembly to the front bumper side retainer LH.

i.

0.99,1.813 1.271,1.708 false 0.646,0.792 0.938,0.833 false 0.385,1.51 0.5,1.25 false 0.313,0.26 0.625,0.458 0.313,0.198 10 false *a 1.75,0.271 2.063,0.469 0.313,0.198 10 false *b 0.458,0.698 0.771,0.896 0.313,0.198 10 false *1 0.26,1.521 0.573,1.719 0.313,0.198 10 false *2 0.792,1.781 1.104,1.979 0.313,0.198 10 false *3

*1	Front Fender Panel
*2	Front Bumper Side Retainer LH
*3	Front Bumper Assembly
*a	Correct
*b	Incorrect

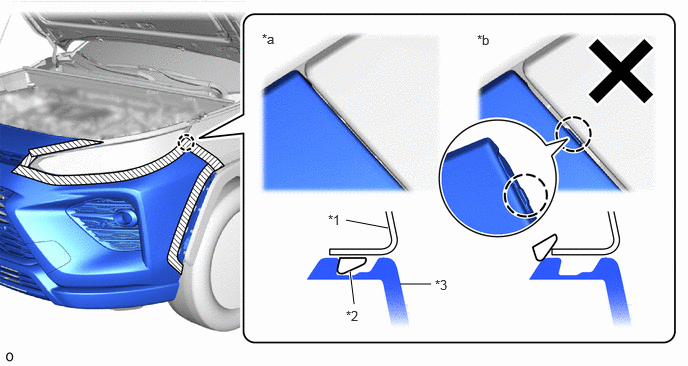

Make sure that the front bumper assembly claw contacts the front bumper side retainer LH as shown in the illustration.

ii.

0,0 0,0 false

Install in this Direction

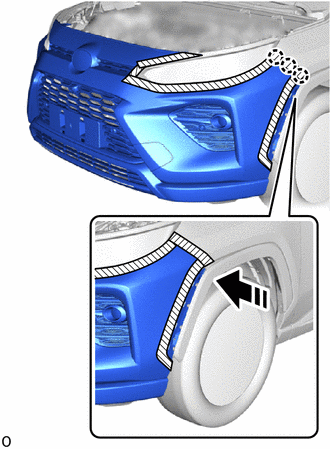

Attach the claw to install the front bumper assembly as shown in the illustration.

HINT:

Use the same procedure on the other side.

iii.

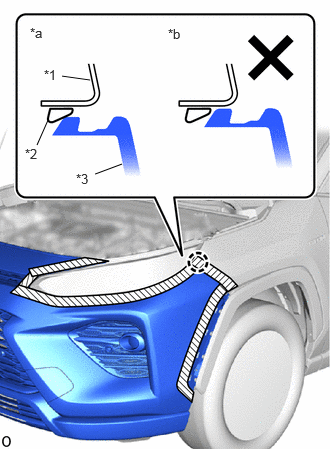

After installation, if there is a clearance and the front bumper assembly claw can be seen as shown in the illustration, the installation condition is incorrect. Perform the procedure from step 1 again.

3.604,2.292 4.042,2.375 false 3.688,3.167 3.646,2.823 true 4.167,2.958 4.49,2.958 false 2.729,0.323 3.104,0.563 0.375,0.24 10 false *a 4.969,0.333 5.344,0.573 0.375,0.24 10 false *b 3.417,2.208 3.792,2.448 0.375,0.24 10 false *1 3.604,3.208 3.979,3.448 0.375,0.24 10 false *2 4.531,2.885 4.906,3.125 0.375,0.24 10 false *3

*1	Front Fender Panel	*2	Front Bumper Side Retainer LH
*3	Front Bumper Assembly	-	-
*a	Correct	*b	Incorrect

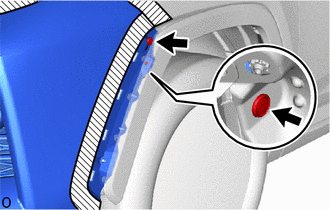

Install the 2 clips.

HINT:

Use the same procedure on the other side.

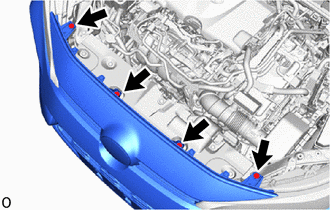

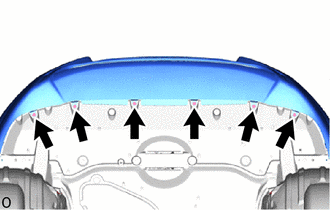

Install the 6 screws.

Install the 4 bolts.
