RM36D0EC _52 Drivetrain _083068 GF2A TRANSFER / 4WD / AWD _0401882 DYNAMIC TORQUE VECTORING AWD SYSTEM C

GF2A TRANSFER / 4WD / AWD DYNAMIC TORQUE VECTORING AWD SYSTEM C05E01C 4WD/AWD Clutch "A" Position Sensor Circuit Range/Performance Circuit Voltage Out of Range

DESCRIPTION

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	Warning Indicate	Memory
C05E01C	4WD/AWD Clutch "A" Position Sensor Circuit Range/Performance Circuit Voltage Out of Range	· The No. 1 4 wheel drive position switch power source voltage malfunction continues for 1.2 seconds or more · The TNF terminal voltage is less than 0.63 V or higher than 4.5 V for 1.2 seconds or more	· Wire harness or connector · No. 1 4 wheel drive position switch · 4WD ECU assembly	Displayed	Yes

DTC Detection Conditions: C05E01C
		Vehicle Condition
		Pattern 1	Pattern 2	Pattern 3
Diagnosis Condition	-	-	-	-
Malfunction Status	The No. 1 4 wheel drive position switch power source voltage malfunction	○	-	-
	The TNF terminal voltage is less than 0.63 V	-	○	-
	The TNF terminal voltage is higher than 4.5 V	-	-	○
Detection Time		1.2 seconds or more	1.2 seconds or more	1.2 seconds or more
Number of Trips		1 trip	1 trip	1 trip

HINT:: DTC will be output when conditions for either of the patterns in the table above are met.

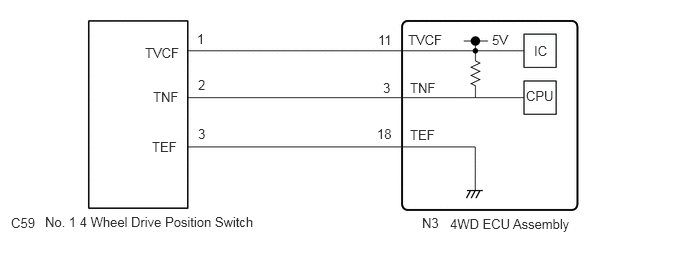

WIRING DIAGRAM

4.396,2.24 4.708,2.438 0.313,0.198 10 false N3 4.688,2.25 6.083,2.573 1.396,0.323 10 false 4WD ECU Assembly 0.469,2.229 3.042,2.667 2.573,0.438 10 false No. 1 4 Wheel Drive Position Switch 0.115,2.24 0.427,2.438 0.313,0.198 10 false C59 1.51,0.469 2.115,0.729 0.604,0.26 10 false TVCF 1.594,0.927 2.198,1.188 0.604,0.26 10 false TNF 1.583,1.448 2.188,1.708 0.604,0.26 10 false TEF 4.25,0.333 4.854,0.594 0.604,0.26 10 false TVCF 4.271,0.833 4.875,1.094 0.604,0.26 10 false TNF 4.271,1.323 4.875,1.583 0.604,0.26 10 false TEF 3.938,0.333 4.26,0.604 0.323,0.271 10 false 11 3.99,0.833 4.313,1.104 0.323,0.271 10 false 3 3.927,1.313 4.25,1.583 0.323,0.271 10 false 18 2.063,1.313 2.385,1.583 0.323,0.271 10 false 3 2.052,0.323 2.375,0.594 0.323,0.271 10 false 1 2.063,0.802 2.385,1.073 0.323,0.271 10 false 2 5.125,0.333 5.448,0.604 0.323,0.271 10 false 5V 5.563,0.448 5.885,0.719 0.323,0.271 10 false IC 5.479,0.917 5.917,1.188 0.438,0.271 10 false CPU

CAUTION / NOTICE / HINT

NOTICE:: ·

When the 4WD ECU assembly is replaced, before removing the 4WD ECU assembly, it is necessary to perform ECU Data Save to save the original 4WD ECU assembly information.

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>DYNAMIC TORQUE VECTORING AWD SYSTEM>CALIBRATION201910,999999,_52,_083068,_0401882,RM100000001JEAV,

·

After performing repairs, clear the DTCs and check that the DTCs are not output again.

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>DYNAMIC TORQUE VECTORING AWD SYSTEM>DTC CHECK / CLEAR201910,999999,_52,_083068,_0401882,RM100000001JEAT,

PROCEDURE

1.INSPECT No. 1 4 WHEEL DRIVE POSITION SWITCH

Turn the engine switch off.

Remove the No. 1 4 wheel drive position switch.

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>TRANSFER ASSEMBLY>REMOVAL201910,202004,_52,_083068,_0402926,RM100000001JLWX,202004,202304,_52,_083068,_0402926,RM100000001MMWY,202304,202405,_52,_083068,_0402926,RM1000000029HBO,202405,202409,_52,_083068,_0402926,RM100000002LVHM,202409,999999,_52,_083068,_0402926,RM100000002OX93,

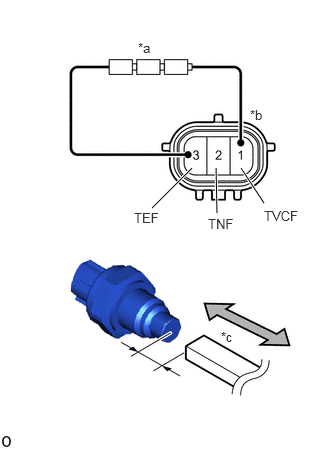

Connect 3 1.5 V dry batteries in series.

1.583,2.167 2,1.75 true 2.51,1.75 2.75,2.115 true 2.25,1.75 2.26,2.219 true 1.438,0.417 1.75,0.615 0.313,0.198 10 false *a 2.302,3.427 2.615,3.625 0.313,0.198 10 false *c 2.604,1.115 2.917,1.313 0.313,0.198 10 false *b 2.75,2.167 3.219,2.469 0.469,0.302 10 false TVCF 1.396,2.188 1.865,2.49 0.469,0.302 10 false TEF 2.167,2.25 2.5,2.5 0.333,0.25 10 false TNF

*a	Dry Batteries
*b	Component without harness connected (No. 1 4 wheel drive position switch)
*c	Piece of metal

Connect terminal 1 (TVCF) to the batteries positive (+) terminal, and terminal 3 (TEF) to the batteries negative (-) terminal.

Move a piece of metal close to the edge of the No. 1 4 wheel drive position switch, and then move it away and check that the resistance changes.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
2 (TNF) - 3 (TEF)	Low (Move piece of metal away)	150 to 620 Ω
2 (TNF) - 3 (TEF)	High (Move piece of metal closer)	1.1 to 6.2 kΩ

Result:

Proceed to
OK
NG

2.CHECK HARNESS AND CONNECTOR (4WD ECU ASSEMBLY - No. 1 4 WHEEL DRIVE POSITION SWITCH)

REPLACE NO. 1 4 WHEEL DRIVE POSITION SWITCH

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>TRANSFER ASSEMBLY>DISASSEMBLY201910,999999,_52,_083068,_0402926,RM100000001JLWZ,

2.CHECK HARNESS AND CONNECTOR (4WD ECU ASSEMBLY - No. 1 4 WHEEL DRIVE POSITION SWITCH)

Turn the engine switch off.

Disconnect the N3 4WD ECU assembly connector.

Disconnect the C59 No. 1 4 wheel drive position switch connector.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
N3-3 (TNF) - C59-2 (TNF)	Always	Below 1 Ω
N3-11 (TVCF) - C59-1 (TVCF)	Always	Below 1 Ω
N3-18 (TEF) - C59-3 (TEF)	Always	Below 1 Ω
N3-3 (TNF) or C59-2 (TNF) - Body ground and other terminals	Always	10 kΩ or higher
N3-11 (TVCF) or C59-1 (TVCF) - Body ground and other terminals	Always	10 kΩ or higher
N3-18 (TEF) or C59-3 (TEF) - Body ground and other terminals	Always	10 kΩ or higher

Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection	Condition	Specified Condition
N3-18 (TEF) or C59-3 (TEF) - Body ground	Always	Below 1 V

Result:

Proceed to
OK
NG

REPLACE 4WD ECU ASSEMBLY

Click hereDrivetrain>GF2A (TRANSFER / 4WD / AWD)>4WD CONTROL ECU>REMOVAL201910,202004,_52,_083068,_0402928,RM100000001JLX7,202004,999999,_52,_083068,_0402928,RM100000001MZ3F,

REPAIR OR REPLACE HARNESS OR CONNECTOR
