M20C-FKS, M20D-FKS ENGINE MECHANICAL CYLINDER HEAD GASKET REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during cylinder head gasket removal/installation are shown below.
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
*: Even when not replacing the part, it is necessary to perform the specified necessary procedures afterinstallation. *1: Also necessary after performing a tire rotation. *2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters areinstalled to the same location. *3: When the starter assembly is replaced, "ST relay" must be also replaced. *4: The vehicle height changes because of suspension or tire replacement. *5: If transaxle compensation code read from ECM *6: If transaxle compensation code not read from ECM |
|||
| Battery terminal is disconnected/reconnected | Reset back door close position | Power Back Door System | ( 202111,999999,_59,_111831,_0505274,RM100000001ZMEG,)
|
| Replacement of ECM | Update ECU security key | Vehicle Control History (RoB) are stored | (202111,999999,_V1,_111780,_0504977,RM100000001ZKRX,)
|
| Perform Vehicle Identification Number (VIN) or frame number registration | DTC is output | (202303,999999,_51,_111785,_0504416,RM1000000029BFA,)
|
|
| Code registration | Engine start | See Service Bulletin for the registration method | |
·
Transfer transaxle compensation code*1 ·
Reset transaxle compensation code*2 ·
CVT oil pressure calibration ·
Perform road test to allow ECM to learn |
·
Large shift shock ·
Deterioration of fuel efficiency |
Initialization:(202409,999999,_56,_111825,_0524148,RM100000002OUWG,)
Registration:( 202303,999999,_52,_111806,_0584611,RM1000000029R1L,)
|
|
·
Replacement of throttle body with motor assembly ·
Cleaning the deposits from the throttle body with motor assembly ·
Replacement of cam timing control motor with EDU assembly* ·
Replacement of camshaft timing gear assembly* ·
Replacement of engine assembly ·
Replacement of cylinder head subassembly ·
Replacement of camshaft (for intake or exhaust camshaft) ·
Replacement of camshaft timing exhaust gear assembly ·
Replacement of port fuel injector assembly ·
Replacement of direct fuel injector assembly ·
Replacement of fuel pump assembly (for high pressure side) ·
Replacement of ignition coil assembly ·
Replacement of Spark plug ·
Replacement of EGR valve assembly ·
Gas leak from exhaust system is repaired |
Inspection after repair | ·
Poor idle, etc. ·
Engine start function, etc. |
(202303,999999,_51,_111785,_0504416,RM1000000029BFF,)
|
| Replacement of Starter assembly*3 | Clear the number of starteroperations | Stop and Start System | (202111,999999,_51,_111803,_0509671,RM1000000020651,)
|
| Replacement of Battery | Integrated current valueinitialization | ||
·
Replacement of Continuously variabletransaxle assembly ·
Replacement of CVT Fluid |
Air bleed the oil pump withmotor assembly | ||
| Replacement of continuously variable transaxle assembly | ·
Input transaxle compensation code into ECM ·
Perform reset memory ·
CVT oil pressure calibration ·
Perform road test to allow ECM to learn |
·
Large shift shock ·
Deterioration of fuel efficiency |
(202303,999999,_52,_111806,_0584611,RM1000000029R1M,)for K121, K121F Initialization
( 202303,999999,_52,_111806,_0584611,RM1000000029R1L,)for K121, K121F Registration
|
| Replacement of CVT fluid | ATF thermal degradation estimate reset | The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly | (202303,999999,_52,_111806,_0584611,RM1000000029R1M,)
|
| Tires | ·
Initialization*1*2 ·
Tire Position Identification*1*2 |
Tire Pressure Warning System | Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below |
| Suspension parts*4 | Parking assist ECU initialization | Panoramic View Monitor System | (202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
|
| Rear television camera assembly optical axis (Back camera position setting) | Parking Assist Monitor System | (202303,999999,_52,_111806,_0584611,RM1000000029R1M,)
|
|
| Front wheel alignment adjustment | ·
Perform reset memory ·
Perform "Calibration" |
·
DTCs are stored ·
ABS warning light illuminates ·
Slip indicator light illuminates ·
Electronically controlled brake system does not operate correctly |
(202203,999999,_54,_111814,_0500728,RM1000000022HI0,)
|
| Front bumper assembly* | Front television camera view adjustment | Panoramic View Monitor System | (202409,999999,_56,_111825,_0500432,RM100000002O1F6,)
|
- HINT:
-
When the cable is disconnected / reconnected to the battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
Items for which learning is completed by driving the vehicle Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Lane Tracing Assist System Drive the vehicle straight ahead at 15 km/h (10 mph) or more for 1 seconds or more. ( 202111,999999,_95,_111850,_0502173,RM100000001Z92I,)
Pre-collision System Stop and Start System dle the engine for approximately 5 to 60minutes or drive the vehicle until stop andstart control is permitted ( 202406,999999,_51,_111803,_0509671,RM100000002KOGF,)
Items for which learning is completed by operating the vehicle normally Effect/Inoperative Function when Necessary Procedure not Performed Necessary Procedure Link Power Door Lock Control System
·Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. ( 202111,999999,_58,_111830,_0505351,RM100000001ZMT3,)
Air Conditioning System After the ignition switch is turned to ON, the servo motor standard position is recognized. -
- NOTICE:
-
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
1.INSTALL ENGINE ASSEMBLY TO ENGINE STAND
2.REMOVE ENGINE HANGERS
16361A
3.REMOVE V-RIBBED BELT
27020
4.REMOVE GENERATOR ASSEMBLY
88310
5.REMOVE COMPRESSOR ASSEMBLY WITH PULLEY
16620D
6.REMOVE V-RIBBED BELT TENSIONER ASSEMBLY
16207
7.REMOVE NO. 2 WATER BY-PASS PIPE SUB-ASSEMBLY
16260
8.REMOVE FLOW SHUTTING VALVE (WATER BY-PASS HOSE ASSEMBLY)
16575B
9.REMOVE NO. 2 WATER HOSE CLAMP BRACKET
10.REMOVE NO. 1 VACUUM TRANSMITTING PIPE SUB-ASSEMBLY
25715
11.REMOVE EMISSION CONTROL VALVE BRACKET
17167
12.REMOVE NO. 1 EXHAUST MANIFOLD HEAT INSULATOR
17118
13.REMOVE MANIFOLD STAY
17141
14.REMOVE EXHAUST MANIFOLD (TWC: Front Catalyst)
22030
15.REMOVE THROTTLE BODY WITH MOTOR ASSEMBLY
22271
16.REMOVE THROTTLE BODY GASKET
25680
17.REMOVE EGR COOLER ASSEMBLY
25601
18.REMOVE NO. 1 EGR PIPE SUB-ASSEMBLY
25620
19.REMOVE EGR VALVE ASSEMBLY
16279
20.REMOVE NO. 3 WATER BY-PASS PIPE
17138B
21.REMOVE INTAKE MANIFOLD STAY
23820
22.DISCONNECT NO. 2 FUEL VAPOR FEED HOSE
17111
23.REMOVE INTAKE MANIFOLD
17177
24.REMOVE NO. 1 INTAKE MANIFOLD TO HEAD GASKET
23910A
25.DISCONNECT FUEL TUBE SUB-ASSEMBLY
23801P
26.REMOVE NO. 1 FUEL PIPE SUB-ASSEMBLY
23100X
27.REMOVE FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY (for High Pressure)
28.REMOVE NO. 1 WATER BY-PASS HOSE ASSEMBLY
23807
29.REMOVE FUEL DELIVERY PIPE SUB-ASSEMBLY
23891
30.REMOVE FUEL DELIVERY SPACER
23291
31.REMOVE INJECTOR VIBRATION INSULATOR
82125N
32.REMOVE NO. 5 ENGINE WIRE
23250F
33.REMOVE PORT FUEL INJECTOR ASSEMBLY
23814B
34.REMOVE FUEL DELIVERY PIPE
23250E
35.REMOVE DIRECT FUEL INJECTOR ASSEMBLY
23255A
36.REMOVE FUEL INJECTOR SEAL
19500
37.REMOVE IGNITION COIL ASSEMBLY
11452D
38.REMOVE ENGINE OIL LEVEL DIPSTICK GUIDE
25860
39.REMOVE PURGE VALVE (PURGE VSV)
15250
40.REMOVE OIL PRESSURE CONTROL VALVE ASSEMBLY
15370
41.REMOVE CAM TIMING OIL CONTROL SOLENOID ASSEMBLY
42.REMOVE O-RING
13090D
43.REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY
13090E
44.REMOVE CAM TIMING CONTROL MOTOR O-RING

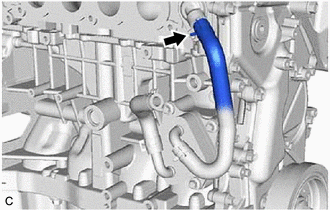

45.DISCONNECT NO. 1 WATER BY-PASS HOSE
Slide the clip and disconnect the No. 1 water by-pass hose from the cylinder block sub-assembly.
16264

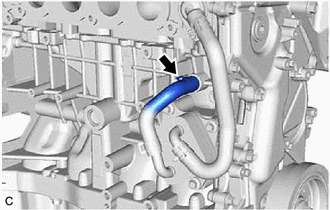

46.DISCONNECT NO. 2 WATER BY-PASS HOSE
Slide the clip and disconnect the No. 2 water by-pass hose from the water by-pass pipe sub-assembly.
29300
47.REMOVE VACUUM PUMP ASSEMBLY
for M20 Series Engine, BOSCH Made:
for M20 Series Engine, except BOSCH Made:
13470
48.REMOVE CRANKSHAFT PULLEY ASSEMBLY
16331
49.REMOVE WATER OUTLET
16305E
50.REMOVE WATER BY-PASS OUTLET SUB-ASSEMBLY
11102A
51.REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)
11102A
52.REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)
11201
53.REMOVE CYLINDER HEAD COVER SUB-ASSEMBLY
11193
54.REMOVE SPARK PLUG TUBE GASKET
12315A
55.REMOVE ENGINE MOUNTING BRACKET RH
11320B
56.REMOVE NO. 2 TIMING CHAIN COVER ASSEMBLY
11301C
57.REMOVE TIMING CHAIN COVER OIL SEAL
58.SET NO. 1 CYLINDER TO TDC (COMPRESSION)
13507A
59.REMOVE OIL PUMP DRIVE CHAIN SUB-ASSEMBLY
13050
60.REMOVE CAMSHAFT TIMING GEAR ASSEMBLY
13506
61.REMOVE CHAIN SUB-ASSEMBLY
13540
62.REMOVE NO. 1 CHAIN TENSIONER ASSEMBLY
13559
63.REMOVE CHAIN TENSIONER SLIPPER
13561
64.REMOVE NO. 1 CHAIN VIBRATION DAMPER
13070A
65.REMOVE CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY
11310
66.REMOVE TIMING CHAIN COVER ASSEMBLY
23477
67.REMOVE FUEL PUMP LIFTER GUIDE
11103
68.REMOVE CAMSHAFT HOUSING SUB-ASSEMBLY
69.REMOVE CAMSHAFT BEARING CAP
13501A
70.REMOVE INTAKE CAMSHAFT SUB-ASSEMBLY
13502B
71.REMOVE EXHAUST CAMSHAFT SUB-ASSEMBLY
13801
72.REMOVE NO. 1 VALVE ROCKER ARM SUB-ASSEMBLY
13750
73.REMOVE VALVE LASH ADJUSTER ASSEMBLY
13716
74.REMOVE VALVE STEM CAP
11101
75.REMOVE CYLINDER HEAD SUB-ASSEMBLY
11115
76.REMOVE CYLINDER HEAD GASKET
Remove the cylinder head gasket from the cylinder block sub-assembly.
11101A
77.INSPECT CYLINDER HEAD SET BOLT
11101
78.INSPECT CYLINDER HEAD SUB-ASSEMBLY
